Product Overview

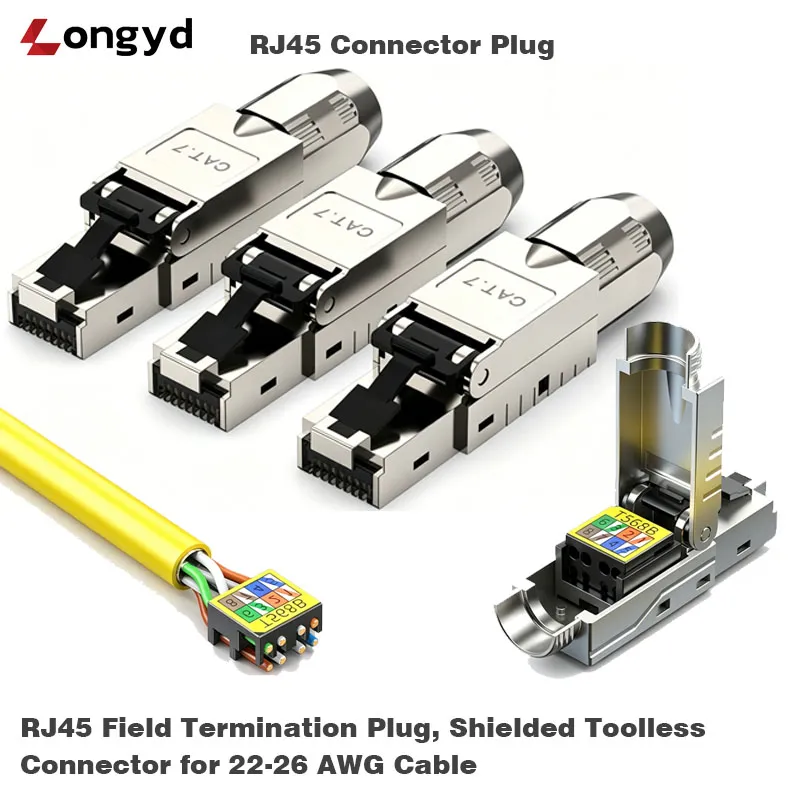

This Cat8 Toolless RJ45 Plug is engineered for high-performance networking environments that demand speed and reliability. With its robust zinc alloy shield, it provides excellent protection against EMI/RFI interference, making it ideal for data centers and professional installations.
Cat8 Toolless RJ45 Plug Key Features & Technical Specifications
| Category | Feature | Technical Specification |
| Material | Housing | Zinc die-casting with nickel plating |
| Contact Material | Phosphor bronze with 100μ” nickel undercoat | |
| Contact Finish | Minimum 50μ” gold plating on surface contact area | |
| Mechanical | Wire Compatibility | 22-26 AWG stranded and solid wire |
| Cable OD Range | 6.5mm to 7.5mm | |
| Insertion Force | 30N max (Compliant with IEC 66003-7-3) | |
| Retention Strength | 7.7 kg between jack and plug | |
| Durability | Mating Cycles | Minimum 750 cycles |
| IDC Installation | Minimum 20 installation cycles | |
| Performance | Network Speed | Supports 25G / 40G Base-T networks |
| Shielding | Zinc alloy shield against EMI/RFI interference | |
| Wiring Schemes | Compatible with T568A & T568B | |
| Environmental | Operating Temp | -10°C to 60°C |
• Material Excellence:
• Housing: Zinc die-casting with nickel plating for maximum durability and shielding.
• Contact Material: Phosphor bronze with 100 micro-inch nickel plated undercoat.
• Contact Finish: Minimum 50 micro-inch gold plated on surface contact area for stable signal transmission.
• Mechanical Performance:
• Wire Compatibility: Suitable for 22-26 AWG stranded and solid wire.
• Cable OD Range: Fits cable jackets with an outer diameter of 6.5mm to 7.5mm.
• Insertion Force: 30N max (complies with IEC 66003-7-3).
• Retention Strength: 7.7 kg between jack and plug.
• Durability:
• Mating Cycles: Minimum 750 cycles.
• IDC Installation: Minimum 20 installation cycles.
• Environmental:
• Operating Temperature: -10°C to 60°C.
• Standards: Compatible with T568A & T568B wiring schemes.
Application
Perfect for field termination in high-speed 25G or 40G Base-T networks, server rooms, and enterprise infrastructure where a reliable, shielded connection is critical.
Frequently Asked Questions
1. What is a Cat8 RJ45 plug used for?
A Cat8 RJ45 plug is designed for high-speed 25G and 40G Base-T networks, making it ideal for data centers, server rooms, enterprise networking infrastructure, and any professional installation requiring maximum bandwidth and minimal latency over copper cabling.
2. What does “tool-less field termination” mean?

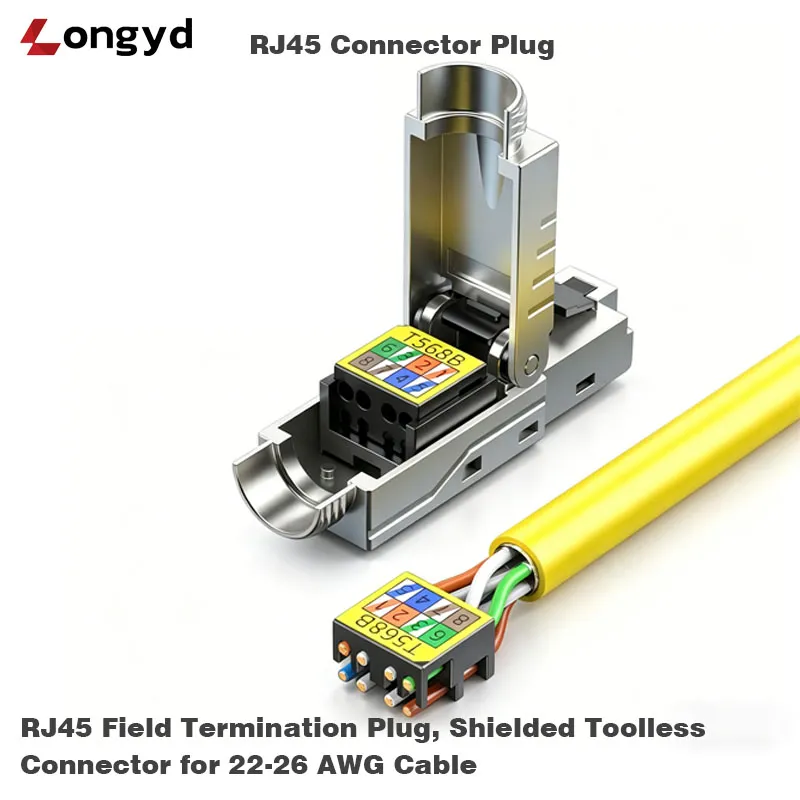

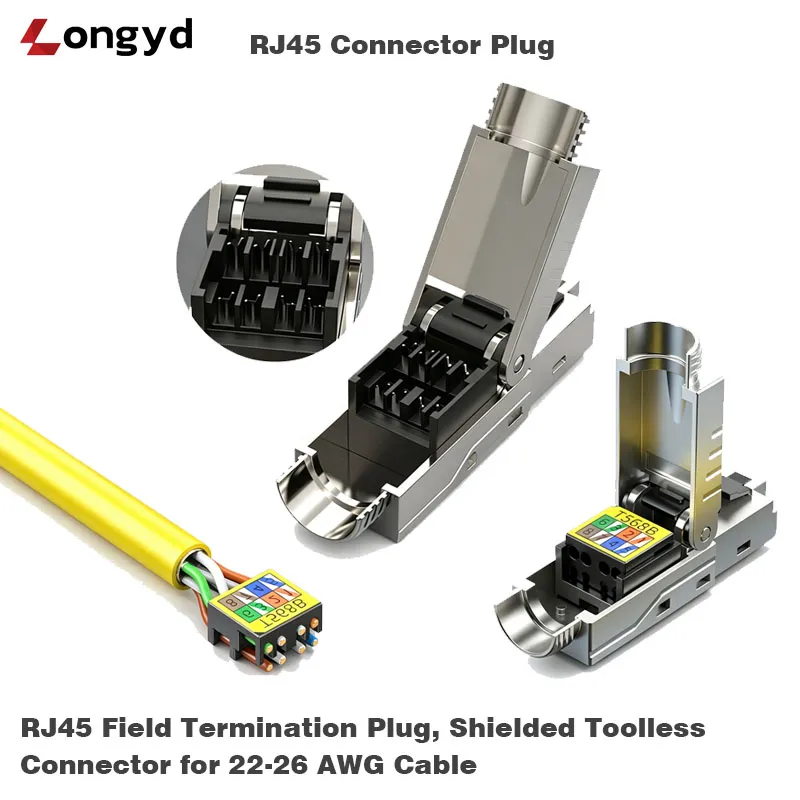

Tool-less field termination means the plug can be assembled without specialized crimping tools. The IDC (Insulation Displacement Contact) design allows installers to terminate wires by simply pressing them into place, significantly reducing installation time and eliminating the risk of improper crimping — especially valuable for on-site deployments.
3. What wire gauge is compatible with this plug?
This Cat8 plug supports 22-26 AWG stranded and solid wires. It also fits cable jackets with an outer diameter of 6.5mm to 7.5mm, covering the majority of Cat7 and Cat8 shielded cables used in high-performance installations.
4. Does this connector support 40 Gbps speeds?
Yes. This plug supports 25G and 40G Base-T networks per the IEEE 802.3bq standard. It is backward compatible with Cat6a (10G), Cat6 (1G), and Cat5e networks, so it can be integrated into existing infrastructure without issue.
5. How does the zinc alloy shielding protect against interference?
The zinc die-casting housing with nickel plating provides a continuous 360-degree shield around the connection point. This effectively blocks electromagnetic interference (EMI) and radio frequency interference (RFI), ensuring signal integrity in environments with high electrical noise such as server rooms and industrial floor networks.
6. Is this plug compatible with T568A and T568B wiring schemes?
Yes. The plug supports both T568A and T568B wiring standards, making it versatile for any structured cabling installation regardless of regional or organizational preference.
7. How durable is the 750 mating cycle rating?
The minimum 750 mating cycles rating, combined with 50µ” gold-plated contacts and a 7.7 kg retention strength, ensures long-term reliability through repeated plug/unplug cycles in active network environments. The IDC contacts support at least 20 re-termination cycles, allowing reuse during reconfigurations.
8. What is the maximum insertion force?
The insertion force is 30N max, in compliance with IEC 66003-7-3. This ensures consistent, reliable connections without damaging the jack or plug hardware, even in high-density patch panel environments.
9. Do you provide technical drawings or datasheets?
Yes. You can request PDF technical drawings and detailed specifications by submitting the form above (click “Download Specifications & Request a Quote”). Our engineering team can also assist with application-specific questions and design support.
10. Can I get a sample or custom configuration?
Absolutely. Samples are available for evaluation, and we support custom configurations including specific cable length assemblies, custom packaging, and bulk pricing. Contact our sales team via the email below to discuss your requirements.
