Vertical USB C Connector 24 Pin Product Overview
The vertical USB C connector 24 pin series is designed for applications requiring a top-entry, space-saving board layout. Featuring a hybrid mounting configuration, the signal pins are tailored for high-precision SMT reflow soldering, while the 4 robust shell legs insert directly into the PCB (Through-Hole/DIP) to provide exceptional mechanical retention. For right-angle PCB mounting solutions, see our M12 right angle PCB connector.

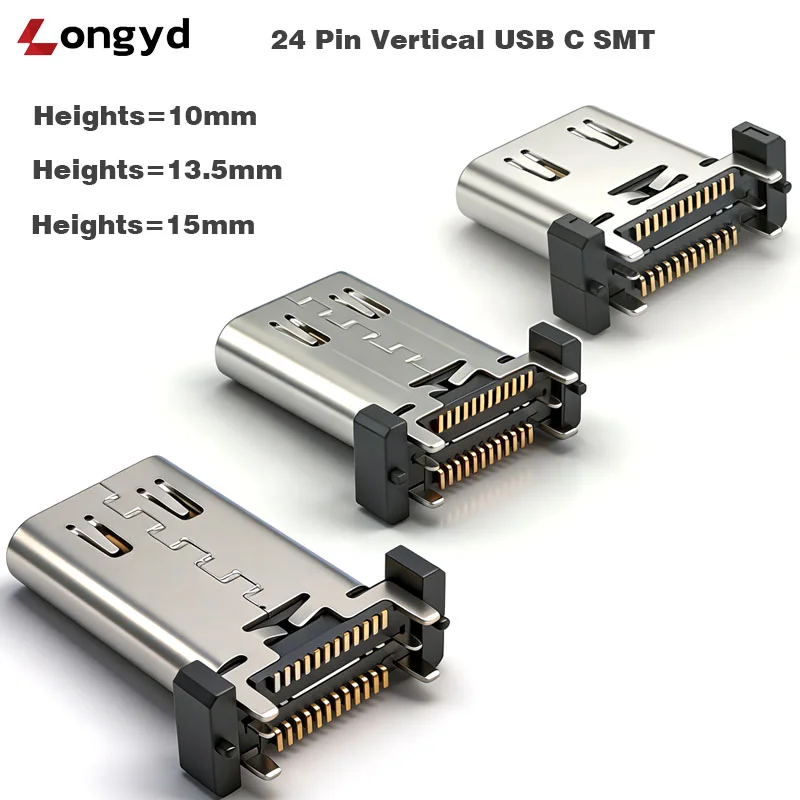

To accommodate diverse enclosure designs and mechanical stacking requirements, this USB Type C vertical female connector is available in three standard profile heights: 10.0mm, 13.5mm, and 15.0mm.
Vertical USB C Connector 24 Pin Technical Specifications
| Parameter | Specification |
| Interface Type | USB Type-C Female (24-Pin Full Featured) |
| Profile Heights | 10.0mm / 13.5mm / 15.0mm |
| Current Rating | 5.0A Max |
| Contact Resistance | ≤ 30m Ohm (Init) / ≤ 40m Ohm (After Test) |
| Insulation Resistance | ≥ 100M Ohm |
| Withstand Voltage | 500V AC / 1 Min |
| Durability | 10,000 Cycles |
| Operating Temperature | -30°C ~ +85°C |
| Shell Material | Stainless Steel (SUS304) |
| Contact Material | Copper Alloy with Gold Plating |
| Mounting | SMT + DIP (4 Shell Legs) |
Product Highlights
- 24-Pin Full Featured: Supports USB 3.2 Gen2, Power Delivery (PD), and DisplayPort Alt Mode through this vertical USB C connector 24 pin design.
- Hybrid Mounting: SMT signal pins + 4 through-hole solder legs provide robust mechanical retention against cable insertion forces.
- High Current Capability: Rated for 5A, making this USB C female SMT connector ideal for fast-charging applications.
- Multiple Height Options: Choose from 10mm, 13.5mm, or 15mm profile heights.
Dimensions
- Product: USB Type-C Female Receptacle, Vertical Type
- Total Length: 8.3mm (without shell legs)
- Shell Width: 9.8mm
- Profile Height: 10.0mm / 13.5mm / 15.0mm
Applications
- Docking Stations and Hubs
- Fast-Charging Power Boards
- Testing and Programming Fixtures
- Industrial Embedded Systems
- Consumer Electronics and IoT Devices
Frequently Asked Questions
What is a vertical USB C connector 24 pin?
A vertical USB C connector 24 pin is a Type-C female receptacle that mounts vertically (perpendicular) to the PCB, allowing top-entry cable connection. The 24-pin configuration supports full USB 3.2 Gen2, Power Delivery up to 5A, and Alt Mode video output.
What mounting heights are available?

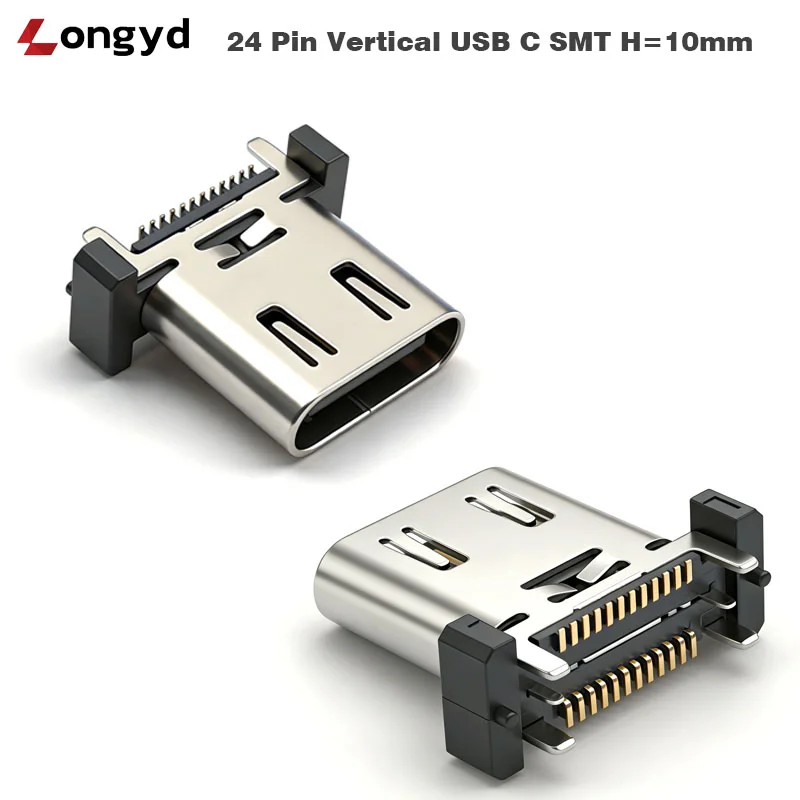

This USB C female SMT connector comes in three heights: 10.0mm (low-profile), 13.5mm (standard), and 15.0mm (tall). The USB-C specification defines the electrical and mechanical standards we comply with.
What is the difference between SMT and hybrid mounting?
Standard SMT connectors rely solely on surface solder joints. This vertical USB C connector 24 pin uses a hybrid approach: signal pins are SMT for precision, while 4 through-hole shell legs provide 3x stronger mechanical retention for high-durability applications. For industrial connector options, browse our full connector range.
Is this connector compatible with USB 3.2?
Yes. This 24-pin full-featured USB C receptacle fully supports USB 3.2 Gen2 (10 Gbps), USB Power Delivery 3.1, and DisplayPort Alt Mode per the USB-IF Type-C specification.
