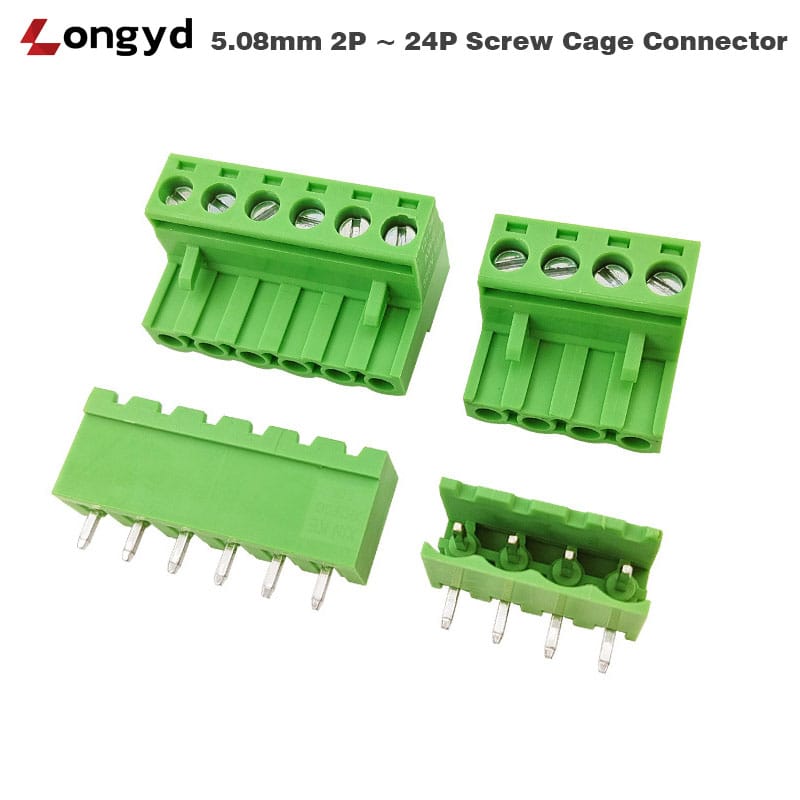

5.08mm Pitch Pluggable Terminal Block System
The 5.08mm Pitch Pluggable Terminal Block System provides a reliable, efficient, and maintenance-friendly wire-to-board connection for industrial electronics, automation systems, and power supplies.
Designed with a high-performance rising clamp (screw cage) mechanism, this connector ensures maximum contact force and vibration resistance, preventing wire damage from repetitive clamping. The pluggable design allows for quick hot-swapping and field wiring without desoldering.

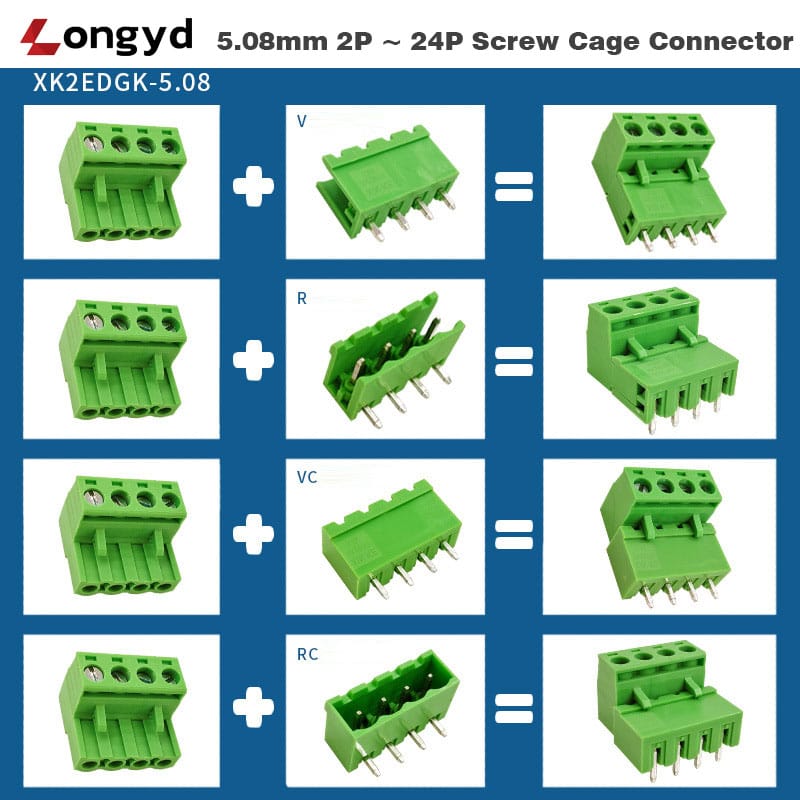

Complete System Components Included:

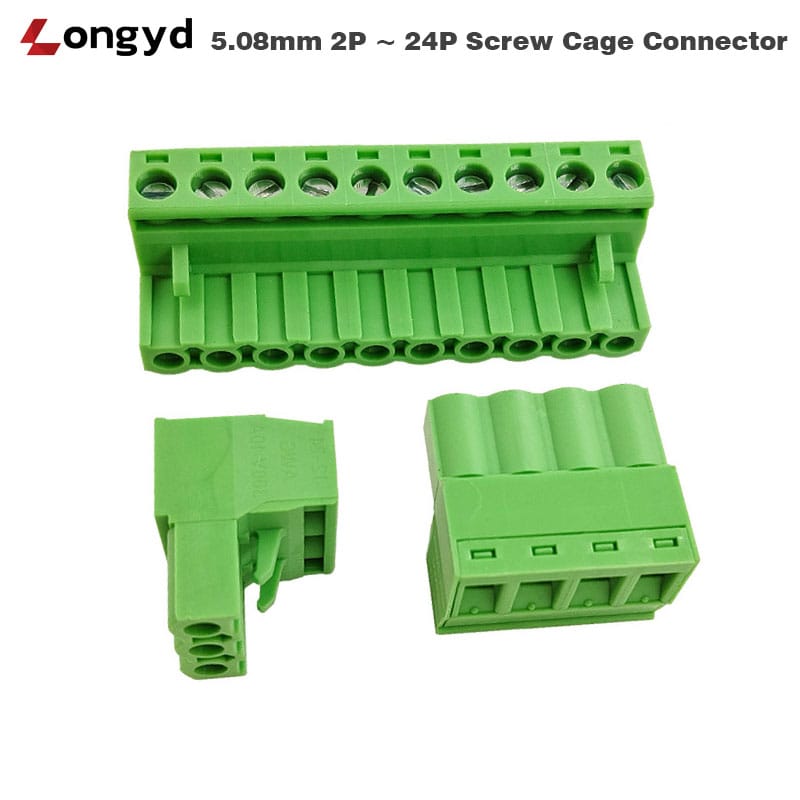

Pluggable Female Plug: Features secure M2.5 screw cage termination.

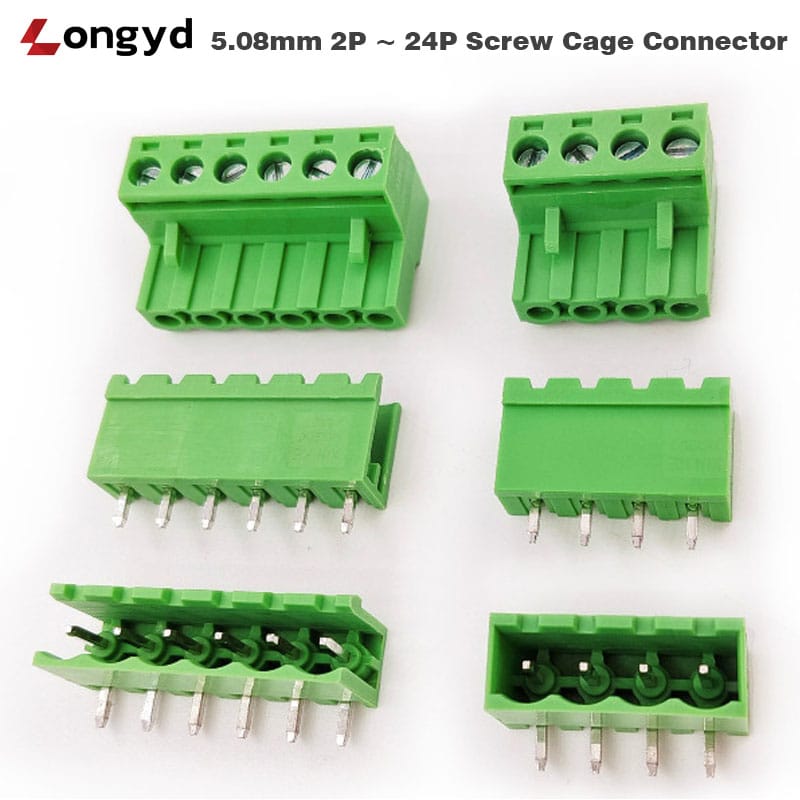

Right-Angle PCB Header (XK2EDGR / XK2EDGRC): Available in standard open ends or shrouded/closed ends for polarization and anti-misinsertion.
Vertical/Straight PCB Header (XK2EDGV / XK2EDGVC): Ideal for space-constrained vertical board-to-wire layouts.
Technical Specifications
| Parameter | Specification |
| Rated Voltage | 300 V |
| Rated Current | 10 A |
| Pitch | 5.08 mm |
| Available Poles | 2P – 24P |
| Wire Range | 24 – 12 AWG |
| Stripping Length | 7 – 8 mm |
| Screw / Torque | 2.5 / 0.4 N.m |
| Withstanding Voltage | 1600V AC / 1 Minute |
| Rated Impulse Voltage | 4.0 KV |
| Insulation Resistance | ≥500ｍΩ |
| Contact Resistance | ≤20ｍΩ |
| Operating Temperature | -40℃ to +105℃ |
Premium Material & Plating
Insulation Housing: High-quality PA66, UL94V-0 (Excellent flame retardant & high-temperature resistance).
Contact Clamp: Phosphor Bronze, Nickel Plated (Ensures optimal elasticity and anti-corrosion).
Terminal Cage Block: Eco-Friendly Iron, Nickel Plated (Provides high torque tolerance and rugged holding strength).
Pin Header: Brass, Tin Plated (Delivers superb solderability and low electrical resistance).
Key Features & Applications
Robust Rising Clamp Technology: Unlike standard leaf-spring types, the rising cage clamp protects fine wire strands while providing a gas-tight connection.
Flexible Scalability: Modular configurations from 2 to 24 positions to fit varied PCB design requirements.
Shrouded Header Options: Prevent mismatching and short circuits during maintenance or field installation.
Industry Applications: Widely used in Industrial Automation, PLC Systems, HVAC Controls, Power Supplies, and Medical Equipment.
FAQ: 5.08mm Pluggable Terminal Blocks
Q1: What is the difference between a rising clamp and a standard leaf-spring terminal block?
A: A rising clamp (screw cage) design utilizes a solid metal elevator mechanism that rises and compresses the wire uniformly against the contact bus bar as the screw is tightened. This provides a gas-tight, high-torque connection that protects fine wire strands from being twisted or damaged by the screw. Standard leaf-spring types simply press a thin metal leaf directly onto the wire with the screw, which offers lower clamping force and is less reliable in high-vibration industrial environments.
Q2: What are the mating options available for these pluggable connectors?
A: This pluggable female connector is designed to pair perfectly with standard 5.08mm pitch male pin headers. Depending on your PCB layout and space constraints, you can choose from:
Right-Angle/Horizontal Headers (XK2EDGR / XK2EDGRC series): Ideal for edge-of-board or side-entry configurations.
Straight/Vertical Headers (XK2EDGV / XK2EDGVC series): Best for space-restricted, vertical top-entry wiring.
Note: Both styles are available in shrouded/closed-end versions to provide alignment polarization and prevent incorrect plugging.
Q3: What is the maximum wire size and electrical capacity this terminal block can handle?
A: * Wire Gauge Range: It accepts solid or stranded wires from 24 AWG down to 12 AWG (up to cross-sectional areas of 2.5mm².
Electrical Ratings: It is rated for a maximum voltage of 300V and a maximum current of 10A.
Dielectric Strength: It features a withstanding voltage of 1600V AC for 1 minute and a rated impulse voltage of 4.0 KV, ensuring excellent surge protection.
Q4: Are these terminal blocks suitable for harsh or high-temperature industrial environments?
A: Yes, absolutely. The insulation housing is made of premium PA66 (UL94V-0), which is highly flame-retardant and maintains mechanical integrity over a wide operating temperature range of –40℃ to +105℃. Additionally, the phosphor bronze contacts are nickel-plated to prevent oxidation and ensure long-term, low-resistance connectivity in humid or corrosive industrial environments.
Q5: What are the recommended torque and stripping specifications for installation?
A: For optimal performance and safety, please adhere to the following installation guidelines:
Wire Stripping Length: Strip the wire insulation back by 7 to 8 mm before insertion.
Screw Size & Tightening Torque: The terminal uses M2.5 steel screws. The recommended tightening torque is 0.4 N.m (3.5lb-in) to ensure a secure clamp without over-tightening.
Q6: Can I order specific pin configurations, such as 3-pin or 5-pin variants?
A: Yes. While the engineering drawings display standard configurations, this product line is fully scalable and modular, available in any position from 2 Poles up to 24 Poles (2P – 24P) to match your specific PCB layout requirements.
Customization Available:
For custom lengths or bulk pricing, please email us:
nick.xu@lyd123.com
