200A Energy Storage Connector

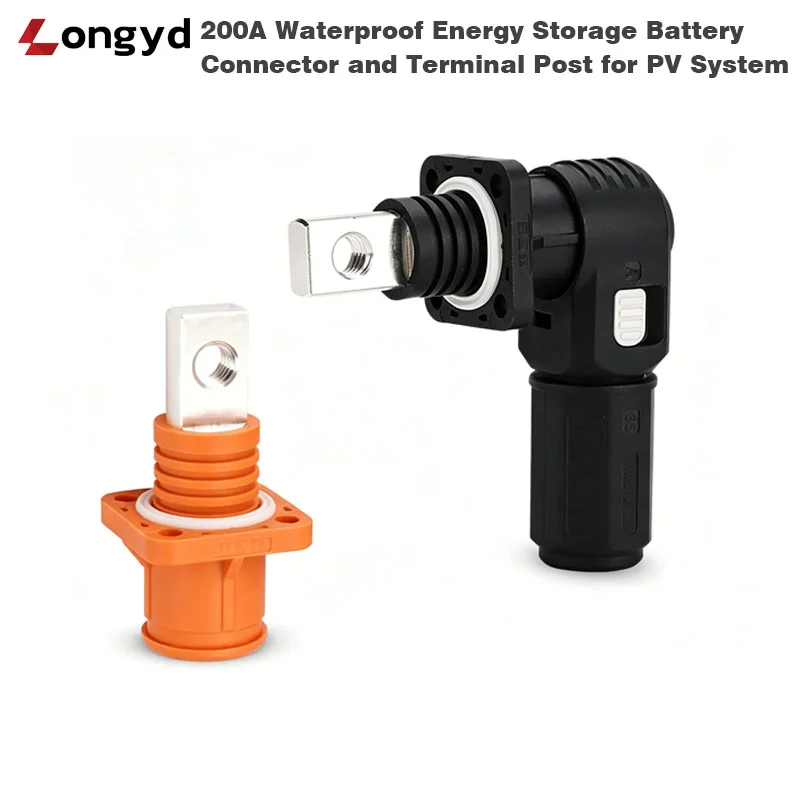

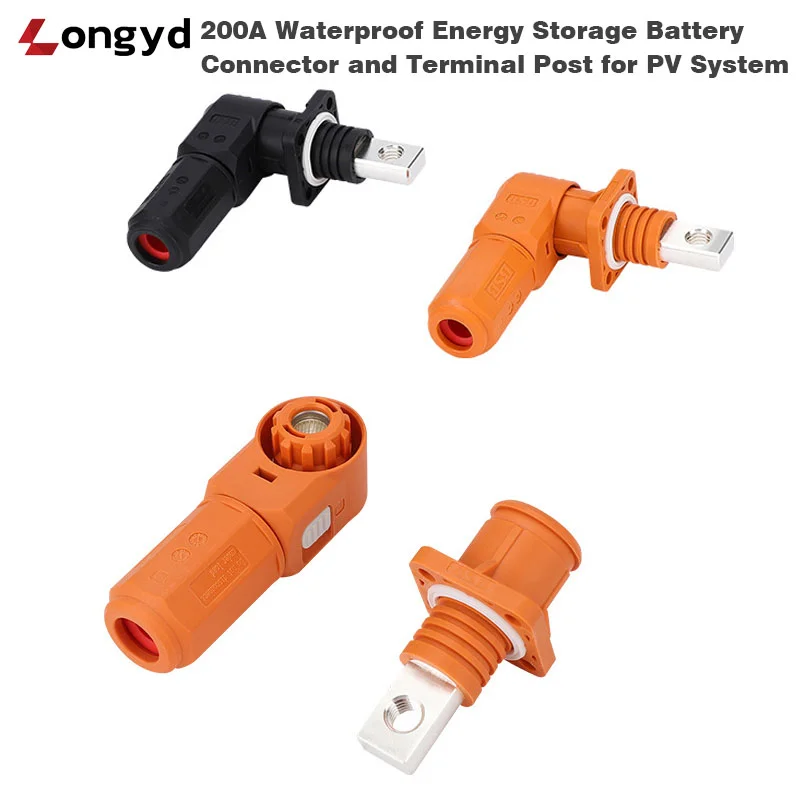

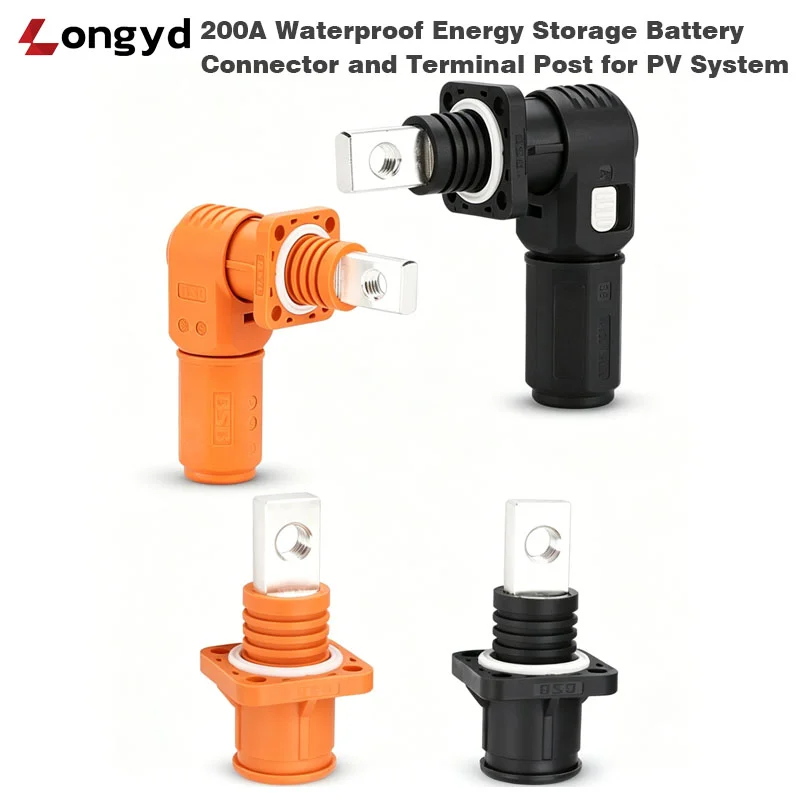

The 200A Energy Storage Connector is a premier industrial-grade single-pole high-current connector built to meet the rigorous demands of grid-scale energy storage systems (ESS), heavy-duty telecom base stations, and electric vehicle battery packs. This high-capacity system utilizes advanced quick-lock mating architecture, enabling rapid field deployment and effortless error-free installation. Once locked securely into position, the right-angle plug can rotate a full 360 degrees to perfectly align with complex cabinet wiring systems without transferring structural stress to the contact interface.
Advanced Product Highlights
- Silver-Plated T2 Copper Terminal Core: The core contact pieces are engineered from pure T2 copper and finished with high-performance silver plating. Silver plating ensures excellent wear resistance, prevents oxidation, and lowers electrical contact resistance significantly under heavy continuous 200A loads.
- 1000VDC System Level Certification: Extensively safety-tested to maintain dielectric stability at over 3000VAC/min, making it fully capable of handling next-generation high-voltage DC battery architectures.
- UL94-V0 Insulated Safety Cover: Molded from premium engineering Polyamide 66 (PA66), the protective enclosure offers extreme durability against impact and will self-extinguish within 10 seconds under thermal hazard criteria.

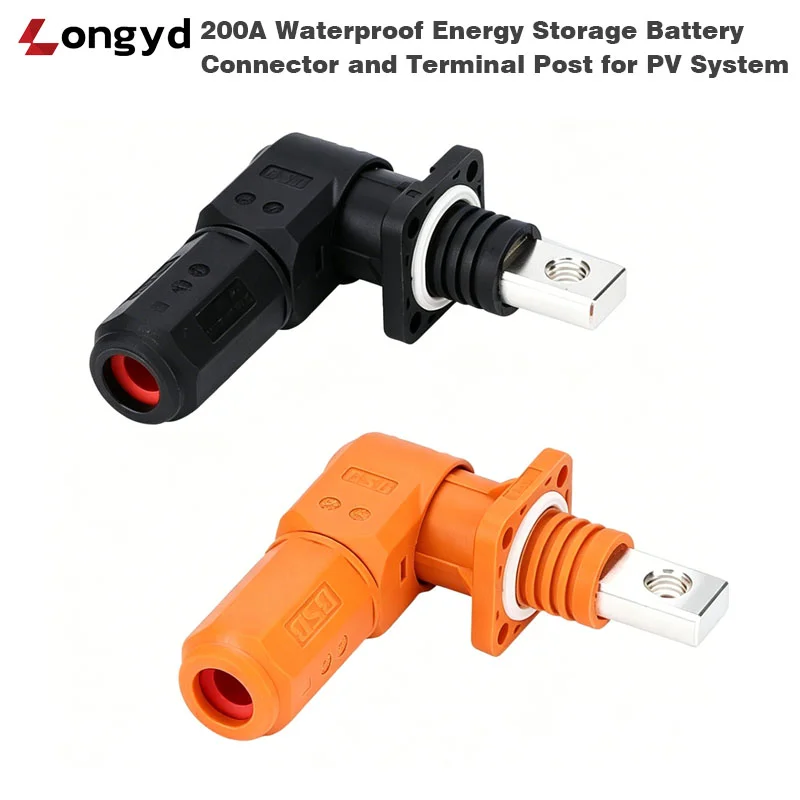

- Clear Polarity Distinction: Available in high-visibility Orange (Positive +) and Black (Negative -) pairings to prevent critical polarity mistakes during multi-module series or parallel configurations.
Detailed Technical Specifications
| Parameter | Specification / Value |
|---|---|
| Product Model / Series | E80-200A / E80-35 Series |
| Rated Continuous Current | 200A Max |
| Rated Working Voltage | 1000VDC |
| Waterproof/Dustproof Grade | IP67 (Fully Sealed State) |
| Flammability Safety Grade | UL94-V0 (Self-Extinguishing Engineering Body) |
| Internal Contact Core Material | High-Purity T2 Purple Copper + Premium Silver Plating |
| External Insulator Shell | Reinforced Thermal-Resistant PA66 Polyamide |
| Dielectric Strength Threshold | >3000VAC / 1 Minute Continuous Run |
| Operational Climate Range | -40°C to 105°C environment compatibility |
| Socket Base Flange Dimension | 33mm x 33mm space-efficient square layout |
Target Markets & Industry Applications
- Grid & Commercial ESS Cabinets: Heavy-duty electrical linking inside high-capacity containerized energy storage infrastructure.
- Electric Vehicles & Machinery: High-amperage terminal linkages for heavy electric buses, forklifts, agricultural EVs, and mining haulers.
- Telecom Base Power: High-reliability DC power backups and infrastructure battery switching networks.
FAQ Section
Q1: Why does the 200A model use silver plating instead of standard nickel plating?
A: At high electrical loads like 200A, electrical resistance becomes a critical factor for safety and efficiency. Silver possesses the highest electrical and thermal conductivity of any metal. Silver-plating the T2 copper core significantly lowers the interface contact resistance, which minimizes heat generation during prolonged full-load continuous operations.
Q2: Is the quick-lock mating button secure enough against high vibrations?
A: Yes. The connector features an integrated structural mechanical latch lock. Once the plug is fully pushed into the socket base, it snaps audibly and locks into place automatically. It cannot be disconnected by pulling on the cable; it requires an intentional human press on the white unlock button, providing total reliability in high-vibration automotive or industrial environments.
Q3: Can the connector handle up to 1000V DC power plants?
A: Absolutely. This product is engineered and certified with a dielectric strength capability of >3000VAC/min and a working system rating of 1000VDC. It is widely used in commercial high-voltage solar configurations and high-voltage lithium battery pack architectures.
Q4: What is the exact cutout layout for the 33mm x 33mm socket base?
A: The base flange profile is 33mm x 33mm. We provide comprehensive mechanical drawing blueprints upon wholesale request. It is designed for flush panel installation and comes with an integrated high-density sealing ring to maintain its IP67 water/dustproof rating against the cabinet panel surface.
Q5: Do you support customized wire harness configurations for wholesale contracts?
A: Yes, we operate a commercial production plant and offer full OEM/ODM manufacturing capability. We can provide custom cable assemblies crimped directly to the plugs with specified wire cross-sections, cable lengths, and custom terminal options for volume industrial orders.
