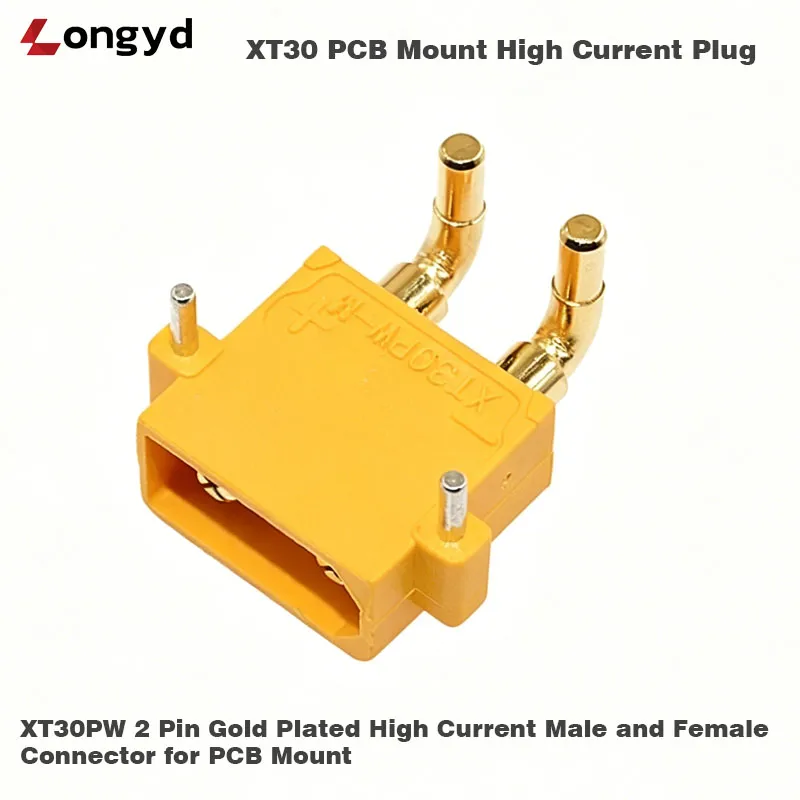

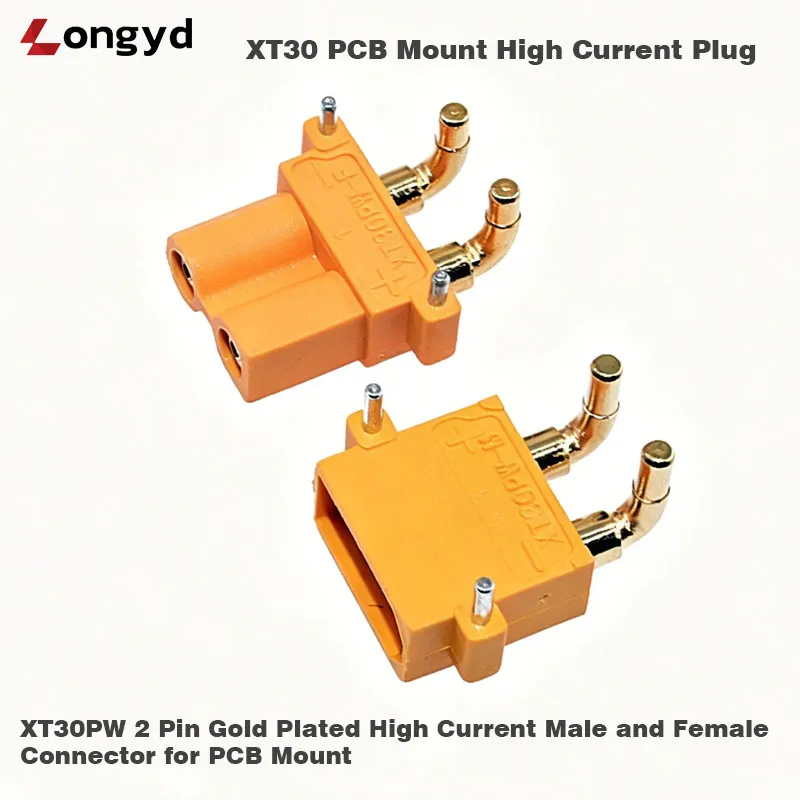

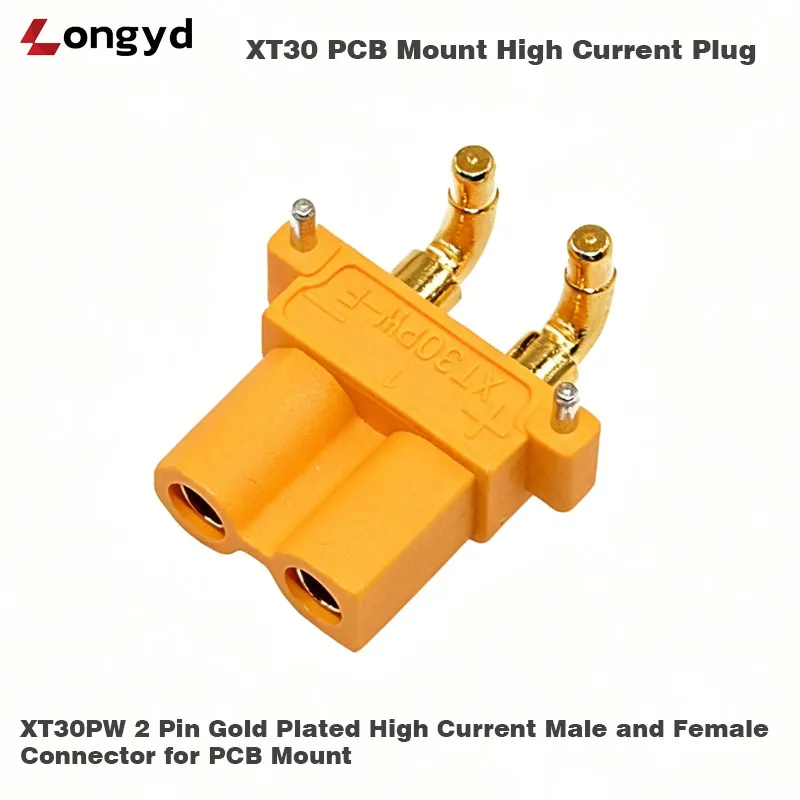

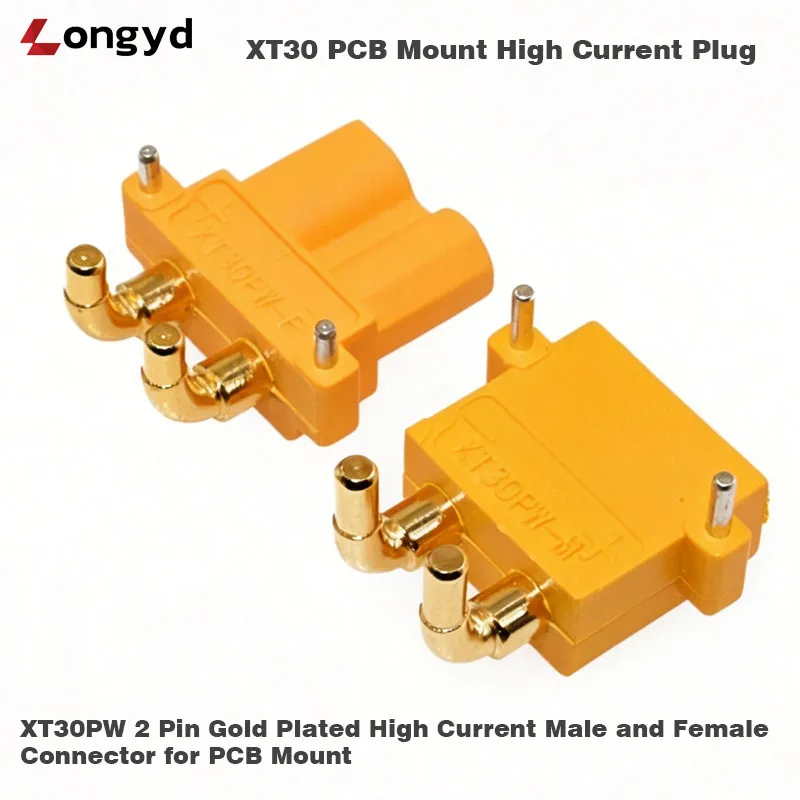

XT30 PCB Mount High Current Plug
Our XT30 PCB Mount High Current Plug, high-current connectors engineered for reliability in demanding environments. Built with a compact footprint, these connectors facilitate secure power distribution directly on the PCB, ensuring a stable connection with minimal resistance.
XT30 PCB Mount High Current Plug Key Technical Features
• Superior Conductivity: Equipped with gold-plated brass contacts providing a low contact resistance of only 0.70mΩ for efficient power transfer.
• High Current Handling: Rated for a continuous current of 15A and an instantaneous burst current of 30A.
• Heat-Resistant Housing: Constructed from high-quality PA66 insulation material with an operating temperature range of -20°C to +120°C.
• Robust Design: Features an anti-spark design and a reliable connection mechanism to prevent accidental disconnections in high-vibration environments.
• PCB Optimized: Specifically designed for right-angle PCB mounting with a recommended footprint for precision alignment.
| Parameter | Value |
| Model | XT30PW-M / XT30PW-F |
| Rated Current | 15A |
| Instantaneous Current | 30A |
| Rated Voltage | DC 500V |
| Contact Resistance | 0.70mΩ |
| Insulation Material | PA / PA66 |
| Contact Material | Gold-plated Brass |
| Compatible Wire Gauge | 18-22 AWG (Male) / 16-20 AWG (Female) |
| Mounting Type | Right Angle PCB Mount |
Why Choose the XT30 PCB Mount High Current Plug?
The XT30 PCB Mount High Current Plug is the upgraded version of the standard XT30, specifically modified for board-level integration. Unlike standard connectors that require pigtail wires, the XT30PW pins solder directly into the PCB traces. This reduces the overall device profile and eliminates potential points of failure associated with wire-to-board connections. The right-angle orientation is particularly beneficial for low-profile enclosures where vertical space is limited.
Installation and Soldering Best Practices
To ensure optimal performance of the XT30 PCB Mount High Current Plug, we recommend using a temperature-controlled soldering station set between 350°C and 380°C. The through-hole pins should be fully seated against the PCB surface before soldering to ensure structural integrity. For high-vibration robotics applications, adding a small amount of non-conductive epoxy at the base of the connector can provide additional mechanical support.
Diverse Applications
RC Equipment: Small-scale drones (FPV), multirotors, and fixed-wing aircraft power systems.
Robotics: Power distribution boards (PDB), motor controllers, and autonomous mobile robots (AMR).
Battery Management: Compact lithium battery packs, BMS modules, and portable charging systems.
Industrial Electronics: Medical devices, compact power supplies, and high-density industrial interfaces.
Learn More about our Connectors
Customization Available:
For custom lengths or bulk pricing, please email us:
nick.xu@lyd123.com
