Cat 6A / Cat 6 Unshielded Tool-less Keystone Jack

Cat 6A / Cat 6 Tool-less Keystone Jack — 10Gbps, No Punch-Down Tool Needed

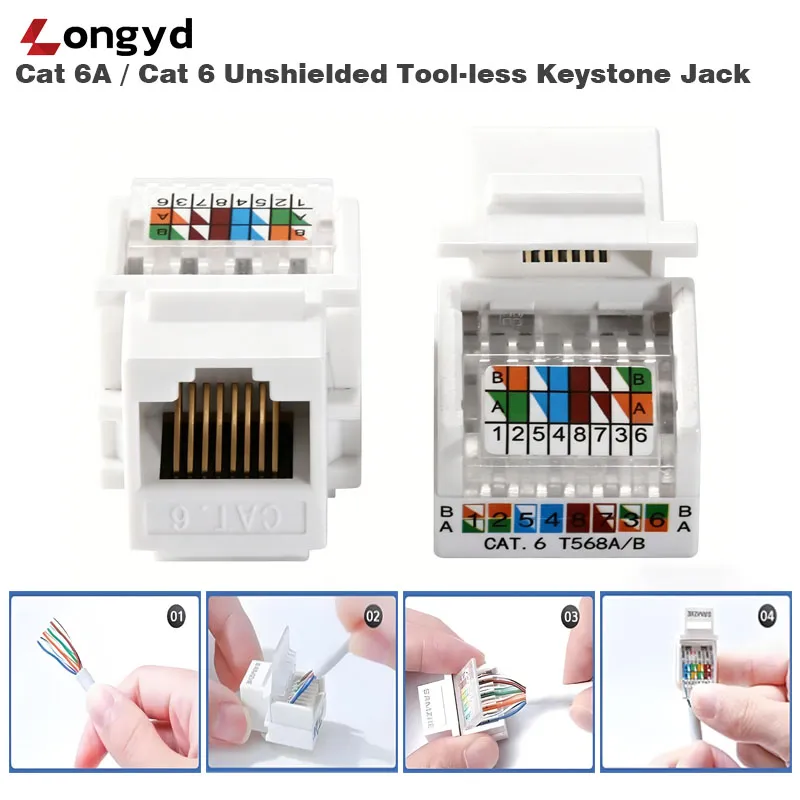

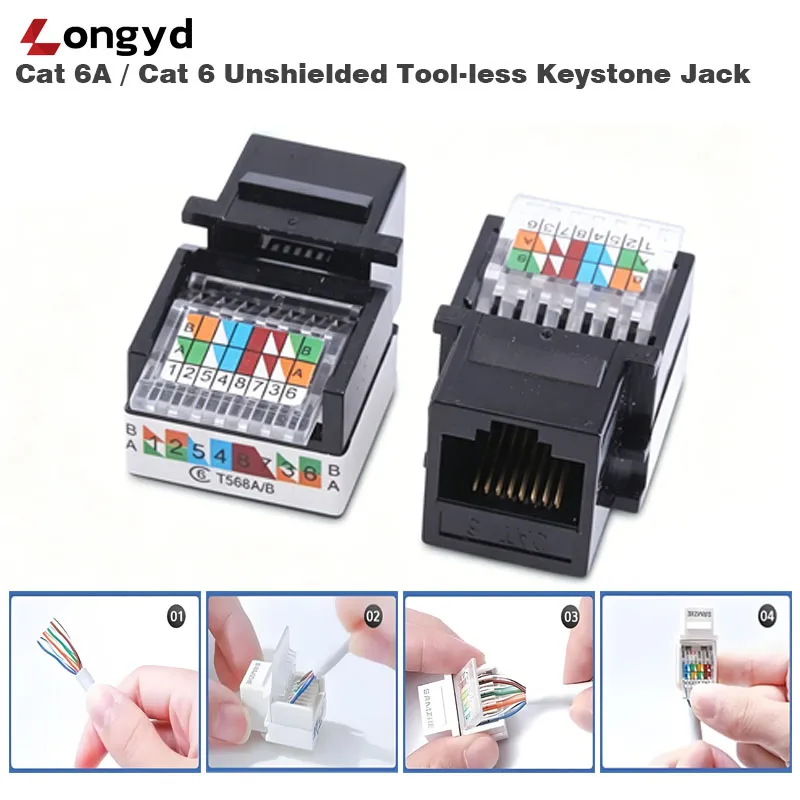

This unshielded tool-less keystone jack is designed for high-density Cat 6A and Cat 6 structured cabling in data centers and enterprise networks. The innovative press-cover design enables rapid termination without a punch-down tool, supporting both T568A and T568B wiring standards.

• 10Gbps Performance: Certified for 500MHz bandwidth, fully compliant with ANSI/TIA-568.2-D and ISO/IEC 11801 for reliable high-speed data transmission.

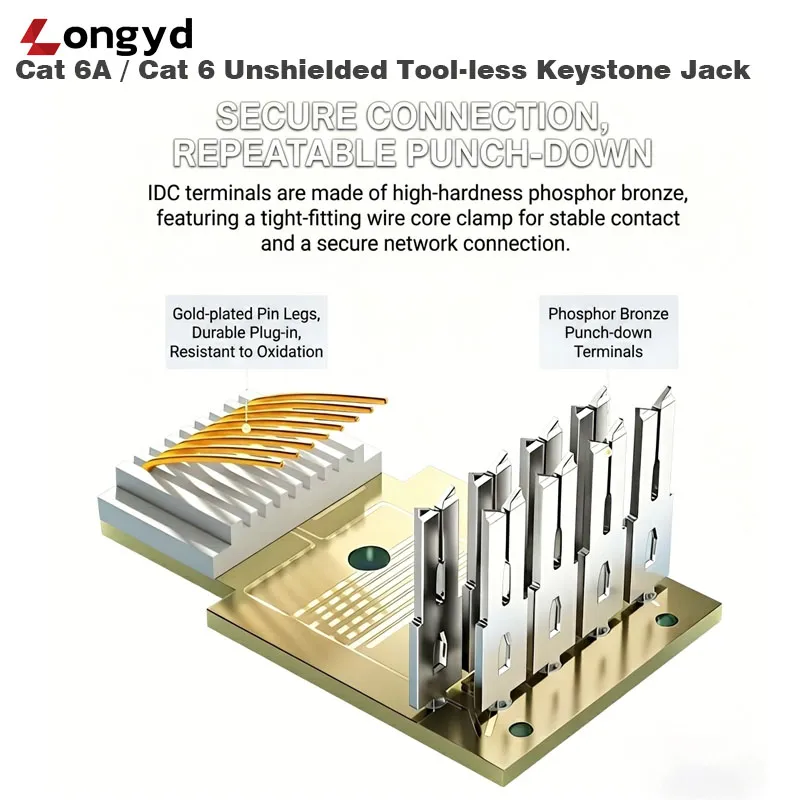

• 50u Gold-Plated Contacts: Phosphor bronze pins with 50 micro-inch gold plating ensure superior conductivity and corrosion resistance for long-term signal integrity.
• Tool-less Termination: Press-cover design reduces installation time by up to 60% compared to traditional punch-down keystone jacks. No impact tool required.
• Industrial-Grade Housing: PC/ABS flame-retardant material (UL 94V-0) ensures long-term stability and safety in demanding environments.
• Universal Compatibility: Fits standard keystone faceplates, patch panels, and surface-mount boxes. Supports 23-26 AWG solid and stranded cable.

Technical Specifications

For technical datasheets, bulk pricing, or custom orders, please contact our engineering team.

Frequently Asked Questions

1. What is the difference between Cat 6A and Cat 6 with this keystone jack?

This keystone jack is certified for both Cat 6A and Cat 6 performance. Cat 6A supports 10Gbps at 500MHz over the full 100-meter channel, while Cat 6 supports up to 250MHz. The jack’s 500MHz bandwidth rating ensures it exceeds Cat 6A requirements, providing headroom for future network upgrades.

2. How does the tool-less press-cover termination work?

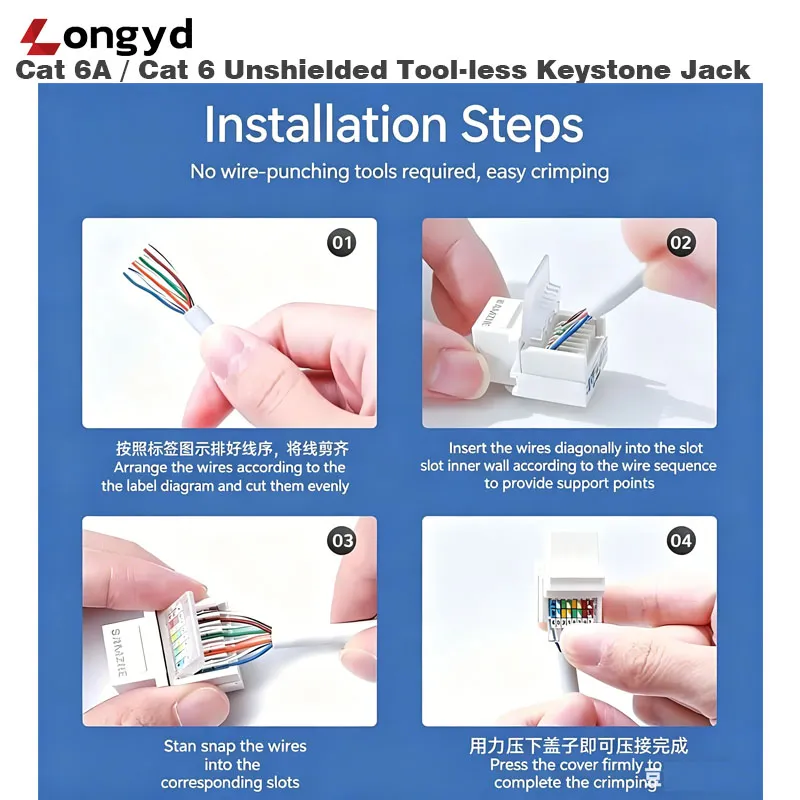

The press-cover design eliminates the need for a punch-down tool. Simply align the color-coded wire pairs (T568A or T568B), press the cover down firmly, and the internal IDC contacts terminate all 8 conductors simultaneously. Installation takes about 20 seconds per jack — up to 60% faster than traditional punch-down keystone jacks.

3. What type of cable is compatible?

This jack supports 23-26 AWG solid and stranded twisted-pair cable, covering the full range of Cat 6 and Cat 6A UTP cables commonly used in structured cabling installations.

4. Does it support 10Gbps (10GBASE-T)?

Yes. With 500MHz bandwidth and compliance with ANSI/TIA-568.2-D and ISO/IEC 11801, it fully supports 10GBASE-T (10Gbps) Ethernet over Cat 6A cabling, as well as lower speeds including 5GBASE-T, 2.5GBASE-T, 1000BASE-T, and 100BASE-TX.

5. Is the 50µ gold plating necessary for performance?

Yes. The 50 micro-inch gold plating on phosphor bronze contacts provides excellent corrosion resistance and maintains stable signal integrity over time. This is especially important in environments with fluctuating humidity and temperature, where lower-grade plating can degrade and cause intermittent connectivity.

6. What wiring standards does it support?

The jack supports both T568A and T568B wiring schemes. Color-coded wire guides are clearly marked inside the termination cap for both standards, allowing installers to terminate according to their preferred wiring scheme without any additional steps.

7. Can this keystone jack be used with standard patch panels and faceplates?

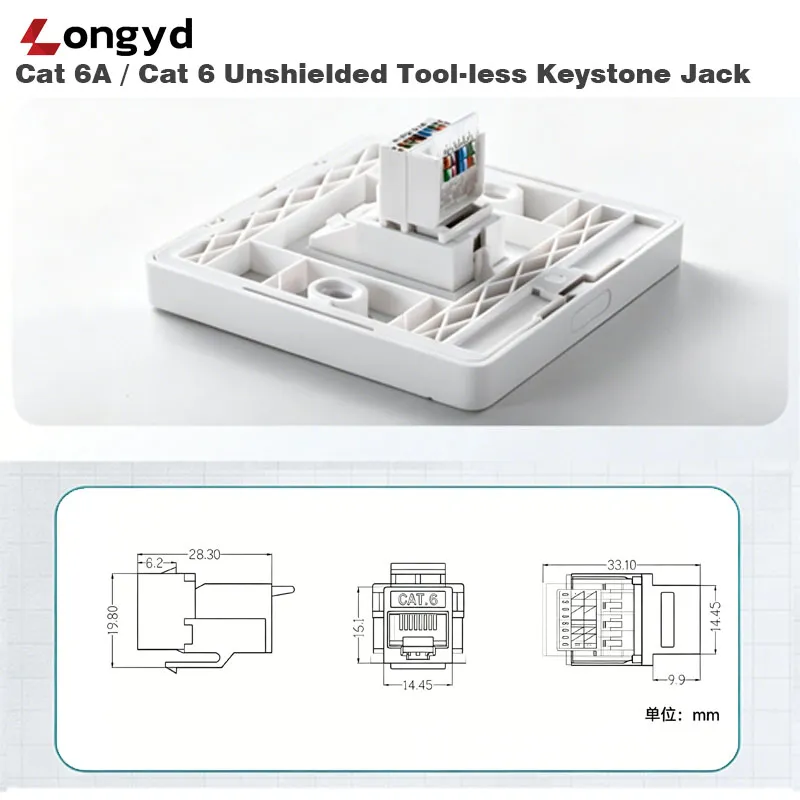

Yes. It conforms to standard keystone dimensions and fits all standard keystone-compatible faceplates, patch panels, and surface-mount boxes, making it suitable for both new installations and retrofits in existing structured cabling infrastructure.

8. What is the housing material and fire rating?

The jack housing is made of PC/ABS material rated UL 94V-0, meaning it self-extinguishes within 10 seconds after ignition with no dripping of burning particles. This makes it suitable for use in plenum spaces and other fire-code-regulated environments.

9. Is this jack compatible with both solid and stranded cable?

Yes. The IDC contacts are designed to terminate both solid and stranded 23-26 AWG conductors, providing flexibility for different cabling scenarios — solid for permanent links (riser, backbone, horizontal) and stranded for patch cord applications.

10. Do you provide technical datasheets and samples?

Yes. Request PDF datasheets and technical drawings using the form above (click “Download Specifications & Request a Quote”). Samples are available for evaluation. Contact our sales team via the email below for sample requests, custom configurations, and bulk pricing.
