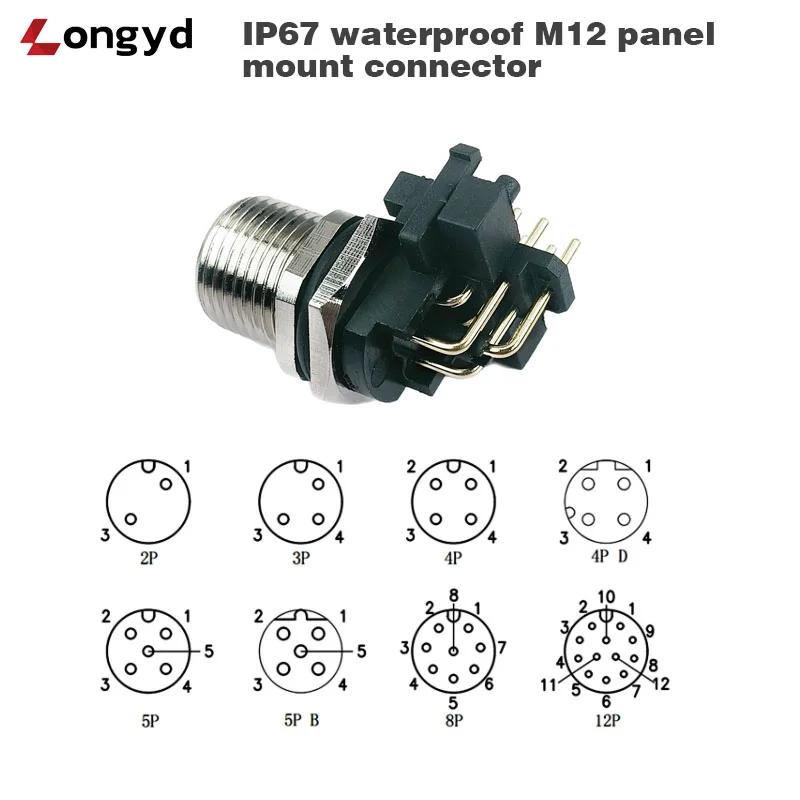

IP67 M12 Right Angle Connector Product Overview
Our IP67 M12 right angle connector is engineered for heavy-duty industrial automation and sensor applications. As a leading M12 industrial sensor connector manufacturer, our 90-degree design enables secure PCB mounting with IP67 waterproof protection. For smaller form-factor applications, explore our M8 PCB panel mount connector series.
Key Features
- Space-Saving Design: The right-angle (90 degree) orientation of our IP67 M12 right angle connector reduces installation depth for compact enclosures.
- Broad Compatibility: Available in A, B, C, D coding with 2-17 pins for industrial standards per IEC 60529 IP67 specifications.
- IP67 Waterproof Rating: FKM O-ring and PA carrier ensure dust/water protection.
- Premium Materials: Gold-plated copper alloy contacts with nickel-plated housing.

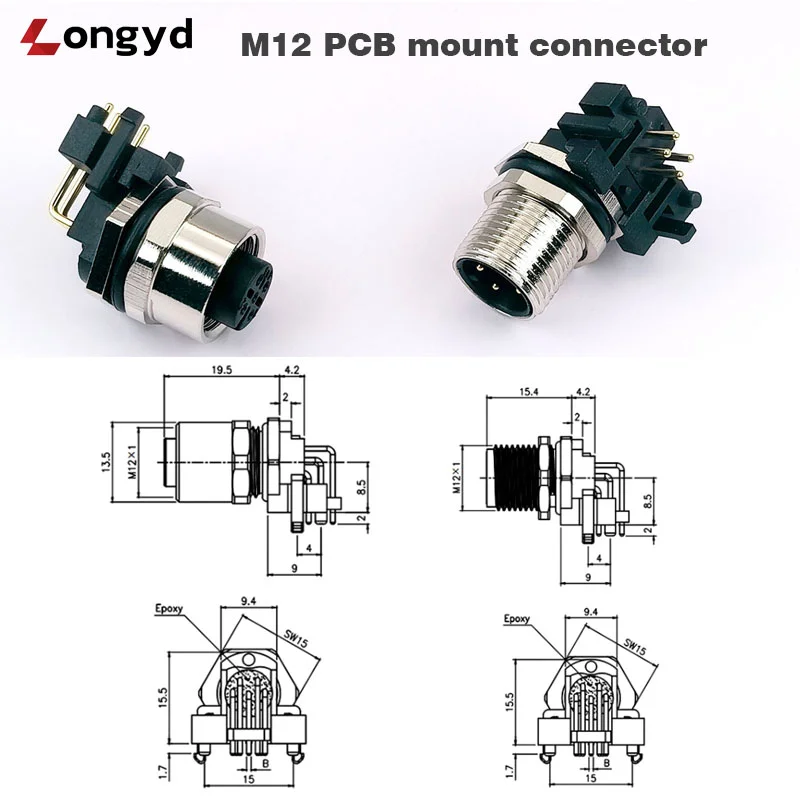

IP67 M12 Right Angle Connector Technical Specifications
Complete technical parameters for our M12 industrial sensor connector:
| Parameter | Specification |
| Insulation Resistance | ≥ 100M Ohm |
| Contact Resistance | ≤ 10m Ohm |
| Ambient Temperature | -40°C ~ +105°C |
| IP Class | IP67 |
| Mating Endurance | > 100 Cycles |
| Connector Carriers | PA |
| Connector Contacts | Copper Alloy, Gold Plated |
| Connector Nut/Screw | Copper Alloy, Nickel Plated |
| Seal / O-Ring | FKM (Fluororubber) |
| Shielding | Unshielded |
| Termination | Solder Type (PCB Mount) |

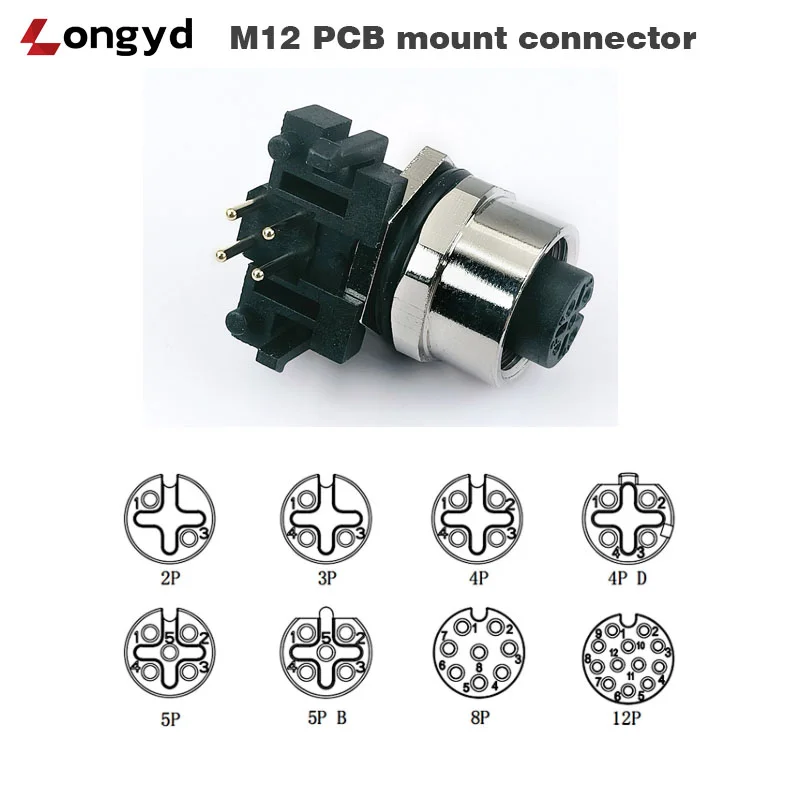

Coding and Electrical Data Reference
- A-Coding (2/3/4/5 Pin): 250V / 60V, 4A
- A-Coding (6/8 Pin): 30V, 2A
- A-Coding (12/17 Pin): 30V, 1.5A
- B-Coding (4/5 Pin): 250V / 60V, 4A
- C-Coding (3/4/5/6 Pin): 250V / 60V / 30V, 4A / 2A
- D-Coding (4 Pin): 250V, 4A (Industrial Ethernet)
Applications
- Industrial Sensors and Actuators
- Factory Automation and Process Control
- Industrial Ethernet and Fieldbus Systems (Profinet, CANopen, DeviceNet)
- CCTV and Outdoor LED Display Panels
Frequently Asked Questions
What is an IP67 M12 right angle connector?
An IP67 M12 right angle connector is a circular 12mm threaded industrial connector with a 90-degree PCB mount design. The IP67 rating means it is fully dust-tight and protected against temporary water immersion, making it ideal for factory automation sensors.
What coding options are available?
This M12 industrial sensor connector is available in A-Coding (general sensor/signal), B-Coding (Fieldbus), C-Coding (dual-keyway), and D-Coding (Industrial Ethernet). See IPC-A-620 standards for wiring requirements.
Can I use this M12 connector with the M8 PCB panel mount connector in the same system?
Yes. Many automation systems combine both sizes. Use our M8 PCB panel mount connector for compact sensor heads and the M12 for actuators and power distribution. For vertical USB-C connections, see our USB C SMT connector.
Customization Available:
For custom lengths or bulk pricing, please email us:
nick.xu@lyd123.com
