IP67 Waterproof 200A Busbar Terminal Post | 600VAC Heavy-Duty Power Stud

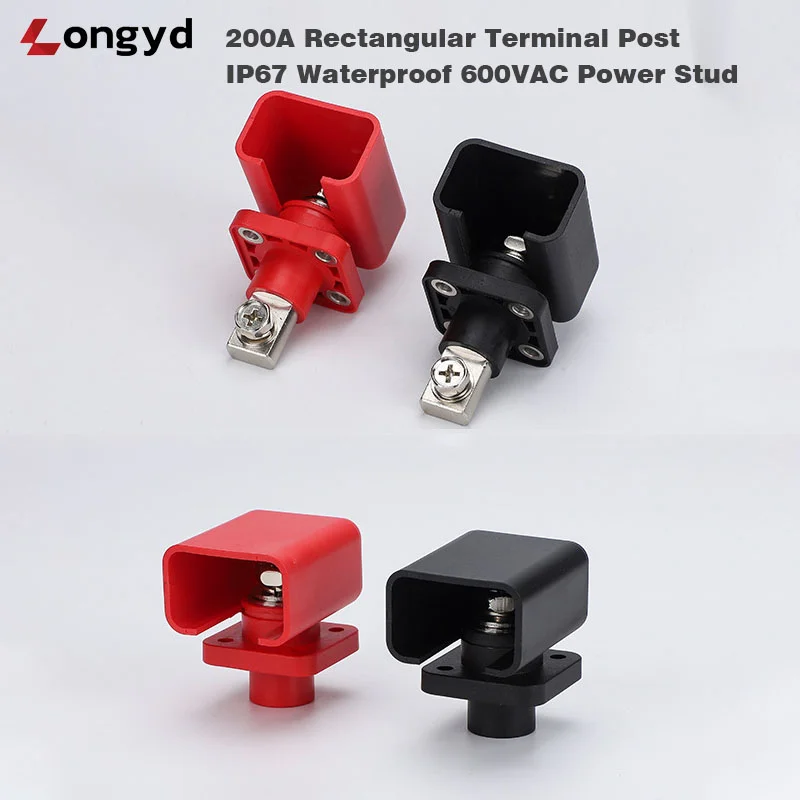

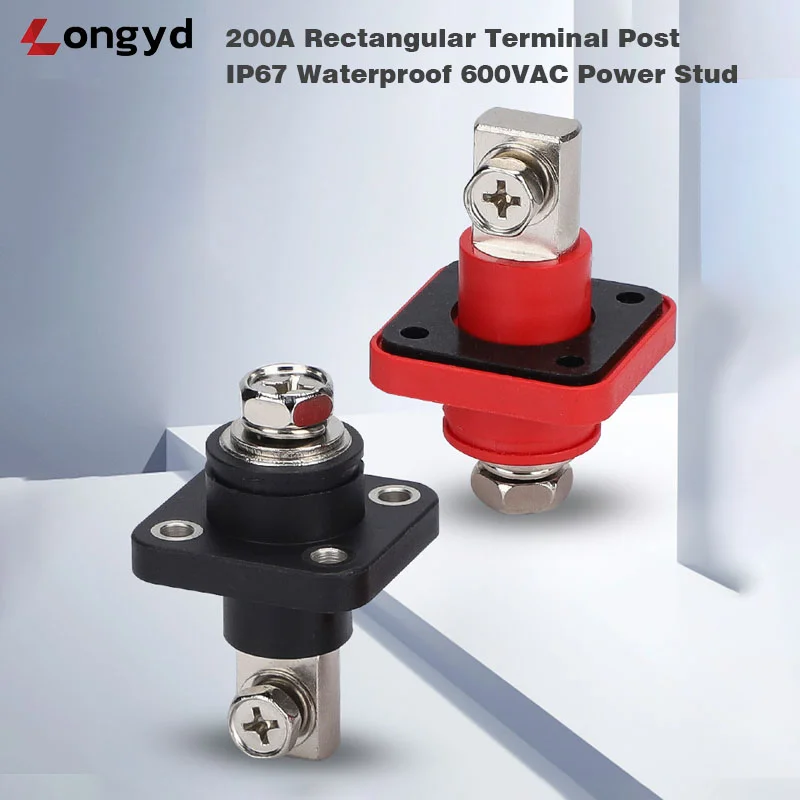

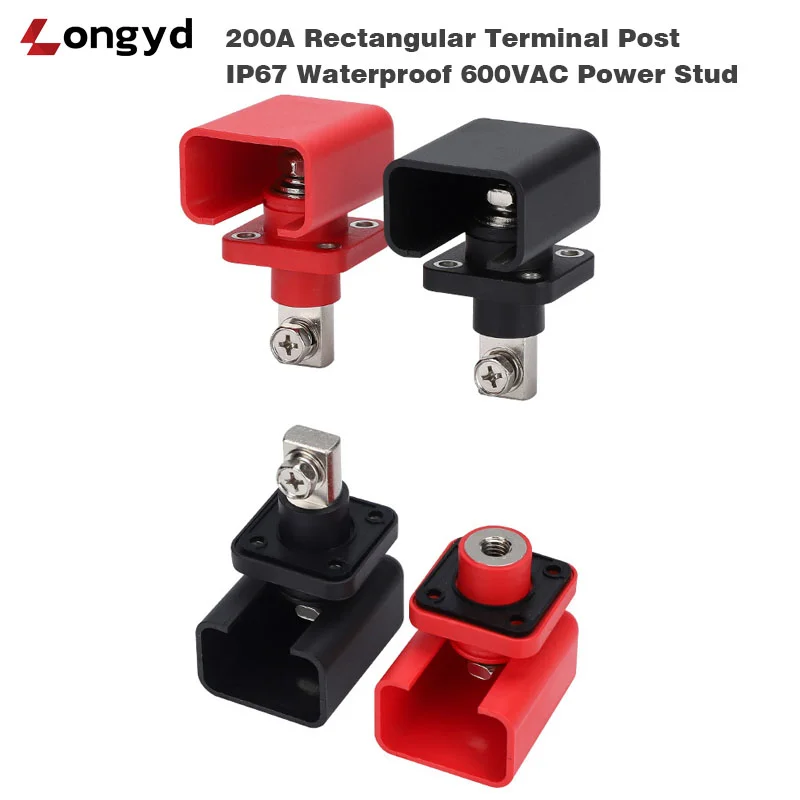

200A Rectangular Terminal Post Product Overview

The 200A Rectangular Terminal Post (including 200A-A and 200A-C rectangular post variations) is a premium electrical connectivity solution designed to bridge high-power configurations with maximum safety. Built with high-conductivity brass and all-copper terminal bodies, these pass-through studs minimize resistance and heat generation in demanding environments, supporting currents from 120A up to 300A.

With its reliable IP67 waterproof seal and UL94-V0 flame-retardant housing, it provides exceptional environmental protection, preventing moisture, dust, and accidental short circuits in critical power distribution systems.

200A Rectangular Terminal Post Key Features & Advantages

• Superior Conductivity: Manufactured from premium All Copper / Brass material to ensure minimal voltage drop and maximum power efficiency.

• All-Weather IP67 Waterproof: Equipped with heavy-duty rubber gaskets and precision-engineered seals, making it perfect for outdoor or marine environments.

• Enhanced Safety (UL94-V0): The protective outer cap and flange base are made of highly durable, fire-retardant materials that self-extinguish within 10 seconds.

• Flexible Thread Layout: Features integrated M8 and M6 internal/external precision threads for versatile cable shoe and busbar bolting.

• Color-Coded Protection: Includes bright Red (+) and Black (-) insulating boots to prevent cross-polarity wiring errors and protect operators from high-voltage shocks.

Technical Specifications

Applications

• Energy Storage Systems (ESS): Commercial battery packs, solar inverter arrays, and power walls.

• Electric Vehicles (EV): E-bike power systems, EV charging stations, and powertrain busbars.

• Marine & Automotive: Heavy-duty trucks, RV electrical networks, yachts, and off-road vehicles.

• Industrial Automation: High-power control cabinets, welding machinery, and industrial power supplies.

FAQ

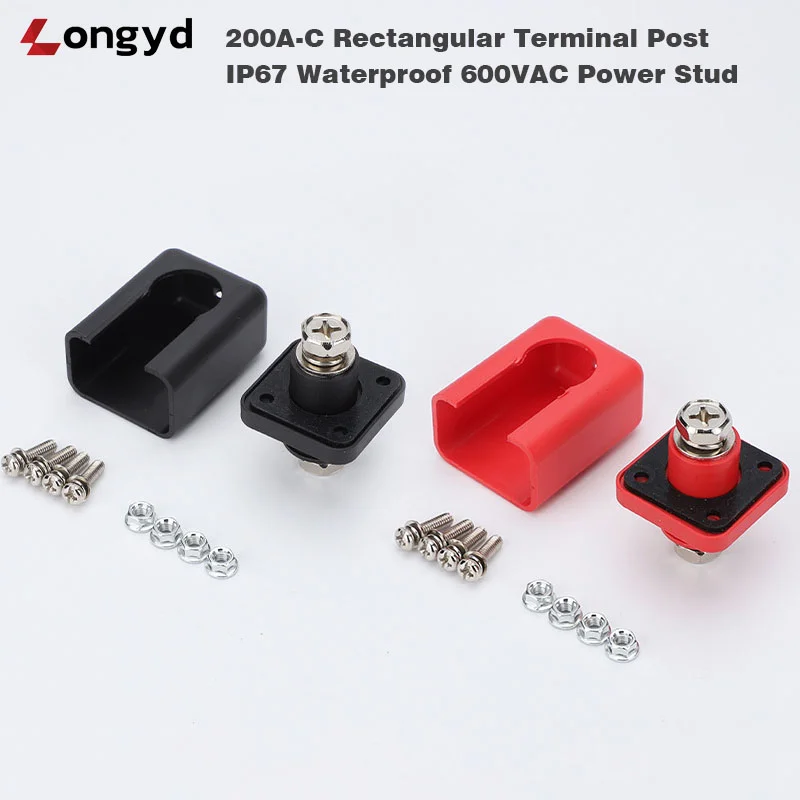

Q1: What is the difference between the 200A-A and 200A-C models?

A: Both models share the identical robust base structure, 600VAC voltage rating, and IP67 waterproof properties. The primary variation lies in the orientation or the style of the rectangular terminal post head (e.g., specific placement of the M6/M8 threading or screw hole layout) to accommodate different busbar mounting angles.

Q2: Can this terminal post handle continuous 300A current?

A: Yes. While optimized for standard 120A/200A configurations, the high-purity copper and brass composition allows the terminal to safely handle a rated current peak of up to 300A under standard operating temperatures (-40°C to +105°C).

Q3: Is the protective rubber boot chemical and UV resistant?

A: Absolutely. The protective red/black insulating covers are made from heavy-duty industrial polymers that meet UL94-V0 flame retardancy and provide excellent resistance to UV rays, engine oils, and common industrial chemical exposures.

Q4: Does the product package include all necessary mounting hardware?

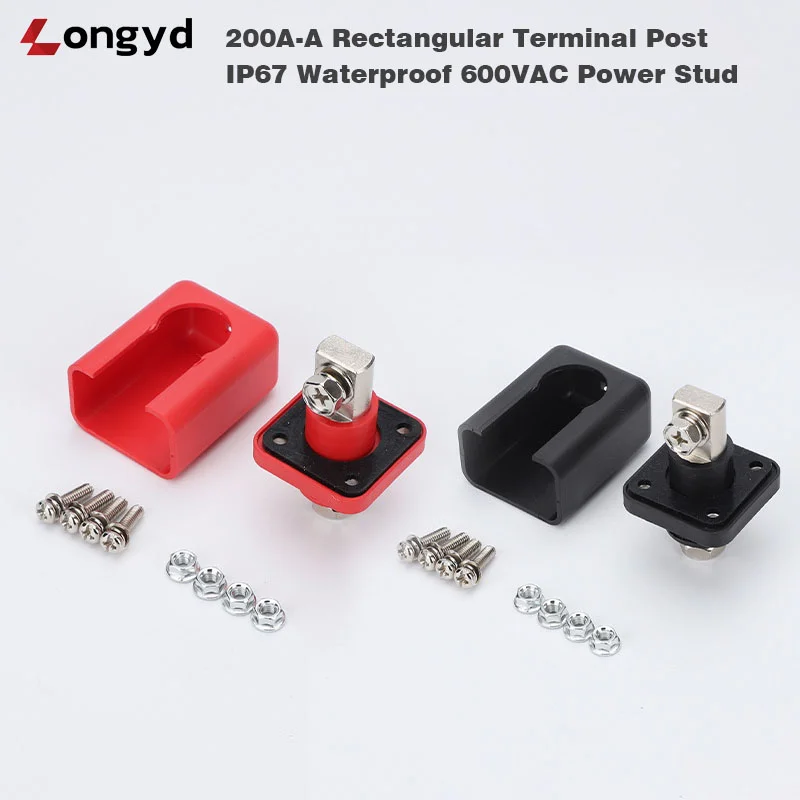

A: Yes, each industrial B2B package comes complete with the terminal stud, the color-coded insulating cover, rubber sealing gaskets, and a full set of mounting screws and locknuts as shown in the product photos (200A-A Rectangular Terminal Post.jpg).

Customization Available:
For custom lengths or bulk pricing, please email us:
