Product Overview

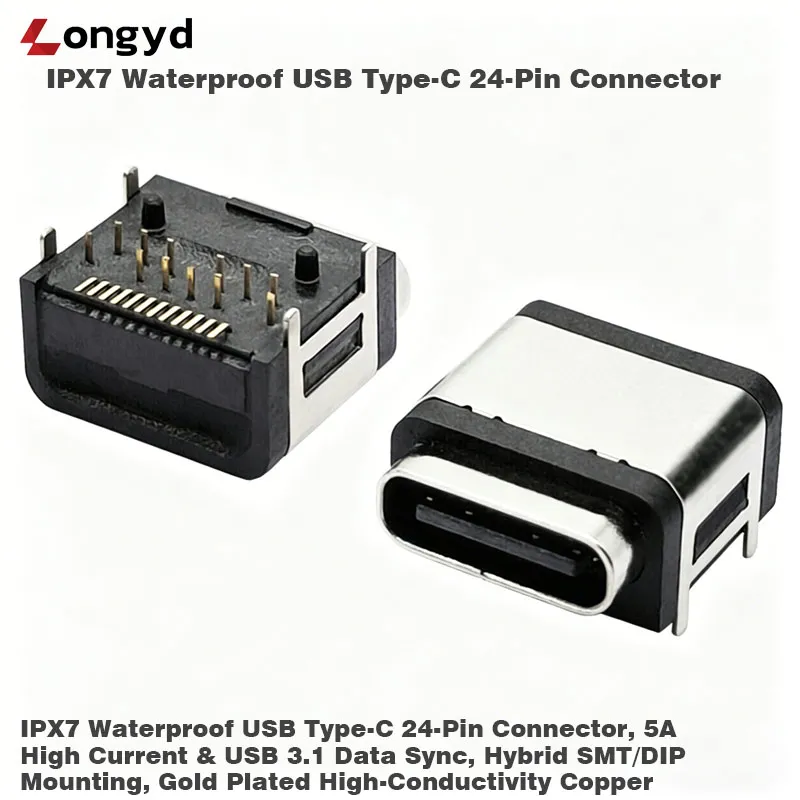

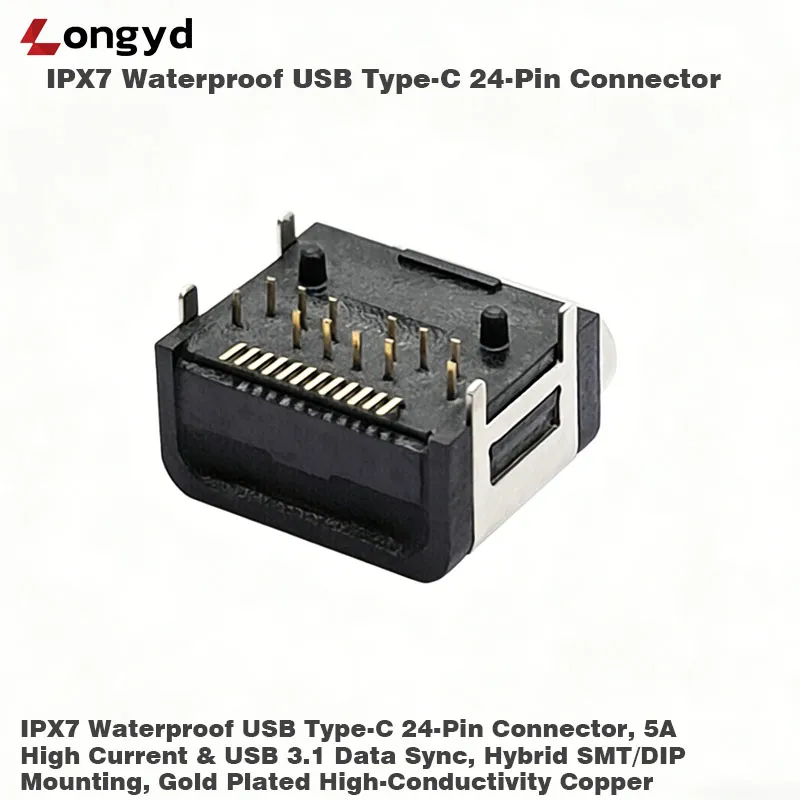

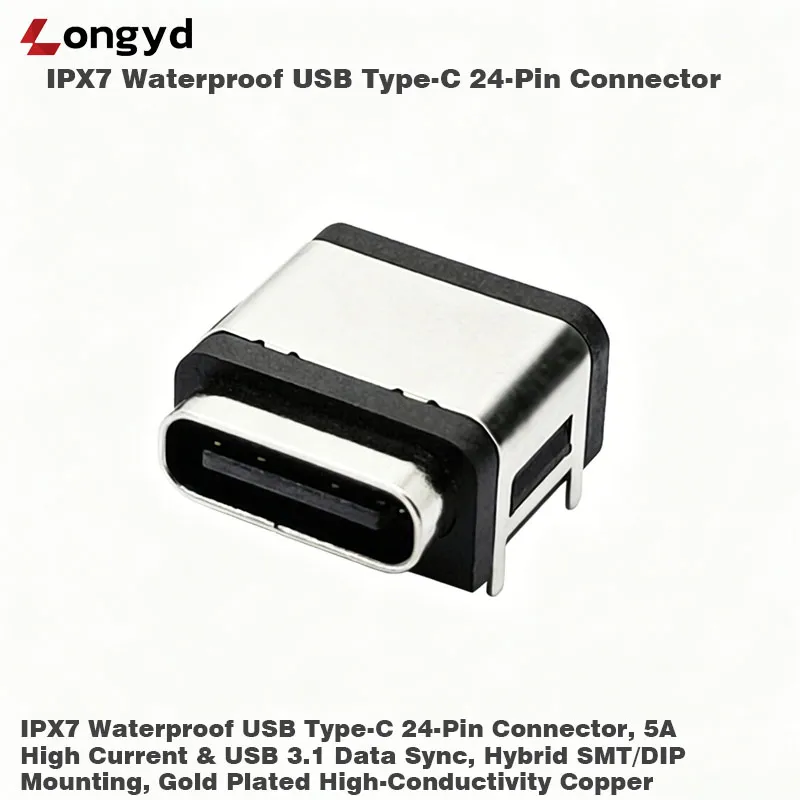

IPX7 Waterproof USB-C :This premium IPX7 Waterproof USB3.1 Type-C 24P Connector is designed for high-performance applications requiring both environmental sealing and high-speed connectivity. Utilizing advanced glue-dispensing technology, it provides reliable protection against water immersion while maintaining a compact form factor.
Key Features of the IPX7 Waterproof USB-C Port
• Advanced Waterproofing: USB-C 3.1 24P Waterproof Port,IPX7 rated,utilizing professional-grade internal sealing (glue-dispensing process) to ensure performance in wet or harsh conditions.
• High-Speed Performance: Fully compatible with the USB 3.1 transmission protocol for seamless high-speed data synchronization.
• Power Delivery Support: Rated for 5A high current, making it ideal for fast-charging industrial and consumer electronic devices.
• Superior Material Quality: Constructed with a SUS304 stainless steel shell and gold-plated high-conductivity copper terminals for excellent corrosion resistance and electrical stability.
• Precision Engineering: The 24-pin dual-row design ensures high coplanarity and precise alignment, eliminating common issues like false soldering or cold joints during PCBA assembly.
Technical Specifications
| Specification | Details |
| Mounting Type | Hybrid (Front Plug-in / Rear SMT) |
| Waterproof Rating | IPX7 |
| Data Protocol | USB 3.1 Compatible |
| Rated Current | 5A Max |
| Mating Cycles | 10,000+ Cycles |
| Operating Temperature | -40°C to +80°C |
| Housing Material | High-Temperature Resistant Plastic (LCP) |
| Shell Material | Stainless Steel 304 (SUS304) |
Ideal Applications
Due to its robust specifications and wide operating temperature range ($-40°C$ to $+80°C$), this IPX7 Waterproof USB-C is exceptionally versatile. For instance, it is a trusted component in:
• Outdoor portable electronics
• Industrial control systems
• Medical devices
• Automotive and marine equipment
• Ruggedized consumer hardware
To summarize, if your project requires a high-speed, 5A-capable interface that can withstand the harshest elements, our USB-C 3.1 Waterproof Port is the definitive solution. Please contact us today to request a technical datasheet or a bulk quotation.
Customization Available:
For custom lengths or bulk pricing, please email us:
nick.xu@lyd123.com
