Executive Summary
This comprehensive white paper establishes a standardized framework for connector reliability testing standards, addressing the critical needs of modern industrial applications. With the advent of Industry 4.0 and increasingly demanding operational environments, the traditional “functionality-first” approach has evolved into a reliability-centric paradigm. We present a holistic methodology covering mechanical, electrical, environmental, and material reliability pillars, supported by industry-specific test matrices and advanced digital verification techniques.

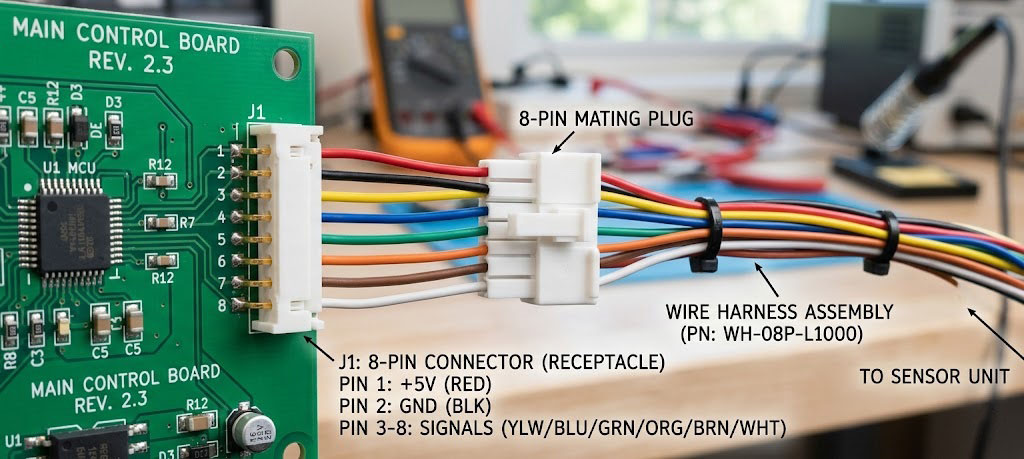

Chapter 1: Introduction – Why Reliability Testing is the Lifeline of Modern Industrial Connectors
1.1 The Cost of Connector Failure in Industry 4.0 Environments
In the era of digitally interconnected manufacturing systems, a single connector failure can trigger cascading system-wide disruptions. Recent industry studies reveal that connector-related failures account for approximately 23% of all electrical system downtime in automated manufacturing facilities. The economic impact is staggering: unplanned downtime costs industrial manufacturers an estimated $50 billion annually worldwide. Beyond financial implications, connector failures in critical applications such as medical devices, aerospace systems, and automotive safety features can have catastrophic consequences for human safety and environmental protection.
The evolution from “functional operability” to “predictable reliability” represents a fundamental shift in connector engineering philosophy. Modern industrial connector reliability testing standards must address not only whether connectors work initially but how they perform throughout their entire operational lifecycle under varying stress conditions.
1.2 From “Functional” to “Reliable”: The Design Philosophy Transformation
Traditional connector design focused primarily on meeting basic electrical and mechanical specifications at the point of manufacture. Contemporary engineering approaches recognize that connectors exist within complex ecosystems where multiple stress factors interact dynamically. The modern paradigm emphasizes:
- Lifecycle Performance: Evaluation of performance degradation over time rather than binary pass/fail criteria
- Multi-Stress Interaction: Assessment of combined mechanical, electrical, thermal, and environmental stresses
- Predictive Analytics: Utilization of data-driven models to project failure probabilities
1.3 White Paper Objectives: Establishing Standardized Assessment Frameworks
This document aims to provide engineering teams with:
- A comprehensive taxonomy of connector reliability testing standards across major industrial sectors
- Practical implementation guidelines for establishing and operating reliability testing laboratories
- Methodologies for correlating accelerated laboratory testing with real-world field performance
- Strategies for integrating digital verification technologies into traditional testing frameworks
Chapter 2: Theoretical Foundations of Reliability Testing – The Four Pillars
2.1 Mechanical Reliability Pillar
Mechanical reliability represents the fundamental ability of connectors to maintain physical integrity and proper mating throughout their operational lifespan. Key testing methodologies include:
2.2 Electrical Performance Reliability Pillar
Electrical reliability encompasses the connector’s ability to maintain signal integrity and current carrying capacity under dynamic operating conditions. Critical parameters include:
2.3 Environmental Reliability Pillar
Environmental reliability testing simulates the harsh conditions connectors encounter in real-world applications. The comprehensive environmental reliability testing regime includes:
2.4 Material Reliability Pillar
Material reliability focuses on the long-term performance of connector constituent materials under operational stresses:
Chapter 3: Industry-Specific Test Standard Matrix
| Industry | Core Standards | Testing Focus | Acceptance Criteria |
|---|---|---|---|
| Automotive | ISO 16750, LV 214, USCAR-2 | High-frequency vibration (10-2000 Hz), extreme temperature cycling (-40°C to +150°C), mechanical shock (50g), salt spray (ASTM B117) | 0 failures in 500 thermal cycles, vibration resistance up to 15g RMS, IP6K9K water ingress protection |
| Aerospace | MIL-DTL-38999, AS39029, RTCA DO-160 | High-G shock (up to 100g), altitude (up to 70,000 ft), rapid decompression, lightning strike (DO-160 Section 22) | NASA Class S verification, zero single-point failures, radiation hardness ≥ 100 krad(Si) |
| Industrial Automation | IEC 60529 (IP Rating), IEC 61000-4 (EMC), IEC 61131-2 | IP protection (dust/water ingress), electromagnetic compatibility (EMC Class A/B), vibration for industrial machinery | IP67 minimum, EMC Class B immunity, operating temperature -25°C to +85°C |
| Medical Devices | ISO 13485, IEC 60601-1, FDA CFR Part 820 | Sterilization compatibility (autoclave, ETO, gamma radiation), biocompatibility (ISO 10993), reliability under medical cleaning agents | FDA Class II+ compliance, 50+ autoclave cycles without degradation, biocompatibility per ISO 10993-1 |
| Consumer Electronics | JESD22-A, IEC 62368-1, USB-IF Compliance | Limited mating cycles (typically 10,000 cycles), cosmetic wear resistance, ESD protection (HBM Class 2) | 10,000 mating cycles with <10% increase in contact resistance, ESD withstand ≥ 8kV contact discharge |
| Marine & Offshore | DNV-GL, IEC 60533, MIL-STD-810H | Extended salt fog (1000+ hours), fungal resistance (MIL-STD-810 Method 508.7), high-pressure water immersion | DNV-GL Type Approval, 2000-hour salt spray resistance, operational depth rating to 3000m |
| Rail Transportation | EN 50155, IEC 61373, DIN EN 45545-2 | Shock & vibration per railway profiles, fire safety (EN 45545), extended temperature range (-40°C to +85°C) | EN 50155 Class Tx (extended temperature), fire protection HL3 rating, vibration category 1 (10-500 Hz) |
Chapter 4: Detailed Test Methodologies and Implementation Guidelines
4.1 Temperature Humidity Bias Testing (THB)
Temperature Humidity Bias testing remains the gold standard for accelerated environmental aging of connectors. The 85°C/85% relative humidity condition accelerates failure mechanisms by factors of 10-100 compared to normal operating conditions.
- Test Chamber Calibration: Verify temperature uniformity within ±2°C and humidity control within ±3% RH
- Sample Preparation: Clean samples per IPC-J-STD-001, apply bias voltage per product specification
- Monitoring: Continuously monitor insulation resistance (>10⁹ Ω required) and contact resistance (<5 mΩ variation)
- Failure Analysis: Post-test examination for corrosion, dendrite growth, and material degradation
The Arrhenius equation provides the theoretical foundation for temperature acceleration:
Where AF is acceleration factor, Eₐ is activation energy (typically 0.7-1.0 eV for electronic components), k is Boltzmann’s constant, and T₁ and T₂ are absolute temperatures.
4.2 Vibration Fatigue Testing
Vibration testing evaluates connector resilience to mechanical oscillatory stresses encountered in transportation and operational environments. Two primary methodologies dominate:
Critical implementation considerations include:
- Resonance Identification: Use low-level sine sweeps (0.5g) to identify natural frequencies before full testing
- Fixture Design: Ensure test fixtures have first natural frequency at least 3× the maximum test frequency
- Monitoring During Test: Continuous monitoring of contact resistance (<100 mΩ variation) and momentary discontinuities (<1 μs)
4.3 Salt Spray Corrosion Testing
Salt spray testing evaluates connector resistance to corrosive marine and industrial environments through controlled exposure to salt fog atmospheres.
| Test Type | Standard | Solution Composition | Typical Duration | Acceptance Criteria |
|---|---|---|---|---|
| Neutral Salt Spray | ASTM B117, ISO 9227 | 5% NaCl, pH 6.5-7.2 | 96-1000 hours | <5% red rust, no functional degradation |
| Acetic Acid Salt Spray | ASTM G85 Annex A1 | 5% NaCl + acetic acid, pH 3.1-3.3 | 24-200 hours | Accelerated corrosion evaluation |
| Copper-Accelerated | ASTM B368 (CASS) | 5% NaCl + CuCl₂, pH 3.1-3.3 | 6-72 hours | Evaluation of decorative coatings |
Chapter 5: Advanced Testing Technologies and Digital Innovation
5.1 Intelligent Monitoring and Predictive Testing
Traditional reliability testing often generates binary pass/fail outcomes without providing insights into degradation processes. Intelligent monitoring systems address this limitation through embedded sensors and continuous data acquisition.
The evolution toward predictive reliability leverages several technological advancements:
- Embedded Microsensors: Integration of temperature, humidity, and strain sensors within connector housings for continuous condition monitoring
- Wireless Data Transmission: Implementation of Bluetooth Low Energy or LoRaWAN modules for remote monitoring of deployed connectors
- Advanced Data Analytics: Application of machine learning algorithms to predict failure probabilities based on degradation patterns
5.2 Accelerated Lifetime Testing (ALT) Methodologies
Accelerated lifetime testing employs scientific models to compress years of field operation into manageable laboratory timescales. The Weibull distribution provides the statistical foundation for ALT data analysis:
Where F(t) is cumulative failure probability, t is time, η is characteristic life, and β is shape parameter indicating failure mode (β<1 for infant mortality, β≈1 for random failures, β>1 for wear-out).
Practical ALT implementation follows a systematic approach:
- Stress Factor Selection: Identify the most relevant accelerating stresses (temperature, humidity, voltage, vibration)
- Acceleration Model Development: Establish mathematical relationships between stress levels and failure rates
- Test Matrix Design: Create efficient test plans that maximize information yield while minimizing test time
- Data Analysis: Apply statistical methods to extrapolate accelerated test results to normal operating conditions
5.3 Reliability Simulation Technologies
Digital simulation technologies provide cost-effective alternatives or complements to physical testing, particularly during early design phases:
| Simulation Type | Analysis Focus | Software Platforms | Key Outputs | Validation Requirements |
|---|---|---|---|---|
| Finite Element Analysis (FEA) | Structural integrity, vibration response, thermal stress | ANSYS, ABAQUS, COMSOL | Stress distributions, displacement plots, natural frequencies | 5-10% correlation with physical test results |
| Computational Fluid Dynamics (CFD) | Thermal management, airflow, cooling efficiency | ANSYS Fluent, OpenFOAM, STAR-CCM+ | Temperature contours, heat transfer coefficients | 3-5°C accuracy compared to thermal imaging |
| Multi-Physics Simulation | Coupled thermal-structural-electrical effects | COMSOL Multiphysics, ANSYS Workbench | Electro-thermal stress, thermomechanical deformation | Requires specialized validation protocols |
Chapter 6: Enterprise Implementation Framework and Best Practices
6.1 Test Laboratory Development Guidelines
Establishing an effective reliability testing capability requires strategic planning across multiple dimensions:
- Requirements Definition Phase: Identify current and future product testing needs across temperature (-40°C to +175°C), humidity (10-98% RH), vibration (10-2000 Hz), and EMC (IEC 61000-4 series)
- Equipment Selection Phase: Evaluate thermal chambers (-70°C to +180°C, ±0.5°C accuracy), vibration systems (2-3000 Hz, 50-2000N force capacity), and electrical test equipment (4-wire micro-ohmmeters with 1 μΩ resolution)
- Facility Planning Phase: Allocate sufficient floor space (typically 50-200 m²), ensure proper power requirements (20-60 kVA), and implement environmental controls (20-25°C, 40-60% RH)
- Personnel Development Phase: Recruit qualified engineers with expertise in reliability engineering, statistics, and failure analysis; provide training on standards including ISO/IEC 17025
- Process Implementation Phase: Develop standard operating procedures (SOPs) for equipment calibration (annual NIST-traceable), test execution, data recording, and report generation
- Continuous Improvement Phase: Implement feedback loops from field failures to laboratory testing, regularly update test methods based on new standards and technologies
6.2 Supply Chain Reliability Management
Connector reliability depends not only on design and manufacturing but also on supply chain quality consistency. Effective supply chain reliability management incorporates several critical elements:
- Supplier Qualification: Implement tiered evaluation system with 23-point technical audit covering materials traceability, process control capabilities, and quality management systems
- Incoming Quality Control: Establish statistical acceptance sampling plans based on ANSI/ASQ Z1.4 with AQL levels (0.65% for critical characteristics, 1.5% for major characteristics, 4.0% for minor characteristics)
- Supplier Performance Monitoring: Track key metrics including PPM defect rates, on-time delivery performance (>95% target), and corrective action response time (<30 days)
6.3 Closed-Loop Quality Improvement Systems
Sustainable reliability improvement requires systematic feedback mechanisms connecting field performance data with testing protocols:
Essential components of effective feedback systems include:
- Failure Reporting Systems: Standardized reporting formats capturing failure modes (open circuits, high resistance, mechanical fractures), environmental conditions, and operational parameters
- Correlation Analysis: Statistical methodologies linking field failure rates with specific laboratory test results to validate acceleration factors
- Corrective Action Databases: Systematic tracking of implemented improvements and their effectiveness in reducing field failure rates
Chapter 7: Future Trends and Standards Evolution
7.1 Sustainability Integration in Reliability Standards
The growing emphasis on environmental sustainability is transforming reliability testing through several emerging trends:
- Circular Economy Considerations: Development of test protocols for connectors designed for disassembly, refurbishment, and component reuse
- Bio-Based Material Evaluation: Creation of accelerated aging tests for connectors incorporating bio-plastics and recycled content materials
- Carbon Footprint Assessment: Integration of lifecycle analysis (LCA) methodologies into reliability assessment frameworks
- Energy Efficiency Standards: Development of test methods quantifying connector energy losses and their impact on system efficiency
7.2 Smart Connector Reliability Requirements
The integration of electronics within connectors creates new reliability challenges that require specialized testing:
| Smart Feature | Reliability Challenge | Testing Approach | Standards Development |
|---|---|---|---|
| Embedded Sensors | Long-term calibration stability, environmental protection | Extended accuracy testing (1000+ hours), hermetic sealing validation | IEC 60747-14-2 (sensor reliability), ISO 17025 calibration requirements |
| Communication Modules | RF performance degradation, protocol stability | Bit error rate testing under stress conditions, RF parametric drift measurement | IEC 62304 (medical software), IEC 61508 (functional safety) |
| Power Management | Battery lifespan, power conversion efficiency | Accelerated battery cycling, efficiency measurement across temperature range | IEC 61960 (secondary lithium cells), UL 2054 (household battery packs) |
7.3 Globalization of Standards and Harmonization Trends
The convergence of international standards represents a significant trend in connector reliability testing:
- ISO/IEC/JEDEC Collaboration: Increasing alignment between international standards organizations to reduce duplicative testing requirements
- Regional Standard Harmonization: Efforts to reconcile differences between North American (UL, CSA), European (EN), and Asian (GB, JIS) standards
- Open Standards Development: Growing participation of connector users in standards development through organizations like OCP (Open Compute Project) and USB-IF
Conclusion: Reliability Testing as Strategic Competitive Advantage
Industrial connector reliability testing has evolved from a peripheral quality control activity to a strategic engineering discipline with direct impact on product success, brand reputation, and operational economics. The comprehensive framework presented in this white paper provides organizations with systematic methodologies for establishing world-class reliability testing capabilities.
The future of connector reliability lies not in more rigorous testing regimes, but in smarter, more predictive approaches that leverage digital technologies, data analytics, and sustainability principles. As industrial systems continue to demand higher performance in more challenging environments, the organizations that master these reliability methodologies will establish significant competitive advantages through:
- Reduced Failure Rates: Implementation of predictive maintenance strategies based on reliability data
- Lower Total Cost of Ownership: Extended product lifetimes and reduced warranty costs
- Enhanced Customer Satisfaction: Consistent product performance across diverse operating conditions
- Regulatory Compliance: Streamlined certification processes through standardized testing approaches
- Sustainability Leadership: Reduced environmental impact through longer product lifecycles and recyclable designs
