Frequently Asked Questions
What is a JWPF series connector?
JWPF is a compact waterproof connector series designed for harsh environments. Featuring IP67-rated sealing, positive locking, and compact footprint, it is ideal for outdoor, automotive, and industrial applications requiring reliable connections in wet or dusty conditions.
What is the current rating of JWPF connectors?
JWPF series connectors typically support 3-5A per contact depending on pin count and wire gauge. The connectors are available in 2-12 positions with options for wire-to-wire and wire-to-board configurations.
What industries use JWPF waterproof connectors?
NEV (battery packs, charging systems), outdoor LED lighting, solar energy, agricultural equipment, marine electronics, and industrial sensors all use JWPF connectors for their compact size and reliable environmental sealing.

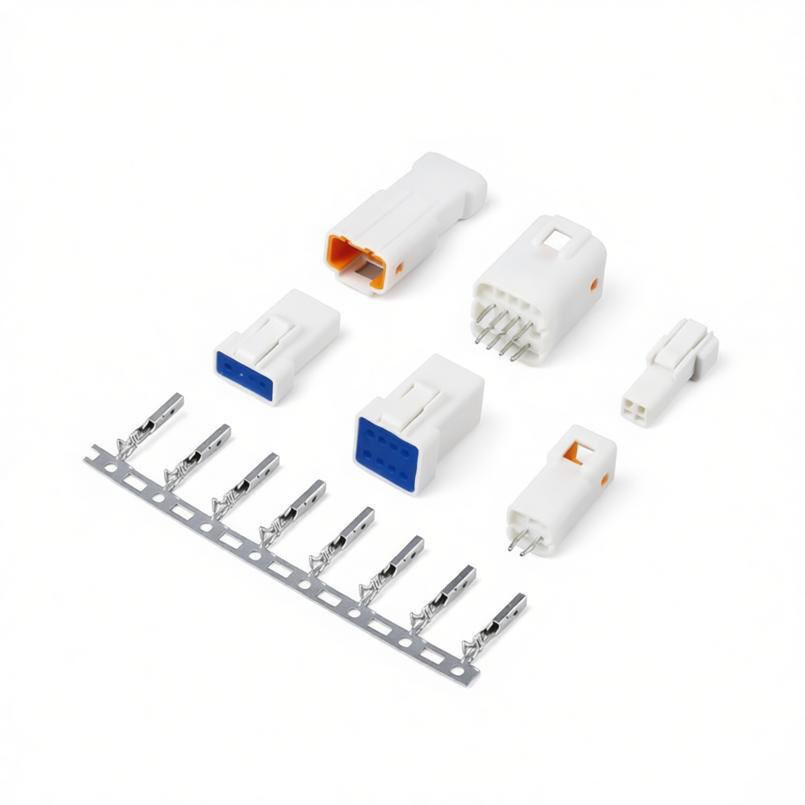

JWPF Series Waterproof Connectors — Compact Protection for Harsh Environments
In the world of industrial electronics and automotive wiring, water is often the greatest enemy of a stable connection. As a leading manufacturer of precision interconnect solutions, Longyueda understands that standard connectors simply won’t cut it when moisture, dust, or vibration are involved. Today, we are highlighting our JWPF Series compatible waterproof connectors—a compact yet powerful solution for small-space, high-protection applications.
Key Features
- Superior Waterproof Rating: Designed with high-quality silicone seals, these connectors ensure a tight, moisture-proof barrier that protects your signals from short circuits.
- Ultra-Compact Design: With a small pitch, the JWPF series is ideal for applications where space is at a premium, such as UAVs, drones, and compact industrial robotics.
- Secure Locking Mechanism: The integrated housing lance and internal polarities ensure that the male and female parts click into place securely, preventing accidental disconnection due to vibration.
- Versatile Pin Configurations: Available in various circuit sizes (from 2-pin up to multi-pin configurations), allowing for flexible design-in for both power and signal transmission.
Wide Range of Applications
- New Energy Vehicles (NEV): Connecting sensor arrays and low-current power lines in EVs and electric scooters.
- Outdoor Industrial Equipment: Perfect for LED lighting, waterproof motors, and automated production lines exposed to wash-downs.
- Consumer Electronics: Ideal for high-end appliances that require internal moisture protection.
Why Choose LongYueda?
At Shenzhen LongYueda Electronics, every harness and connector undergoes 100% Quality Testing. Our state-of-the-art facility is equipped with precision testing labs (including tensile and environmental testing) to ensure your components meet international standards like UL & RoHS.
Customization Available:
For custom lengths or bulk pricing, please email us:
nick.xu@lyd123.com
📡 Download JWPF Connector Datasheet & Request Samples →

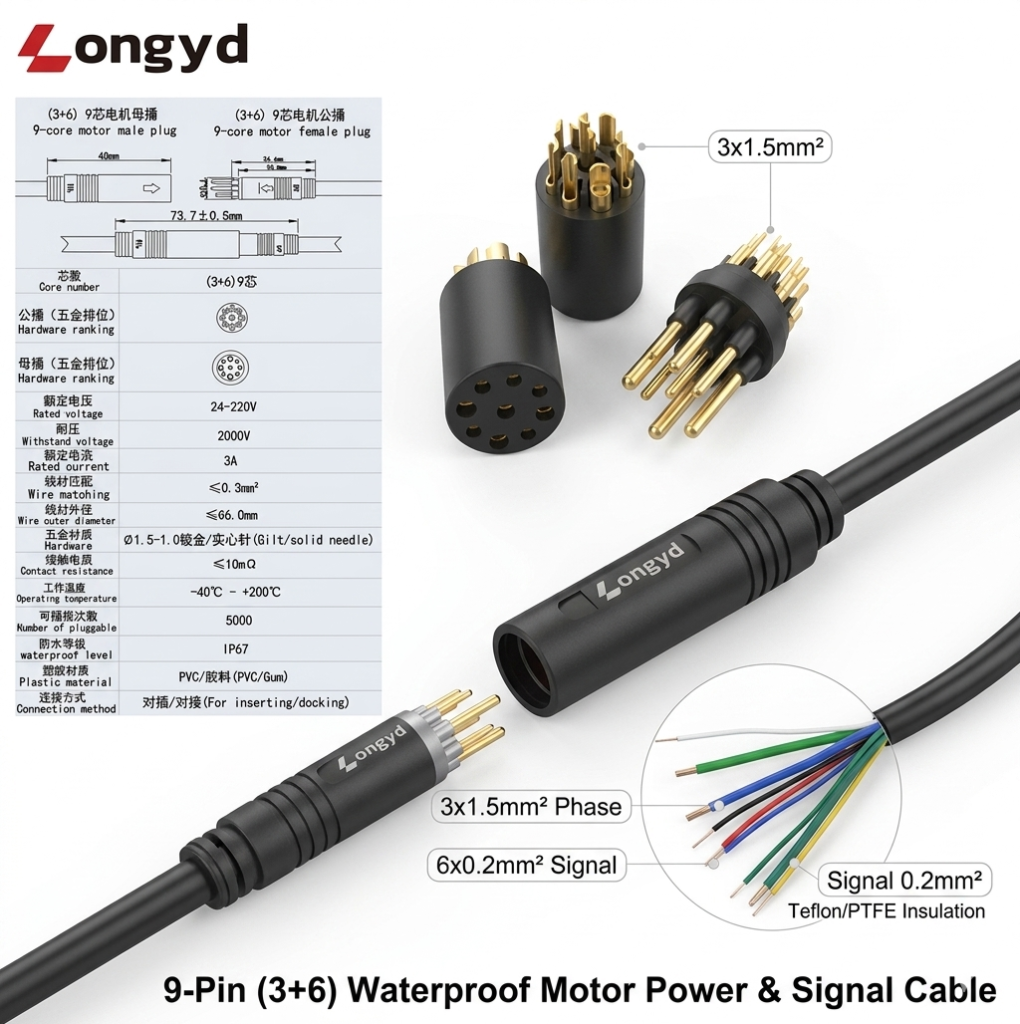

Explore our waterproof motor cable guide and connector reliability testing guide for more engineering resources.
