L-Shape USB 2.0 Type-C Open End Cable

L-Shape USB 2.0 Type-C Open End Cable Overview

The Longyd Industrial-Grade 90-Degree L-Shape USB 2.0 Type-C to Open End Cable is the ultimate solution for engineers and manufacturers requiring reliable USB connectivity in compact or rugged environments. With its right-angle connector, this cable significantly reduces cable strain and saves critical installation space in machinery, kiosks, medical devices, and automotive electronics.

The tail end is professionally stripped and tinned, making it ready for direct soldering, terminal block connection, or custom housing integration, drastically shortening your production assembly time.

Key Features & Advantages

• Space-Saving 90-Degree Design: The L-shape Type-C connector allows for flush mounting, protecting the port from accidental bumps and minimizing space requirements.

• Industrial-Grade Durability: Built with high-quality components and a reinforced molded strain relief (grommet) to withstand harsh environments and constant vibration.

• Stripped & Tinned Ends: Ready-to-weld wire ends ensure strong, low-resistance solder joints and hassle-free wire harness assembly.

• OEM/ODM Customization Available: As a B2B supplier, we support custom cable lengths, custom outer diameters (OD), wire gauges (AWG), and specific color-coding to match your technical drawings.

L-Shape USB 2.0 Type-C Open End Cable Specifications

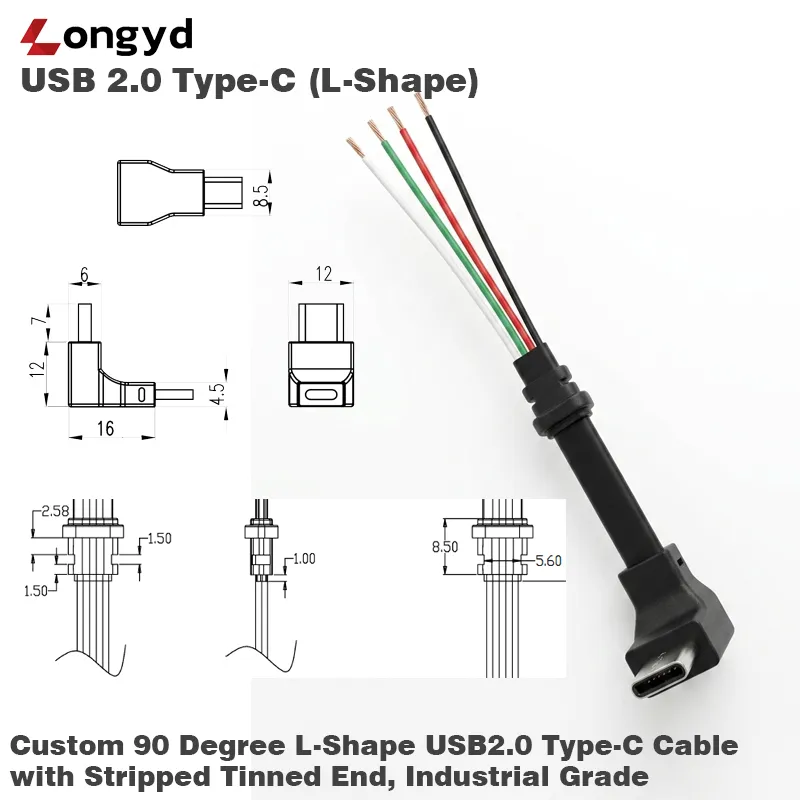

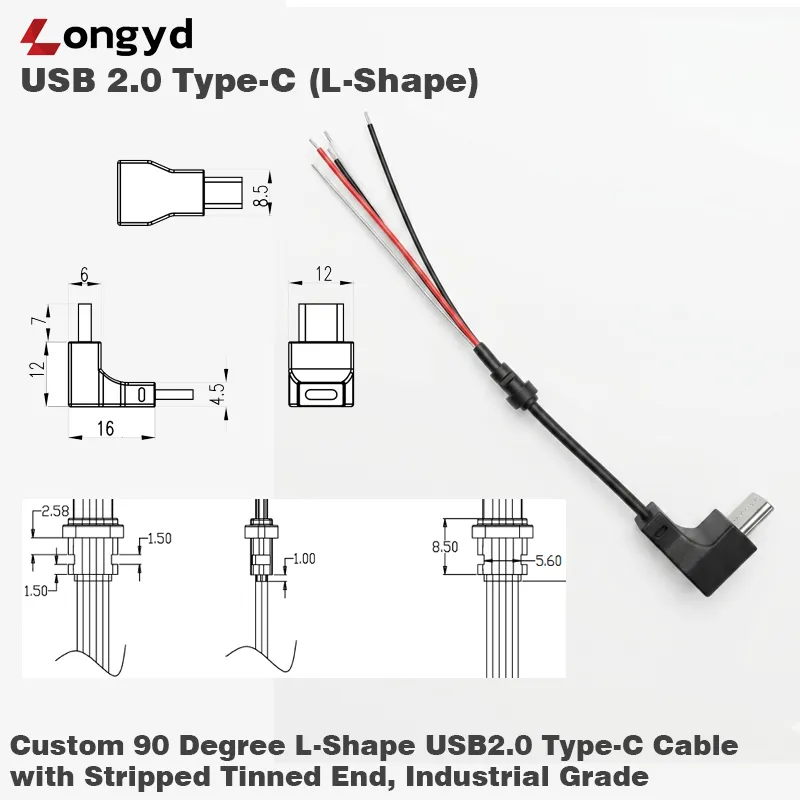

(Please refer to the technical drawing in the product images for precise measurements)

Applications

This versatile open-ended USB-C cable is widely used across various industries, including:

• Industrial Automation: Smart factories, PLC controllers, and control panels.

• IoT & Embedded Systems: Custom PCB boards, Raspberry Pi/Arduino enclosures.

• Medical Equipment: Compact diagnostic tools and handheld medical devices.

• Automotive & Marine: Dash cams, GPS tracking systems, and marine electronics.

• Commercial Kiosks: POS terminals, vending machines, and digital signage.

 Why Choose Us?

• Strict Quality Control: 100% electrical testing for continuity, shorts, and performance.

• Flexible MOQ: Accommodating both prototype sampling and high-volume mass production.

• Fast Lead Times: Efficient supply chain management to keep your project on schedule.

Contact our engineering team today to get a custom drawing and bulk wholesale pricing!

Frequently Asked Questions

1. What makes the L-shape (90-degree) Type-C connector different from a straight connector?

The 90-degree L-shape connector allows for flush mounting against the device edge, saving critical installation space and protecting the port from accidental bumps. It significantly reduces cable strain in tight enclosures, machinery panels, kiosk interiors, and other confined spaces where a straight plug would create excessive bending stress on the cable and port.

2. Why does this cable have stripped and tinned open ends instead of a standard connector?

The tail end is professionally stripped and tinned, making it ready for direct soldering to PCBs, terminal block connections, or custom housing integration. This open-end pigtail design allows engineers to terminate the cable exactly as their project requires, drastically shortening production assembly time compared to using standard USB connectors.

3. What is the interface standard and wire configuration?

This cable uses USB 2.0 standard supporting both data transfer and power delivery, with a 4-wire configuration: Red (VBUS), Black (GND), Green (D+), and White (D-). This covers the vast majority of embedded system, industrial controller, and IoT device requirements. For USB 3.0/3.1 or higher-speed applications, please contact our engineering team.

4. What are the physical dimensions of the connector?

The Type-C connector measures 12mm (W) x 16mm (L) x 12mm (H), with a plug neck dimension of 8.5mm. The molded grommet/strain relief features an embedded slot design with 5.60mm – 8.50mm locking width. Refer to the technical drawing in the product images for precise measurements.

5. What B2B customization options are available?

We support OEM/ODM customization including custom cable lengths, custom outer diameters (OD), wire gauges (AWG), and specific color-coding to match your technical drawings. Flexible MOQ accommodates both prototype sampling and high-volume mass production.

6. What are the primary application areas?

Key applications include industrial automation (smart factories, PLC controllers, control panels), IoT and embedded systems (custom PCBs, Raspberry Pi/Arduino enclosures), medical equipment (compact diagnostic tools, handheld medical devices), automotive and marine (dash cams, GPS tracking, marine electronics), and commercial kiosks (POS terminals, vending machines, digital signage).

7. What quality control processes apply?

100% electrical testing for continuity, shorts, and performance. Each cable is verified before shipment. The cable is industrial/commercial OEM grade, built with high-quality components and a reinforced molded strain relief to withstand harsh environments and constant vibration.

8. Do you provide technical drawings?

Yes. Request PDF technical drawings and detailed specifications using the form above (click “Download Specifications & Request a Quote”). Our engineering team can also create custom drawings based on your specific requirements.

9. Can I get samples for qualification before bulk ordering?

Yes. We offer sample units for evaluation and qualification testing. Flexible MOQ supports both prototype sampling and high-volume production. Contact our engineering team for custom drawing creation and bulk wholesale pricing.

10. What is the lead time for bulk orders?

Fast lead times supported by efficient supply chain management. Specific lead times depend on order volume and customization complexity. Please contact our sales team via the email below for current lead times, stock availability, and bulk pricing.
