USB 2.0 to 1.25mm pitch slim header cable Product Description
Looking for a reliable, high-performance connectivity solution for compact electronics? Our USB 2.0 to 1.25mm pitch slim header cable is engineered to provide a secure and stable data transmission link for your internal components.

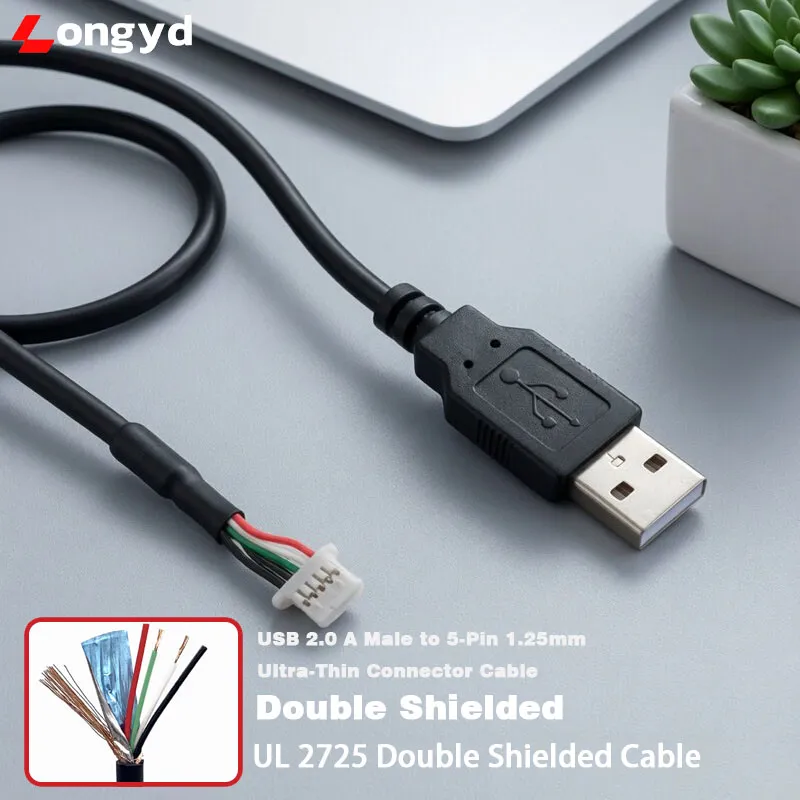

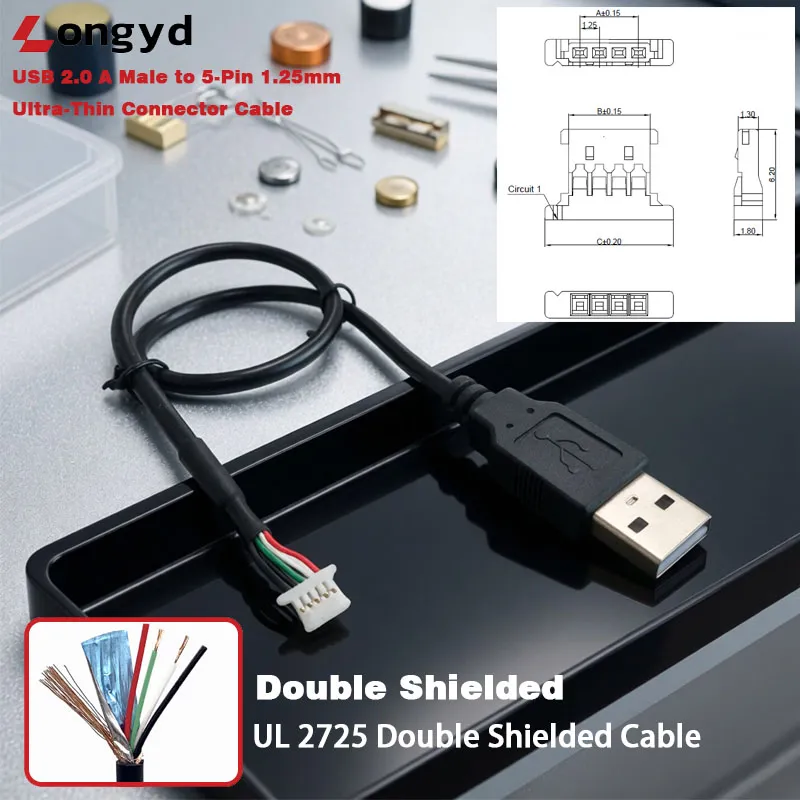

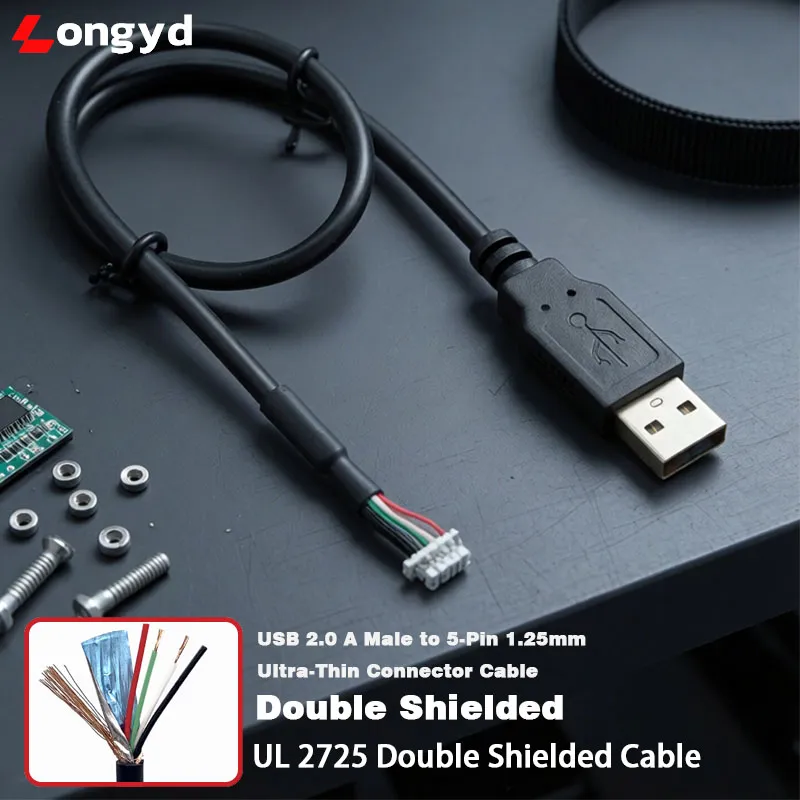

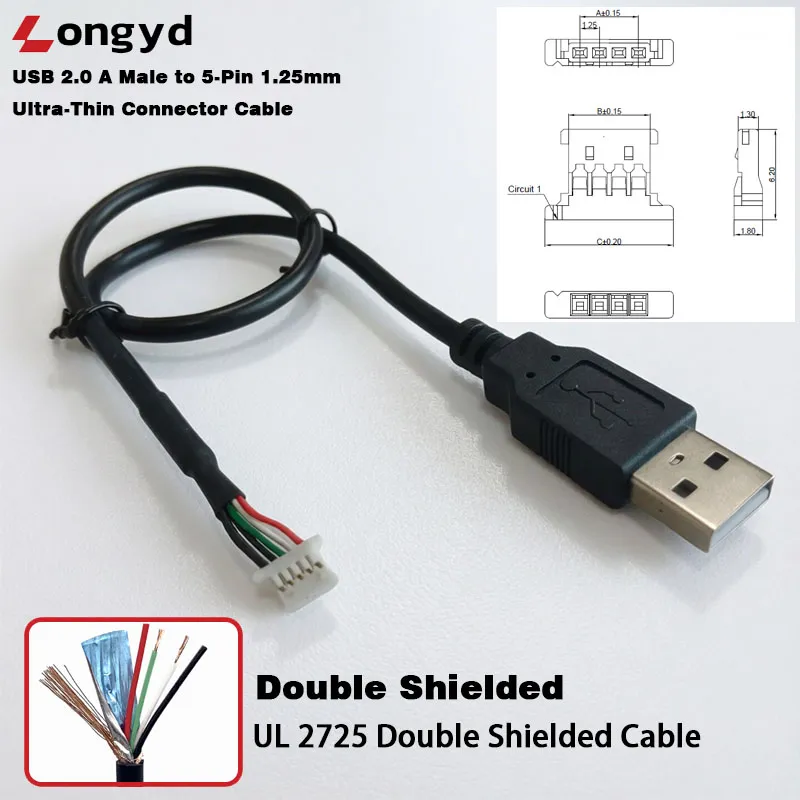

This high-quality assembly features a standard USB 2.0 Type-A connector on one end and a precise 5-pin 1.25mm pitch connector on the other. Designed with space-saving in mind, the ultra-thin profile makes it the perfect choice for crowded PCB layouts, embedded systems, and specialized industrial hardware where interior space is at a premium.
Advanced Shielding for Interference-Free Performance
Data integrity is critical. That is why this cable is built using UL 2725 certified double-shielded wire. This advanced shielding construction significantly reduces electromagnetic interference (EMI) and radio frequency interference (RFI), ensuring your data remains clean and stable, even in complex electrical environments.
USB 2.0 to 1.25mm pitch slim header cable Key Features & Specifications
Connector A: USB 2.0 Type-A Male.
Connector B: 5-Pin 1.25mm Pitch Slim Header Connector.
Cable Standard: UL 2725 Double Shielded construction.
Design: Ultra-thin cable profile for easy routing in tight enclosures.
Durability: High-grade materials ensuring longevity and consistent connectivity.
Applications: Ideal for internal USB headers, custom embedded controllers, data transfer modules, and compact electronic prototyping.
Customization: We offer flexible lengths and pinout configurations to meet your specific project requirements.
| Feature | Specification |
| Wire Standard | UL2725 (E-File Number available upon request) |
| Number of Cores | 5 Wires (Full Copper Conductors) |
| Shielding | Double Shielded (Al-Foil + Tinned Copper Braid) |
| Flammability Rating | UL VW-1 / CSA FT1 |
| Connector A | USB 2.0 Type A Male (Nickel/Gold Plated) |
| Connector B | 1.25mm Pitch Ultra-Thin 5-Pin Housing |
| Voltage/Temp Rating | 30V / 80°C |
| Wiring Definition | Red(VCC), White(D-), Green(D+), Black(GND), +Drain/Shield |
| Compliance | UL, RoHS, REACH |
Why Choose Our USB 2.0 to 1.25mm Pitch Cable?
As a trusted manufacturer, we prioritize precision and reliability. Whether you are building smart home devices, robotics, or industrial control units, our USB 2.0 to 1.25mm pitch slim header cables delivers the mechanical precision and signal quality required for mission-critical applications.
Contact our sales team today to request a quote or to discuss custom cable assembly solutions tailored to your production needs.
Frequently Asked Questions
1. What is the primary use of this cable assembly?
This cable bridges a standard USB 2.0 Type-A port to a 5-pin 1.25mm pitch slim header connector, designed for internal wiring in compact electronics. It is ideal for routing USB signals inside embedded systems, industrial controllers, smart home devices, and custom PCBs where a standard USB Type-A footprint is too large.
2. What are the connector specifications?
Connector A is a USB 2.0 Type-A Male with Nickel/Gold plated contacts. Connector B is a 1.25mm pitch ultra-thin 5-pin housing connector. The 1.25mm pitch significantly reduces PCB footprint compared to standard 2.54mm headers, making this assembly perfect for space-constrained board layouts.
3. What shielding is used to protect signal integrity?
The cable uses UL2725 certified double-shielded construction with Al-Foil + Tinned Copper Braid shielding. This dual-layer shielding significantly reduces electromagnetic interference (EMI) and radio frequency interference (RFI), ensuring clean and stable data transfer even in electrically noisy industrial environments.
4. What is the wire configuration?
The cable contains 5 wires (full copper conductors): Red (VCC), White (D-), Green (D+), Black (GND), plus a Drain/Shield wire. This standard USB 2.0 wiring supports both data transmission and power delivery for embedded USB peripherals.
5. What is the voltage and temperature rating?
Rated for 30V and 80°C. The UL2725 certified wire also carries a flammability rating of UL VW-1 / CSA FT1, ensuring safety compliance for internal wiring in electronic equipment.
6. What compliance certifications apply?
This cable assembly complies with UL, RoHS, and REACH standards. The UL E-File number is available upon request for compliance documentation. High-grade materials ensure consistent quality and long-term reliability in production environments.
7. What are the primary application areas?
Key applications include internal USB headers for embedded controllers, data transfer modules in industrial equipment, custom PCB prototyping, smart home devices, and robotics. The ultra-thin cable profile enables easy routing through tight enclosures and hinge mechanisms.
8. What customization options are available?
We offer flexible cable lengths and pinout configurations to meet specific project requirements. Whether you need a shorter cable for a compact assembly or a custom pin mapping for a non-standard header, our team can provide tailored solutions.
9. Do you provide technical datasheets?

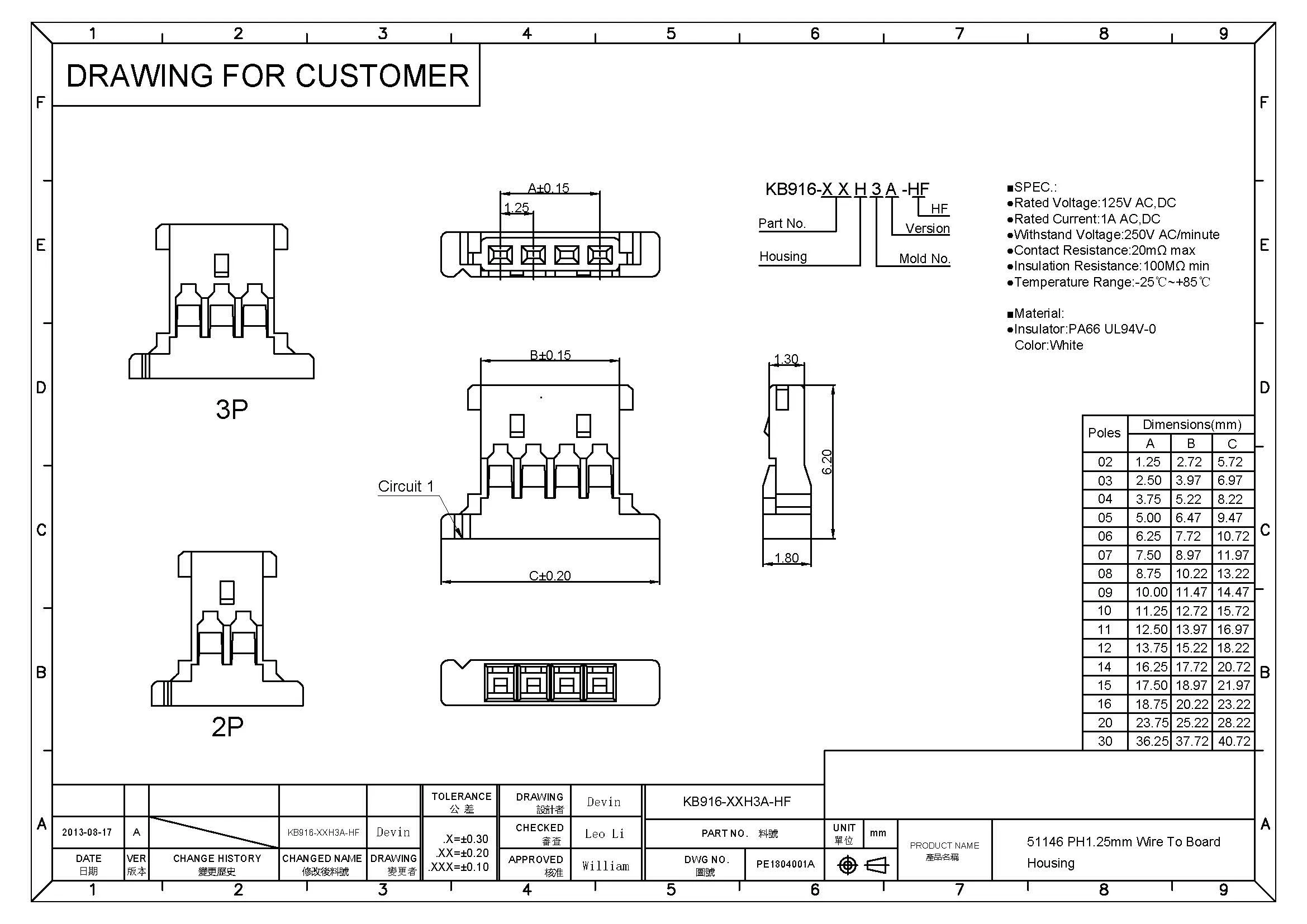

Yes. Request PDF technical drawings and detailed specifications using the form above (click “Download Specifications & Request a Quote”). Engineering support is available for custom assembly design.
10. Are samples available?
Yes. Sample units are available for qualification testing. Contact our sales team via the email below for sample requests, custom configuration quotes, and bulk pricing for production orders.
