SH1.0 Wire Harness – Custom Orders Welcome
The SH1.0 Wire Harness is a compact, high-precision wire assembly designed for applications requiring reliable signal and power transmission in tight spaces. With a 1.0mm connector pitch, this harness is ideal for consumer electronics, industrial control systems, medical devices, and new energy equipment.
Product Specifications:
| Specification | Details |
|---|---|
| Product Model | SH1.0 Wire Harness |
| Connector Pitch | 1.0mm |
| Wire Harness Model | UL1571 |
| Maximum Temperature Rating | 80°C |
| Maximum Voltage | 300V |
| Wire Insulation Material | PVC Lead-Free Polyvinyl Chloride |

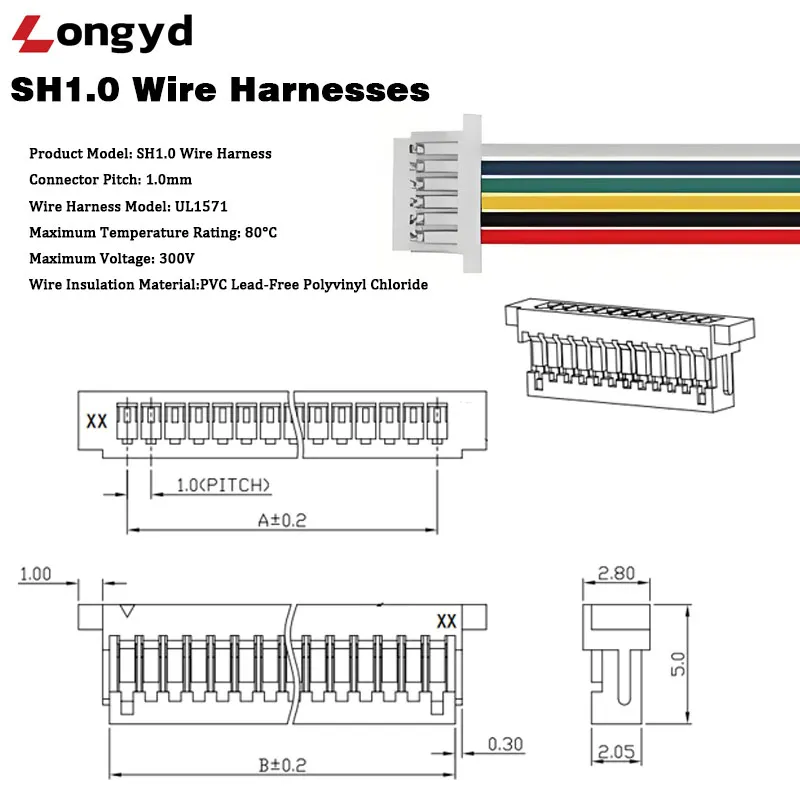

Dimensional Reference:
- Connector height: 5.0mm
- Connector width: 2.80mm
- Terminal width: 2.05mm
- Wire diameter: 1.00mm
- PCB insertion depth: 0.30mm
- Pitch: 1.0mm (standard)
Key Features:
- Compact 1.0mm pitch design for space-saving installations
- UL1571 certified wire for safety and reliability
- Lead-free PVC insulation — environmentally compliant
- Rated up to 300V and 80°C for demanding environments
- Precision-molded connectors ensure stable, secure connections
- Available in multiple pin counts to suit your application
Custom Orders Welcome
We specialize in custom wire harness manufacturing. Whether you need a specific pin count, wire length, color coding, or connector configuration, we can produce it to your exact requirements.
📩 Contact us to customize the wire harness specifications you need.
E-mail:nick.xu@lyd123.com
Customization Available:
For custom lengths or bulk pricing, please email us:
nick.xu@lyd123.com
