2.3mm IP67 waterproof wire harness Product Overview
Upgrade your connectivity solutions with our high-performance 2.3mm IP67 waterproof wire harness. Specifically designed to withstand moisture, dust, and vibration, this series provides a secure interface for demanding industrial, automotive, and outdoor applications. Available in configurations from 2 to 12 pins, these assemblies are built to meet rigorous quality standards for long-lasting reliability.
2.3mm IP67 waterproof wire harness Key Features
• UL1007 Certified Quality: Utilizing premium UL1007 PVC insulated tinned copper wire, rated for 300V and up to 80°C, ensuring excellent flame retardancy and anti-corrosion properties.
• Superior Waterproofing: Equipped with high-quality silicone seals and a secure locking mechanism to prevent water, dust, and moisture ingress (IP67 rated performance).
• Plug-and-Play Design: Features a user-friendly snap-lock design for quick mating and unmating, with built-in polarization to prevent mis-mating.

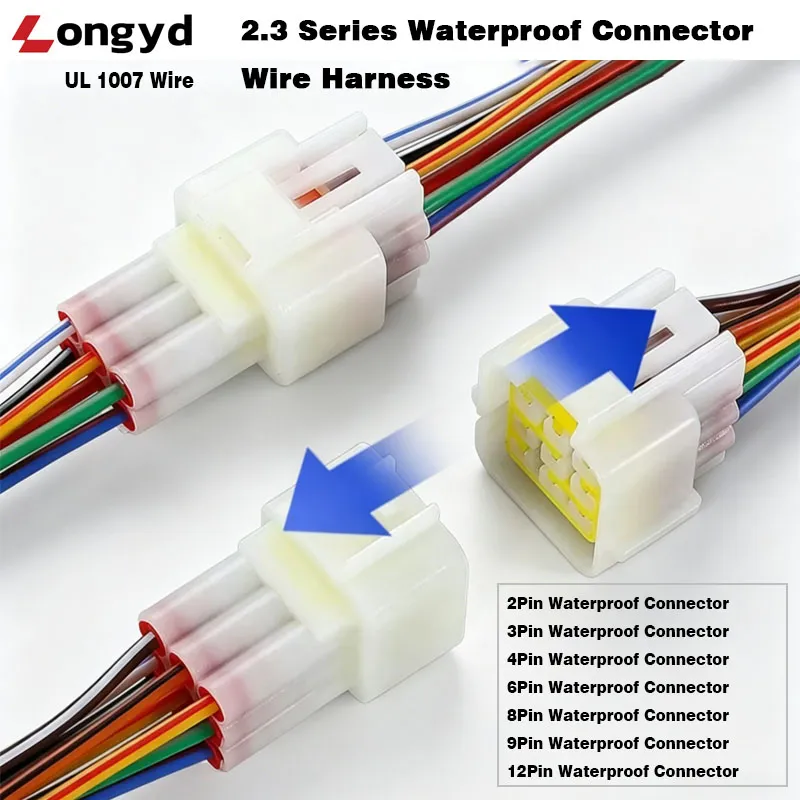

• Versatile Configurations: Available in 2, 3, 4, 6, 8, 9, and 12-pin layouts to suit various circuit requirements.
• Customization Available: We support custom wire lengths, gauges (AWG), and specialized terminal crimping to fit your specific project needs.
| Feature | Details |
| Pitch | 2.3 mm |
| Wire Standard | UL1007 (PVC Insulation / Tinned Copper) |
| Current Rating | 3A – 5A (Depending on wire gauge) |
| Voltage Rating | 300V AC/DC |
| Temperature Range | -40°C to +80°C |
| Waterproof Grade | IP67 Equivalent |
| Housing Material | High-temp Nylon / PBT |
Applications
Automotive & E-Mobility: Sensors, lighting systems, and BMS wiring for EVs and drones.
Industrial Automation: Robot arm internal wiring and waterproof sensor connections.
Outdoor Electronics: LED signage, landscape lighting, and outdoor security cameras.
Marine Equipment: Dashboard wiring and small boat electrical systems.
Why Choose Us?
As a direct manufacturer, we offer competitive pricing without sacrificing quality. Whether you need standard inventory or a customized solution for your specific application, our team is dedicated to providing high-reliability components with fast turnaround times.
Contact us today to request a quote or discuss your custom project requirements.
Frequently Asked Questions
1. What makes this wire harness waterproof?
This harness is equipped with high-quality silicone seals and a secure locking mechanism, rated to IP67 equivalent for protection against water, dust, and moisture ingress. The IP67 rating ensures the connector withstands temporary immersion in water (up to 1 meter for 30 minutes), making it suitable for outdoor, automotive, and marine applications.
2. What is the electrical rating?
The harness is rated for 3A – 5A current (depending on wire gauge used) and 300V AC/DC. The UL1007 PVC insulated tinned copper wire is rated for 300V and up to 80°C, with operating temperature range of -40°C to +80°C for the full assembly.
3. What wire standard is used?
The harness uses UL1007 certified PVC insulated tinned copper wire, providing excellent flame retardancy and anti-corrosion properties. UL1007 certification ensures consistent insulation quality and compliance with North American safety standards for internal wiring applications.
4. What pin configurations are available?
Available in 2, 3, 4, 6, 8, 9, and 12-pin layouts to suit various circuit requirements. This wide range covers simple power connections to multi-signal interfaces for sensors, lighting, and control modules.
5. What is the locking mechanism and how does it prevent mis-mating?
The harness features a user-friendly snap-lock design for quick mating and unmating, with built-in polarization to prevent reverse insertion (mis-mating). This ensures correct orientation every time, critical for field installation where visual confirmation may be limited.
6. What housing materials are used?
The housing is made of High-temp Nylon / PBT, providing robust mechanical strength and thermal stability for demanding environments. The combination of silicone seals and secure snap-lock ensures long-term sealing performance even under vibration and thermal cycling.
7. What are the primary application areas?
Key applications include automotive and e-mobility (sensors, lighting systems, BMS wiring for EVs and drones), industrial automation (robot arm internal wiring, waterproof sensor connections), outdoor electronics (LED signage, landscape lighting, outdoor security cameras), and marine equipment (dashboard wiring, small boat electrical systems).
8. What customization options are available?
We support custom wire lengths, gauges (AWG), and specialized terminal crimping to fit specific project needs. As a direct manufacturer, we offer competitive pricing for custom configurations from prototype to mass production.
9. Do you provide technical datasheets?
Yes. Request PDF technical drawings and detailed specifications using the form above (click “Download Specifications & Request a Quote”). Our engineering team can also provide custom wiring diagrams and assembly drawings based on your requirements.
10. Are samples available for testing?
Yes. We offer sample units for qualification testing, including IP67 ingress protection verification and electrical continuity testing. Contact our sales team via the email below for sample requests, bulk pricing, and custom project support.
