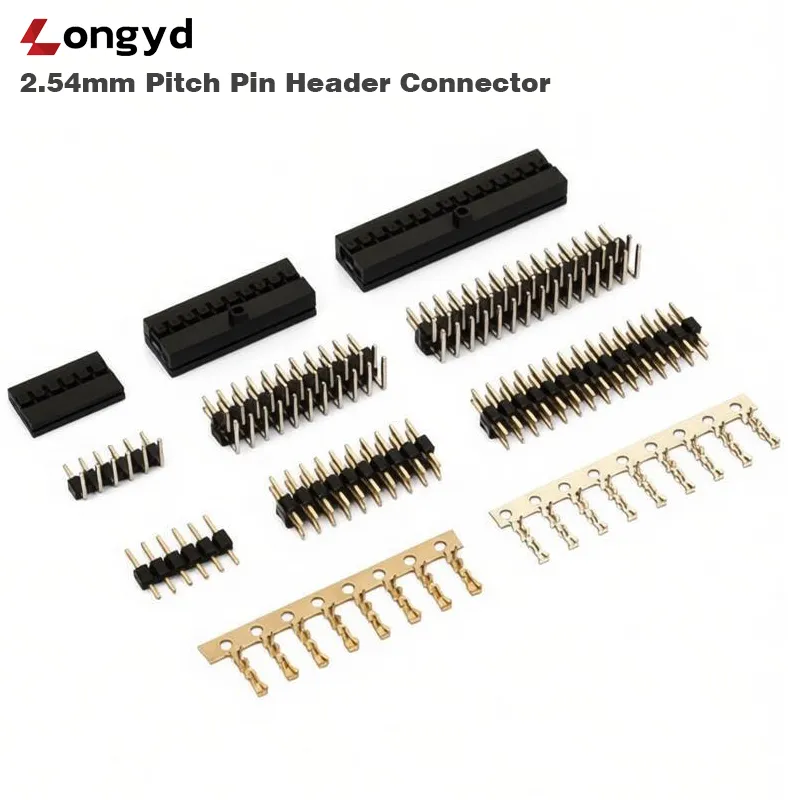

2.54mm Pitch Male Header: Industrial-Grade Board-to-Board Interconnects

The 2.54mm pitch male header is a foundational component in modern PCB design, offering reliable and versatile connectivity for a wide range of electronic modules. Designed for high-performance signal and power transmission, these headers are the industry standard for stackable board-to-board and wire-to-board applications.

Technical Specifications & Engineering Excellence

Our 2.54mm pitch male header series is manufactured with premium materials to ensure structural integrity during high-temperature assembly and long-term field operation.

• Material Performance:

  • Insulator Options: Available in PBT, PA6T, PA9T, and LCP (UL 94V-0 Rated), providing high heat deflection temperatures ideal for SMT reflow and wave soldering processes.

  • Contact Material: High-conductivity Brass or Copper Alloy to maintain signal purity.

  • Operating Temperature: Stable performance in extreme environments ranging from -40°C to +150°C.

    Parameter	Specification
    Pitch	2.54mm (0.1″)
    Number of Rows	Single Row / Dual Row / Triple Row
    Number of Pins	1×2 to 1×40 / 2×2 to 2×40 Pins
    Mounting Type	Through-Hole (THT) / Surface Mount (SMT)
    Orientation	Straight (180°) / Right Angle (90°)
    Pin Length	Standard (e.g., 6.0/3.0mm) or Customized
    Plating	Gold Flash / Tin Plated / Selective Gold

    2.54mm Pitch Male Header Electrical Integrity:

    • Current Rating: 3.0A AC/DC, capable of handling both low-power and signal-level currents.

    • Voltage Rating: 250V AC/DC.

    • Contact Resistance: 20mΩ Max to ensure minimal voltage drop across junctions.

    • Insulation Resistance: 1000MΩ Min for exceptional circuit isolation.

• Design Flexibility & Customization

  As a leading 2.54mm pitch male header supplier, we provide extensive mechanical configurations to meet your specific PCB layout requirements.

  • Pitch & Row Options: Standard 2.54mm (0.1″) spacing in Single, Dual, or Triple Row configurations.

  • Pin Count: Flexible pin counts from 1×2 up to 1×40 (or 2×2 to 2×40) per row.

  • Mounting Styles: Through-Hole (THT) for mechanical strength and Surface Mount (SMT) for high-density, automated PCB assembly.

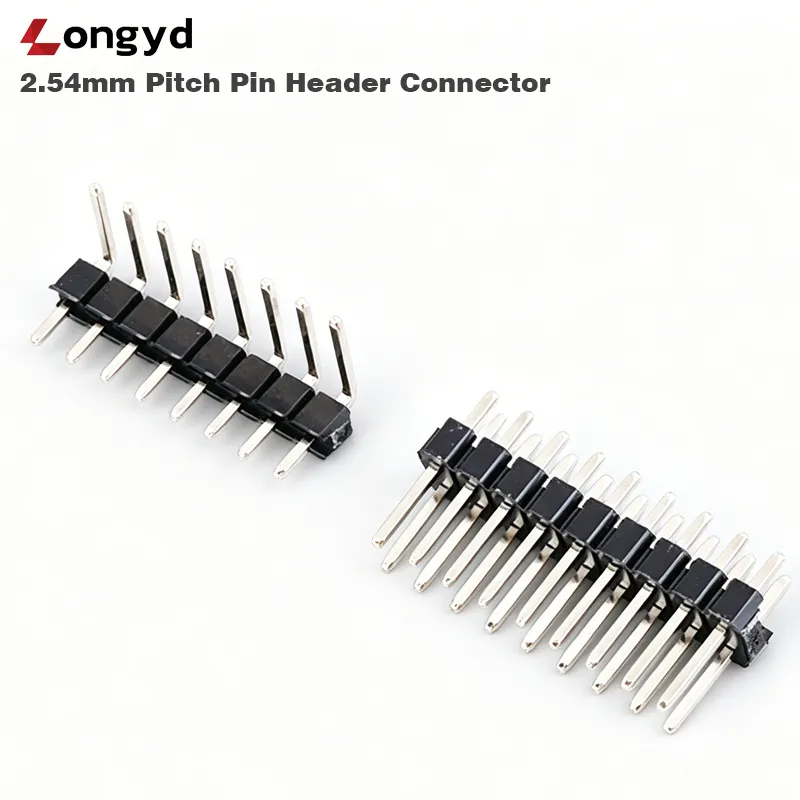

  • Orientation: Straight (180°) for vertical stacking or Right Angle (90°) for low-profile horizontal connections.

  • Customization: Precise pin lengths (e.g., 6.0/3.0mm) and varied plating options including Gold Flash, Tin Plated, or Selective Gold to combat oxidation and enhance solderability.

  2.54mm Pitch Male Header Primary Application Scenarios

  The 2.54mm pitch connector is the trusted interconnect solution for several key sectors:

  1. Industrial Control & Automation: Reliable interfaces for PLCs, sensors, and modular automation controllers.

  2. Mainboards & Prototyping: Fully compatible with Arduino, Raspberry Pi, and other expansion board ecosystems.

  3. Telecommunications: Board-to-board stacking in network switches, routers, and high-speed communication hardware.

  4. Smart Home & IoT: Compact and robust connectivity for smart sensors, gateways, and IoT modules.

  5. Power & BMS: Efficient power signal routing in Battery Management Systems (BMS) and high-density power supplies.

Frequently Asked Questions

1. What configurations are available for the 2.54mm male header?

This series is available in Single Row (1×2 to 1×40 pins), Dual Row (2×2 to 2×40 pins), and Triple Row configurations, with both Straight (180°, vertical) and Right Angle (90°, horizontal) mounting options. This provides broad flexibility for PCB stacking, motherboard-to-daughterboard connections, and space-constrained layouts.

2. What is the electrical rating?

Rated for 3.0A AC/DC at 250V AC/DC, with a maximum contact resistance of 20mΩ and insulation resistance of 1000MΩ minimum. These specifications ensure stable signal transmission and reliable power delivery in both industrial control and consumer electronic applications.

3. What insulator materials are available?

Four options: PBT (cost-effective for standard applications), PA6T (higher heat deflection for SMT processes), PA9T (improved moisture resistance and mechanical strength), and LCP (highest temperature rating for lead-free reflow soldering). All are UL 94V-0 rated for flame retardancy.

4. What is the operating temperature range?

The connector operates from -40°C to +150°C depending on the selected insulator material. LCP offers the highest thermal performance for demanding industrial or automotive environments, while PBT provides a cost-effective solution for standard indoor applications.

5. What contact materials and plating options are offered?

Contacts are made of high-conductivity Brass or Copper Alloy. Plating options include Gold Flash, Tin Plated, and Selective Gold, allowing you to balance cost and performance based on your application’s mating cycle requirements and environmental conditions.

6. What mounting technologies are supported?

Both Through-Hole (THT) for wave soldering and Surface Mount (SMT) for reflow soldering are supported. The high-temperature insulator options (PA6T, PA9T, LCP) withstand the peak temperatures required for lead-free reflow profiles.

7. What pin lengths and packaging options are available?

Standard pin lengths are e.g. 6.0mm tail / 3.0mm mating, with full customization available for specific stack heights. Packaging options include Tube, Box, and Tape & Reel for automated pick-and-place assembly.

8. What are the primary application areas?

Key applications include industrial control and automation (PLCs, sensors), mainboard prototyping (Arduino, Raspberry Pi ecosystems), telecommunications equipment (switches, routers), smart home and IoT modules, and Battery Management Systems (BMS) in power supplies.

9. Do you provide technical datasheets?

Yes. Request PDF technical drawings and detailed specifications using the form above (click “Download Specifications & Request a Quote”). Our engineering team can also assist with footprint recommendations and custom design support.

10. Can I get customized pin lengths or special packaging?

Yes. We support customized pin lengths (tail and mating length), plastic heights, and packaging options including Tube, Box, and Tape & Reel for automated assembly. Contact our sales team via the email below for custom requirements and bulk pricing.
