2.0mm Pitch Wire-to-Board Connector Product Overview
The 2.0mm Pitch Wire-to-Board Connector series (PH type compatible) provides a reliable, compact, and high-performance solution for modern electronic devices where PCB space is at a premium. By utilizing advanced Surface Mount Technology (SMT), the wafers ensure excellent co-planarity and high mechanical stability, making them ideal for high-speed automated reflow soldering processes.

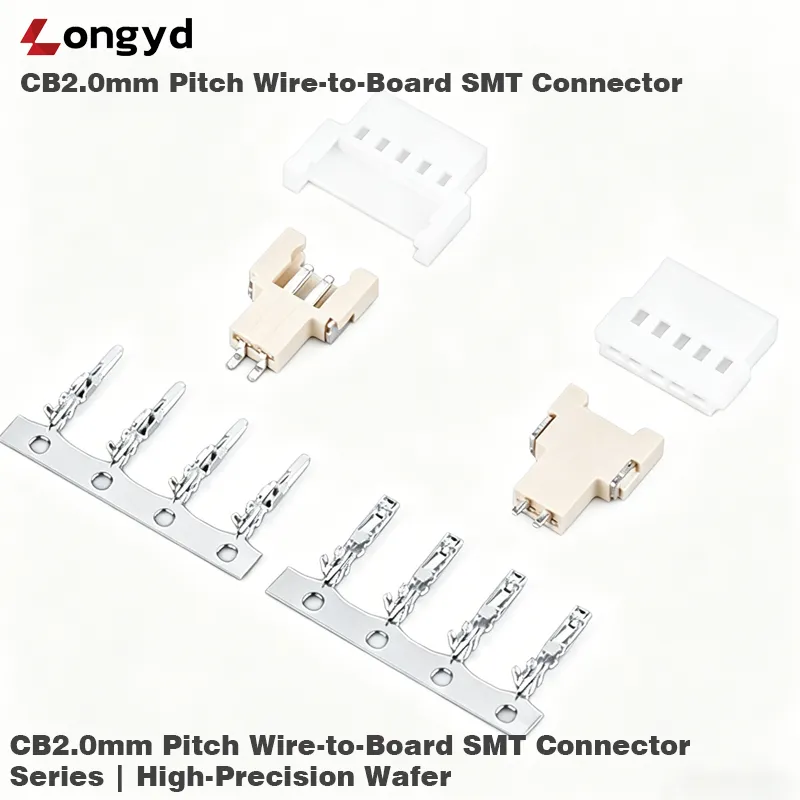

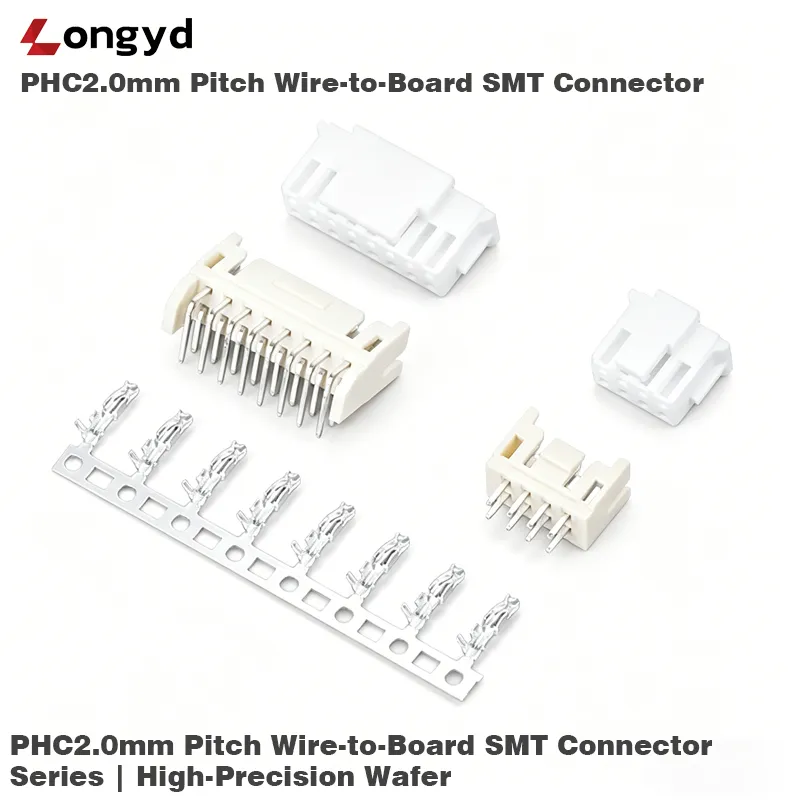

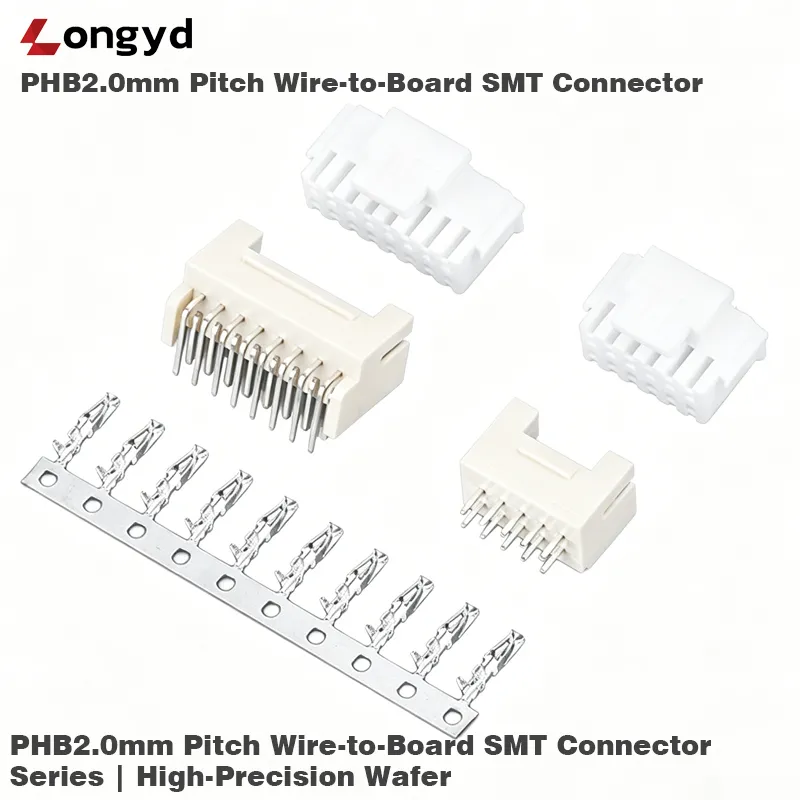

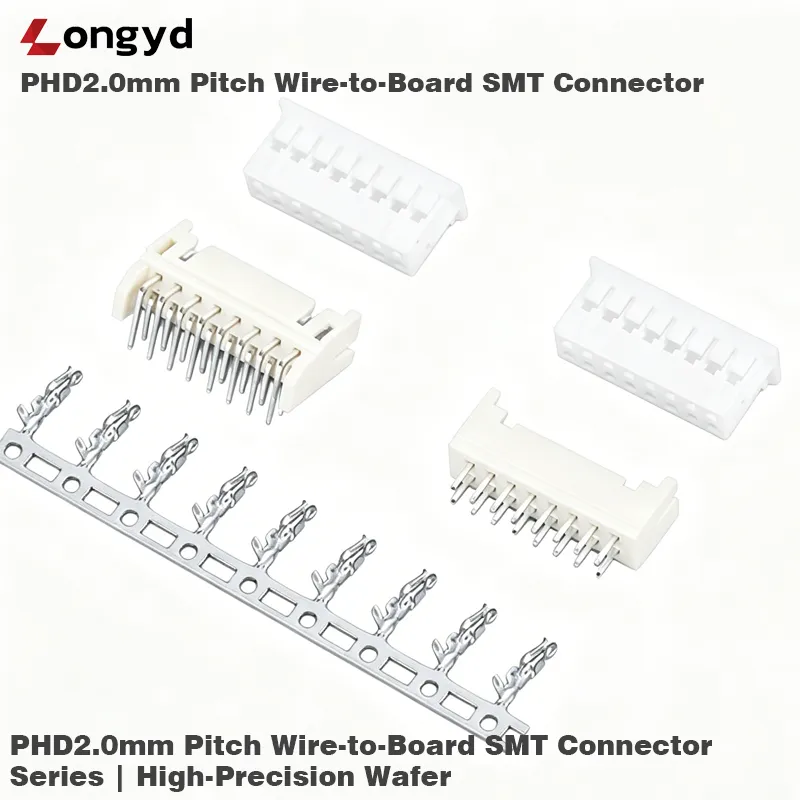

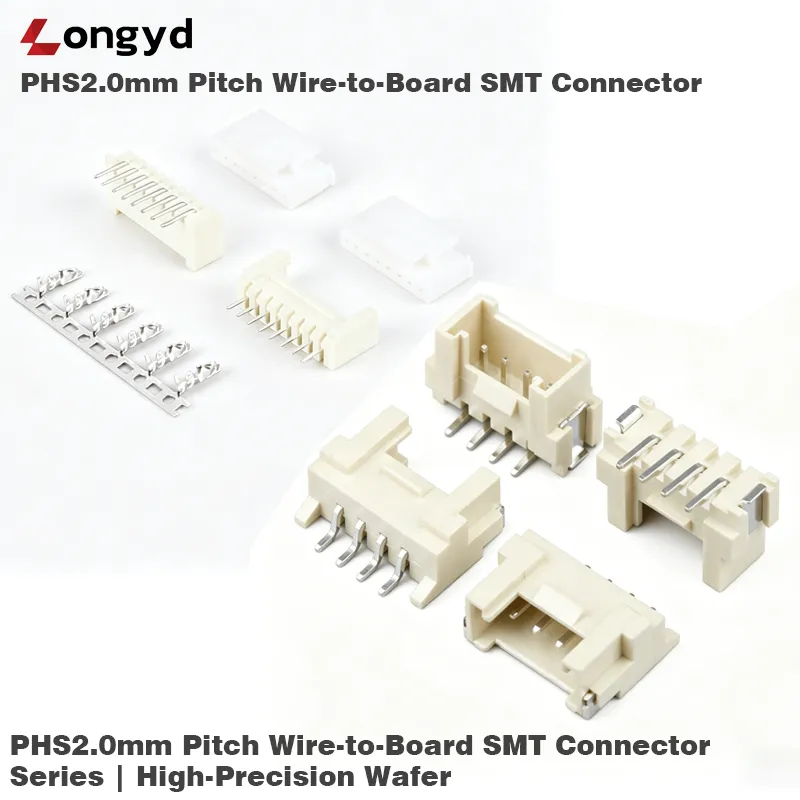

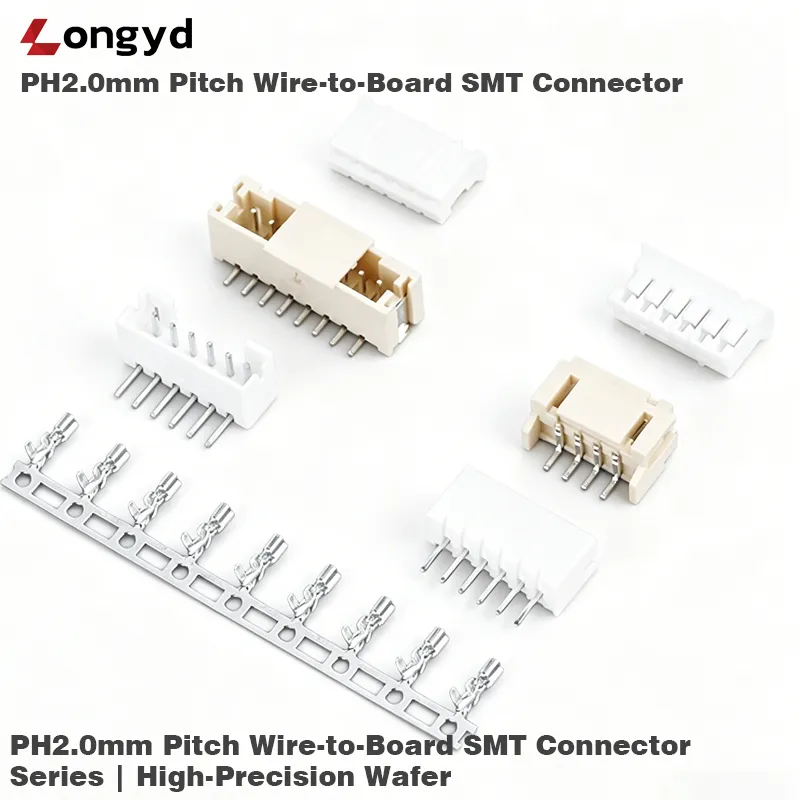

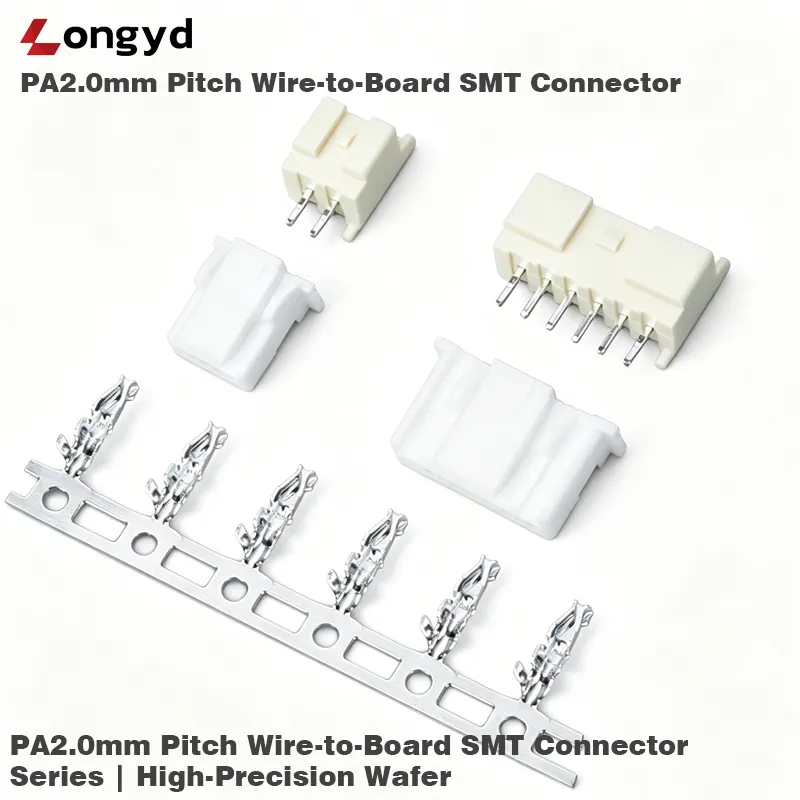

This complete interconnect system consists of high-precision SMT wafers (available in vertical and right-angle designs), reliable plug housings with integrated friction locks, and high-retention crimp terminals, ensuring stable signal and power transmission even under vibration.
Key Features & Advantages
-
Space-Saving Design: The 2.0mm low-profile pitch reduces PCB footprint while maintaining excellent insulation and reliable electrical performance.
-
SMT Reflow Compatible: Molded from premium, high-temperature resistant thermoplastics (such as LCP or Nylon 9T, UL94V-0), the wafer withstands lead-free reflow soldering temperatures without deformation.
-
Enhanced PCB Retention: Equipped with robust metal reinforcing tabs (solder clips) that provide superior peel strength and protect solder joints from mechanical stress during mating.
-
Secure Friction Lock: The housing design includes a friction-locking mechanism that ensures a positive tactile click when fully mated, preventing accidental pull-out.
2.0mm Pitch Wire-to-Board ConnectorTechnical Specifications
Use the detailed parameters below to select the exact setup for your project:
| Parameter | Specifications |
| Product Series | PH Series Compatible (Wire-to-Board) |
| Pitch | 2.00 mm |
| Mounting Type | Surface Mount Technology (SMT / SMD) |
| Orientation | Straight (Vertical) / Right-Angle (Horizontal) |
| Circuits / No. of Pins | 2P to 16P (Standard options include 2P, 3P, 4P, 5P, 6P, 7P) |
| Current Rating | 2A AC/DC (AWG #24) |
| Voltage Rating | 250V AC/DC |
| Contact Resistance | ≤20ｍΩ(Initial) |
| Insulation Resistance | ≥ 1000ｍΩ |
| Withstanding Voltage | 800V AC/minute |
| Operating Temperature | -25℃ to +85℃ (Including temperature rise) |
| Material – Wafer Pin | Brass, Tin-plated |
| Material – Solder Tab | Phosphor Bronze, Tin-plated |
Applications
Our high-precision 2.0mm Pitch Wire-to-Board Connector is trusted worldwide across a wide range of industries:
-
Smart Home & Appliances: Smart thermostats, robotic vacuums, and IoT device mainboards.
-
Industrial & Automation: Control modules, sensor displays, and power distribution boards.
-
Consumer Electronics: Drone flight controllers, LED backlights, and 3D printer interfaces.
Professional OEM/ODM Capabilities
As an experienced B2B manufacturer specializing in high-precision connector molding and terminal crimping, we provide fully customized solutions. Whether you need specific pin counts, gold-plated options, or turnkey wire harness assemblies custom-cut to your technical drawings, our engineering team ensures strict quality control and global standards compliance.
Customization Available:
For custom lengths or bulk pricing, please email us:
nick.xu@lyd123.com
