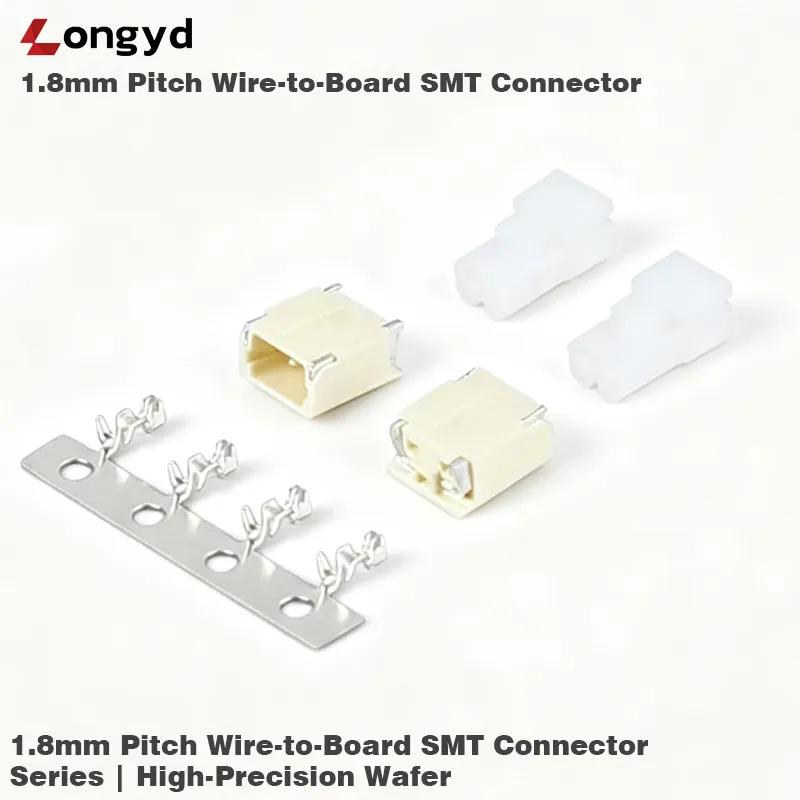

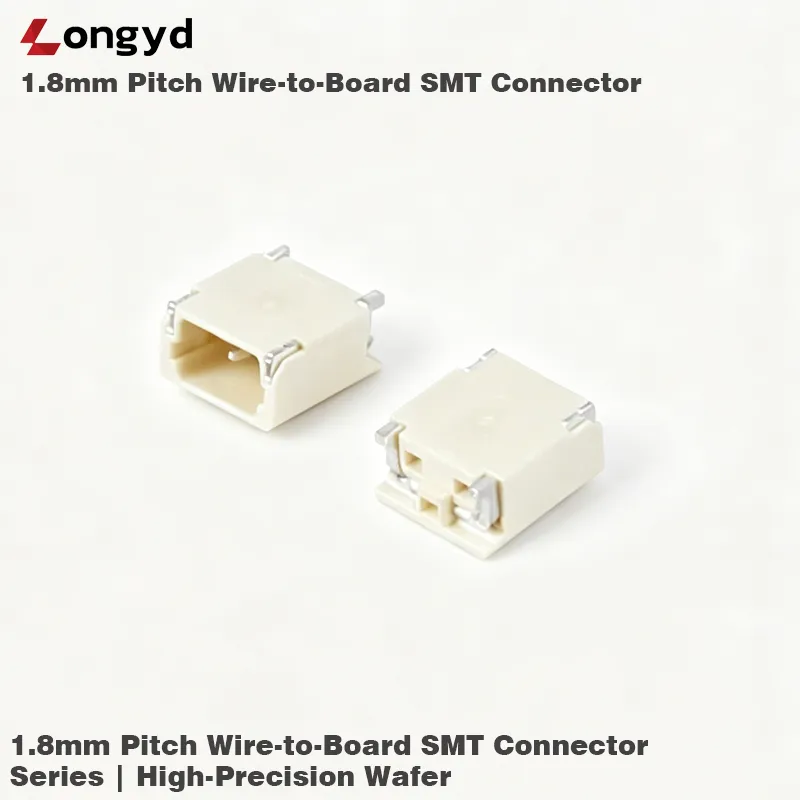

1.8mm Pitch Wire-to-Board SMT Connector Series

1.8mm Pitch Wire-to-Board SMT Connector Series

Product Overview

This 1.8mm pitch wire-to-board SMT connector series delivers high-reliability electrical connectivity for modern electronics and industrial applications. Designed for surface-mount technology, it ensures stable and consistent signal transmission across compact layouts, offering engineers a versatile interfacing solution for diverse design configurations.

By standardizing connector footprints, these components streamline manufacturing processes. The series supports various current requirements with highly efficient performance, while the SMT design fully compatible with automated high-speed pick-and-place assembly to boost production efficiency. Backed by rigorous quality control, every component is fully validated to meet stringent project specifications.

1.8mm Pitch Wire-to-Board SMT Connector Technical Specifications & Electrical Performance

Our connectors deliver stable electrical characteristics under demanding conditions. With a rated current up to 2.5A and a 125V voltage rating, this series accommodates a wide range of power and signal distribution needs. The robust design guarantees stable performance even under extreme temperature fluctuations.

Furthermore, premium contact materials ensure excellent mechanical durability over repeated mating cycles. Environmental and comprehensive electrical testing validate that the connectors maintain low contact resistance and high reliability in harsh industrial environments.

Key Advantages of Surface Mount Technology (SMT)

• Automated Assembly: The coplanarity and standardized geometry allow for precise automated pick-and-place, drastically reducing assembly complexity and soldering defects.

• Space-Efficient Design: The ultra-compact 1.8mm pitch layout minimizes PCB footprint, enabling high-density integration and product miniaturization.

• Quality Consistency: Automated production coupled with inline optical inspection ensures consistent quality standards across high-volume production runs.

Target Applications

• Industrial Automation: PLC systems, servo drives, and industrial control boards.

• Automotive Electronics: In-vehicle infotainment, lighting systems, and body electronics.

• Telecom & Data Communications: Network switches, routers, and communication modules.

• Consumer Electronics: Smart home appliances, handheld devices, and drones.

• Medical & Instrumentation: Patient monitoring devices and precision measuring equipment.

Quality Assurance & Reliability Testing

Longyd ensures that every component complies with strict international quality standards. Our QA pipeline includes:

• Electrical Verification: Contact resistance, insulation resistance, and dielectric withstanding voltage tests.

• Environmental Testing: Thermal shock, humidity aging, and salt spray resistance to guarantee long-term durability.

• Mechanical Validation: Insertion/extraction force profiling and cycle-life testing to ensure reliable mating retention.

B2B Supply of 1.8mm Connectors for Industrial Electronics

As a reliable 1.8mm connectors manufacturer and supplier, Longyueda provides 1.8mm pitch wire-to-board SMT connector series tailored for compact industrial electronics. Our 1.8mm SMT connectors support 2-2.5A at 125V with right-angle and vertical orientation options, ideal for space-constrained PCB designs in automation, instrumentation, and control systems. We support B2B OEM/ODM orders with custom pin counts and packaging options.

Frequently Asked Questions

1. What is the 1.8mm pitch connector best suited for?

The 1.8mm pitch is a space-saving intermediate pitch size optimally positioned between standard 2.0mm and fine-pitch 1.25mm connectors. It is widely used in industrial control boards, instrumentation, compact power supplies, and automation equipment where PCB real estate is limited but higher current capacity (2.0A – 2.5A) is still required.

2. What pin counts and mounting orientations are available?

This series offers 2P to 15P configurations in both Right-Angle (Horizontal) and Straight (Vertical) SMT mounting orientations. This flexibility allows engineers to select the optimal configuration for compact PCB layouts in diverse product designs.

3. What is the electrical rating?

Rated current is 2.0A – 2.5A AC/DC with a rated voltage of 125V AC/DC. The Phosphor Bronze contacts with Tin or Gold plating ensure low contact resistance and stable electrical performance across repeated mating cycles and environmental stress.

4. What is the operating temperature range?

The connector operates from -40°C to +105°C, covering industrial automation, automotive electronics, and telecommunications environments. The high-temperature thermoplastic housing (UL94V-0) withstands lead-free reflow soldering and provides dimensional stability across this range.

5. What contact materials and plating options are offered?

Contacts are made of Phosphor Bronze with Tin or Gold Plating options. Tin plating provides a cost-effective solution for standard applications, while gold plating offers superior corrosion resistance and higher mating cycle durability for demanding industrial and medical environments.

6. Is this connector optimized for automated SMT assembly?

Yes. The coplanarity and standardized geometry of the SMT design allow for precise automated pick-and-place assembly. The standardized footprints streamline manufacturing, and automated production with inline optical inspection ensures consistent quality across high-volume production runs.

7. What are the primary application areas?

Key applications include industrial automation (PLC systems, servo drives, industrial control boards), automotive electronics (in-vehicle infotainment, lighting systems, body electronics), telecom and data communications (network switches, routers, communication modules), consumer electronics (smart home appliances, handheld devices, drones), and medical and instrumentation (patient monitoring devices, precision measuring equipment).

8. What quality assurance processes apply to this connector?

Quality assurance includes electrical verification (contact resistance, insulation resistance, and dielectric withstanding voltage tests), environmental testing (thermal shock, humidity aging, salt spray resistance), and mechanical validation (insertion/extraction force profiling, cycle-life testing to ensure reliable mating retention).

9. Do you provide technical datasheets?

Yes. Request PDF technical drawings and detailed specifications using the form above (click “Download Specifications & Request a Quote”). Our engineering team can also assist with footprint recommendations and custom design support.

10. Can I get custom pin counts or packaging?

Yes. We support OEM/ODM orders with custom pin counts and tape-and-reel packaging options for automated assembly lines. Contact our sales team via the email below for sample requests, custom configurations, and bulk pricing.

Customization Available:
For custom lengths or bulk pricing, please email us:
nick.xu@lyd123.com
