0.5mm Pitch FPC Connector

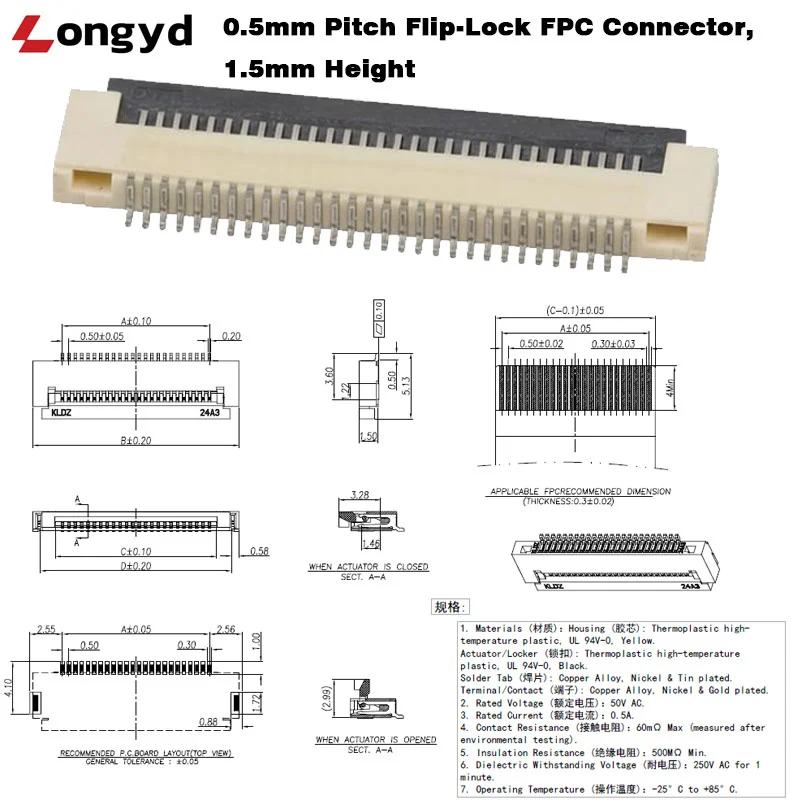

0.5mm Pitch FPC Connector Flip-Top H1.5 — Product Overview

The 0.5mm Pitch FPC Connector is engineered to meet the stringent demands of high-density electronic assemblies. With a low-profile 1.5mm height design, this SMT ZIF connector provides an optimal solution for modern, compact devices requiring reliable board-to-FPC connections, such as industrial control displays, medical imaging devices, drone control systems, and automotive dashboards.

Materials & Construction

Constructed with premium engineering materials, the housing and actuator are made from high-temperature thermoplastic (UL 94V-0 rated, Yellow/Black), making it fully compatible with automated lead-free reflow soldering processes without warping. The contacts are manufactured from high-grade copper alloy with advanced gold over nickel plating, drastically reducing contact resistance (under 40mΩ) while providing exceptional defense against oxidation and wear under cyclic operations.

0.5mm Pitch FPC Connector Technical Specifications

The user-friendly flip-lock (front-flip) mechanism delivers effortless cable insertion and an intuitive tactile feel when locked, preventing accidental wire detachment caused by vibration or thermal shock. Mechanically and electrically proven, it supports a rated voltage of 50V AC/DC and a rated current of 0.5A per pin, with an insulation resistance exceeding 500MΩ min. and a dielectric withstanding voltage up to 250V AC for 1 minute. Operating flawlessly within a wide temperature spectrum from -25°C to +85°C, this FPC connector ensures excellent longevity and uninterrupted data transmission in harsh environments.

We offer comprehensive custom FPC/FFC wire harness assemblies tailored to your technical requirements, including varied pin counts, shielding options, and custom cable lengths. Contact our engineering team today for technical support and fast prototyping samples.

Frequently Asked Questions

1. What is the application of this 0.5mm pitch FPC connector?

This is a low-profile SMT ZIF flip-top connector with a 1.5mm height, designed for high-density board-to-FPC connections in compact electronic devices. Typical applications include industrial control displays, medical imaging devices, drone control systems, and automotive dashboards where space is at a premium and reliable FPC mating is critical.

2. How does the flip-lock mechanism work?

The user-friendly front-flip (flip-top) ZIF mechanism allows effortless cable insertion: lift the actuator, insert the FPC cable, and press down to lock. The tactile feedback confirms secure locking, preventing accidental detachment caused by vibration or thermal shock during operation.

3. What are the electrical ratings?

Rated voltage is 50V AC/DC with a rated current of 0.5A per pin. Contact resistance is under 40mΩ, insulation resistance exceeds 500MΩ min., and dielectric withstanding voltage is 250V AC for 1 minute. These specifications ensure stable signal transmission and reliable isolation in demanding environments.

4. What is the operating temperature range?

The connector operates from -25°C to +85°C. The high-temperature thermoplastic housing (UL 94V-0 rated) is fully compatible with automated lead-free reflow soldering processes without warping, while maintaining mechanical integrity across the full temperature range.

5. What contact materials are used?

Contacts are made from high-grade copper alloy with advanced gold over nickel plating. This plating significantly reduces contact resistance (under 40mΩ) while providing exceptional defense against oxidation and wear over thousands of mating cycles.

6. What color and material is the housing?

Housing and actuator are yellow/black high-temperature thermoplastic rated UL 94V-0 for flammability. The dual-tone color coding aids visual identification during PCB assembly and quality inspection.

7. What FPC/FFC cable specifications does this connector accept?

Designed for standard 0.5mm pitch FPC/FFC cables. We offer comprehensive custom FPC/FFC wire harness assemblies tailored to your requirements, including varied pin counts, shielding options, and custom cable lengths to match your specific layout.

8. What are the primary application areas?

Industrial control displays and HMI panels, medical imaging equipment and diagnostic devices, drone flight control systems and camera gimbal modules, and automotive dashboards and infotainment display units where vibration-resistant FPC connections are required.

9. Do you provide technical datasheets?

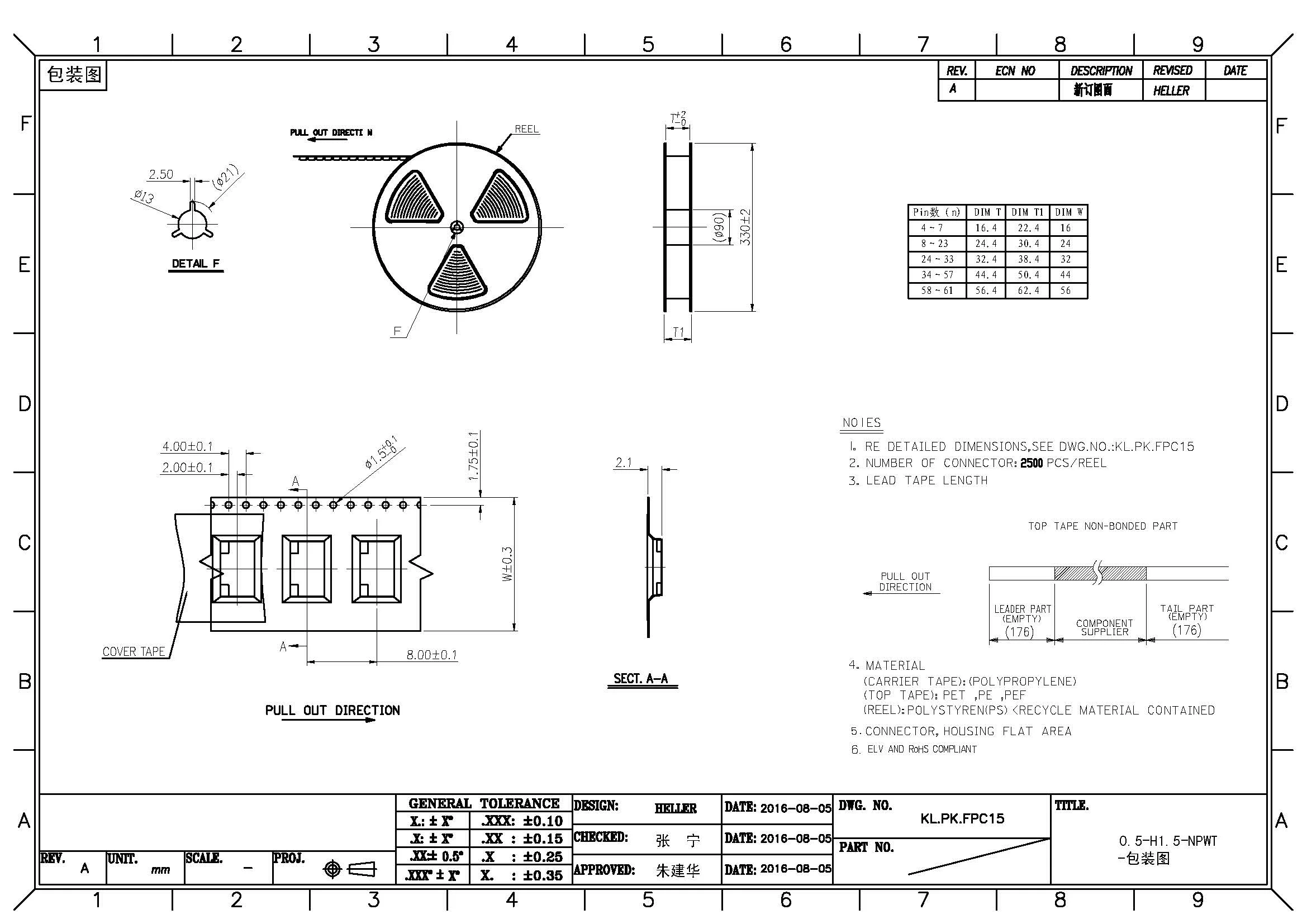

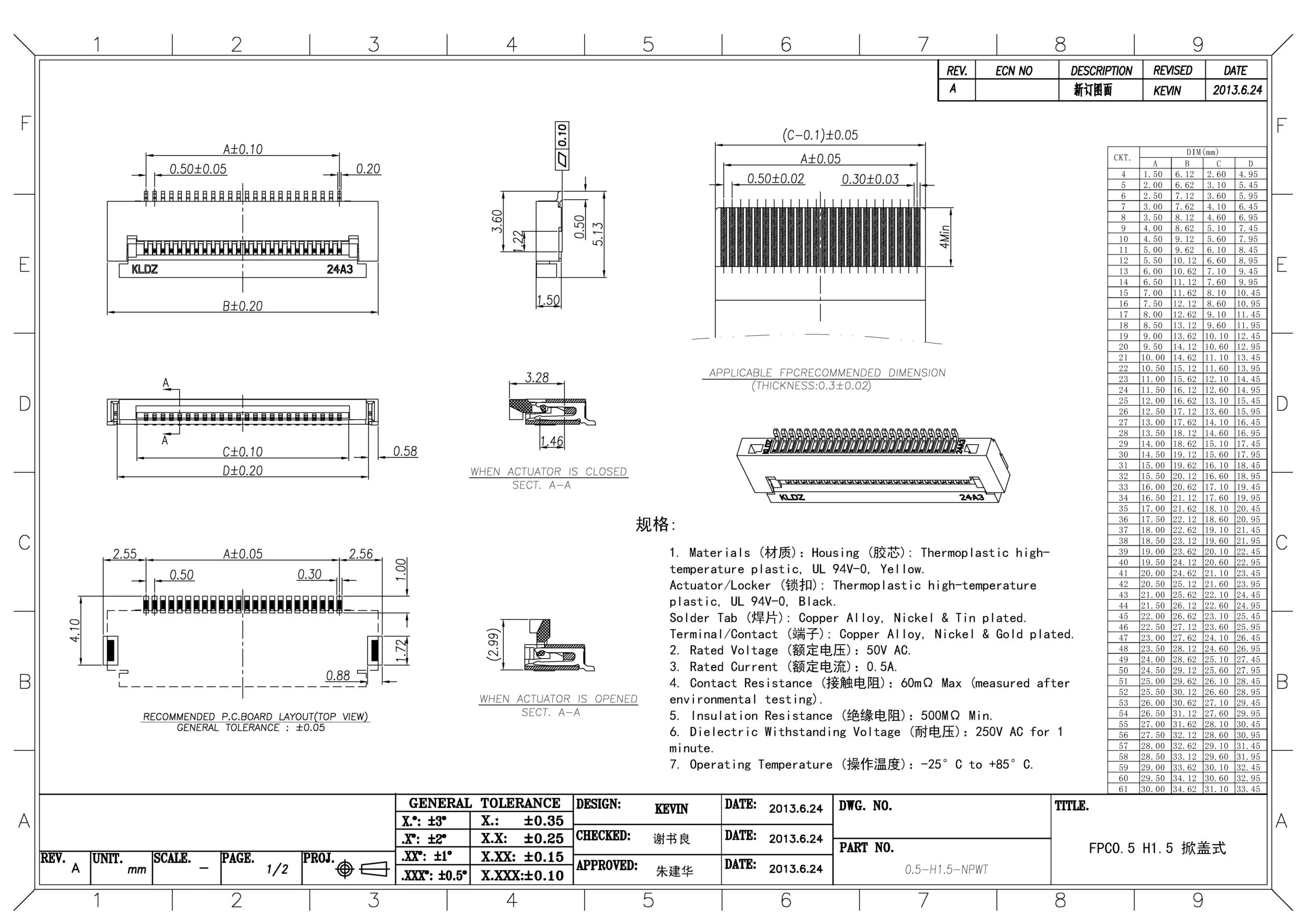

Yes. Request PDF technical drawings and detailed specifications using the form above. Our engineering team can provide dimensional drawings, soldering footprint recommendations, and mating FPC specifications for your design validation.

10. Are samples available for testing?

Yes. Sample units are available for qualification including mechanical fit validation, contact resistance measurement, and solderability testing. Contact our sales team via the email below for sample requests, custom FPC harness assemblies, and bulk pricing.
