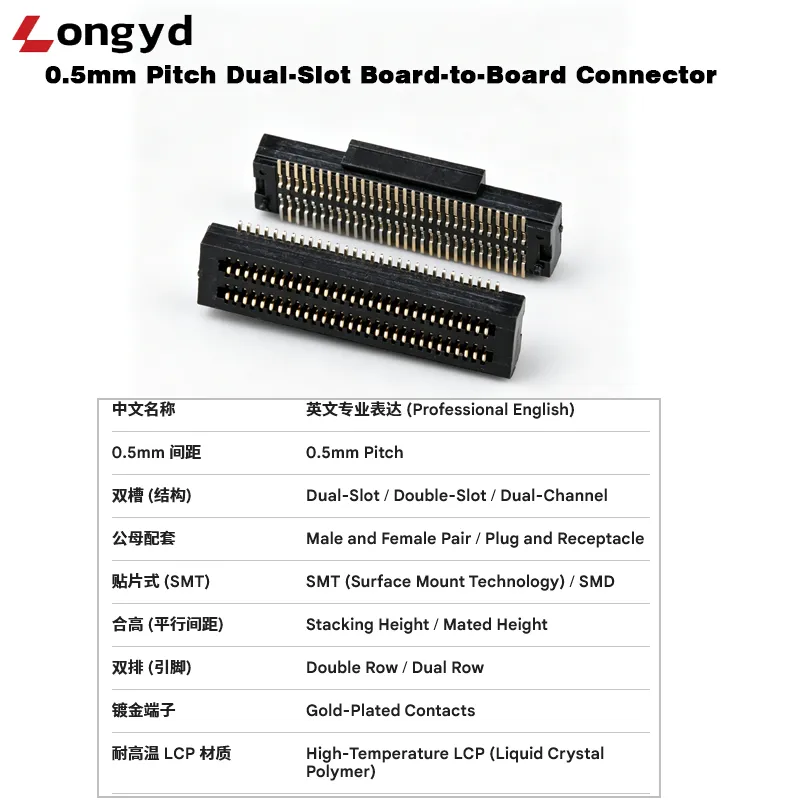

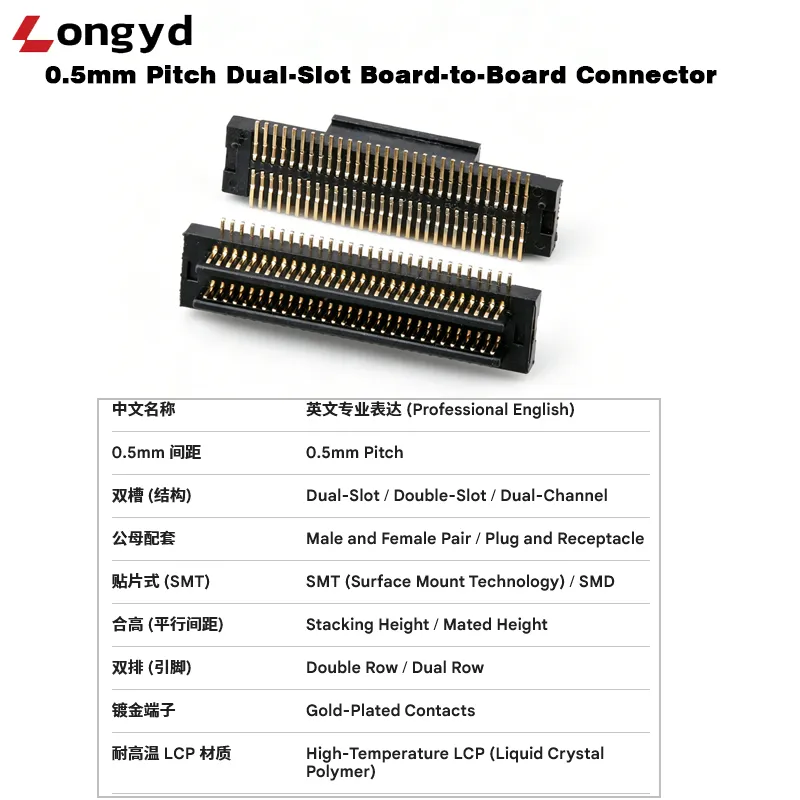

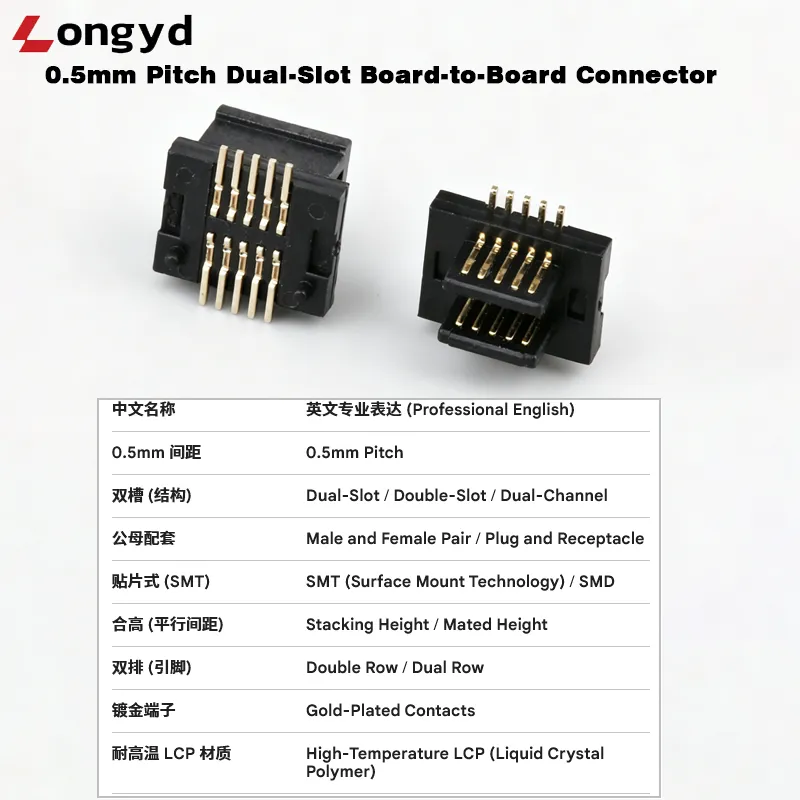

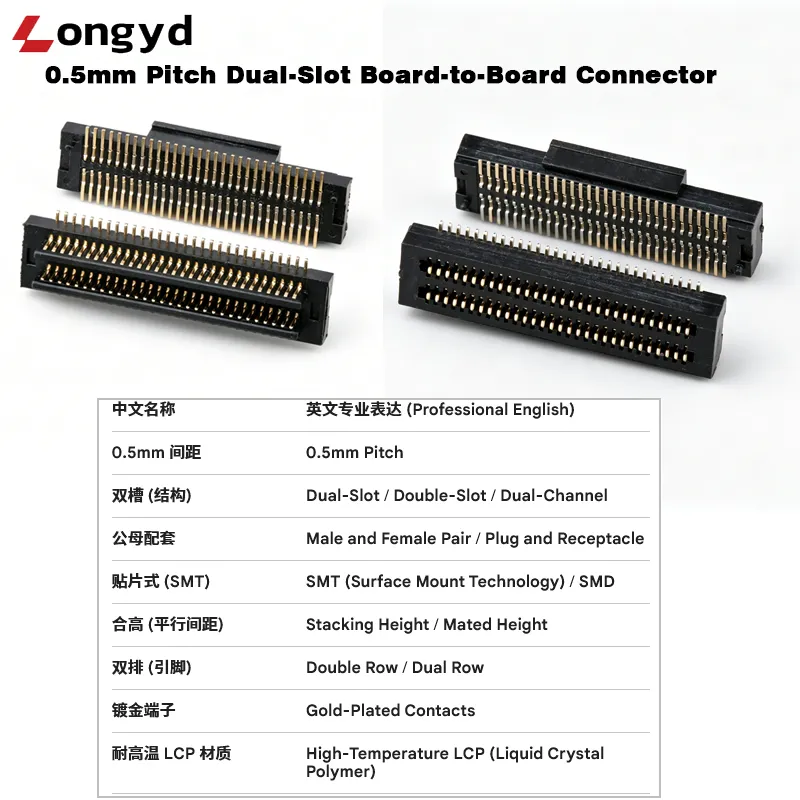

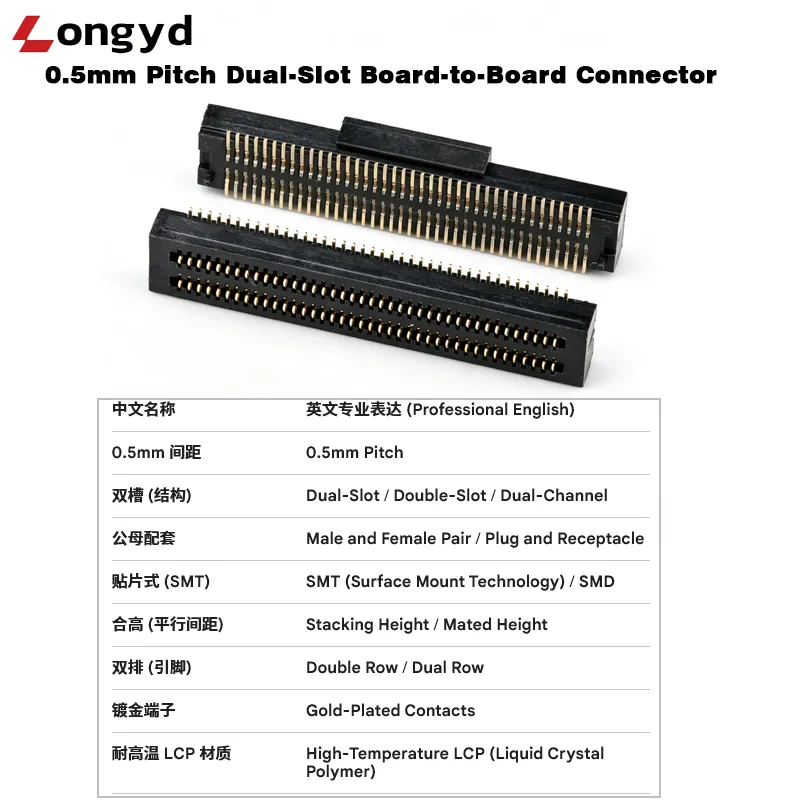

0.5mm Board-to-Board SMT Connector
Our 0.5mm Board-to-Board SMT Connector is a high-density interconnect solution designed for modern electronic devices requiring slim profiles and high-speed signal integrity. Featuring a dual-channel design, this plug and receptacle pair ensures a secure mechanical connection and superior electrical performance in a compact footprint.
Key Features
• Dual-Slot Design: Provides enhanced stability and alignment compared to single-slot connectors, ensuring a robust connection even in high-vibration environments.
• High-Temperature LCP Housing: Constructed from Liquid Crystal Polymer (LCP), which maintains structural integrity during high-heat SMT reflow soldering processes.
• Superior Conductivity: Equipped with Gold-Plated Contacts to prevent oxidation, reduce contact resistance, and ensure long-term durability over multiple mating cycles.
• Flexible Stacking Heights: Optimized for various Mated Heights, allowing for precise PCB-to-PCB spacing in space-constrained applications.
• Precision Manufacturing: Designed for automated assembly lines with SMT/SMD compatibility, improving production efficiency and yield.
Technical Specifications
| Feature | Details |
| Pitch | 0.5mm |
| Connector Type | Board-to-Board (Male & Female Pair) |
| Contact Row | Double Row / Dual Row |
| Mounting Type | Surface Mount Technology (SMT / SMD) |
| Material | High-Temperature LCP (UL94V-0) |
| Contact Plating | Gold Plating over Nickel |
| Application | Smartphones, Tablets, Wearables, Industrial Control, Automotive Electronics |
Common Applications
-
Consumer Electronics (Smartphones, Tablets, Wearables)
-
Industrial Control Systems
-
Medical Equipment
-
Communication Modules
-
Embedded Systems and IoT Devices
Why Choose Our B2B Solutions?
As a specialist in precision interconnects, we provide high-quality manufacturing with strict QC standards. Whether you are developing consumer electronics or industrial modules, our connectors deliver the reliability your project demands.
Customization Available:
For custom lengths or bulk pricing, please email us:
nick.xu@lyd123.com
