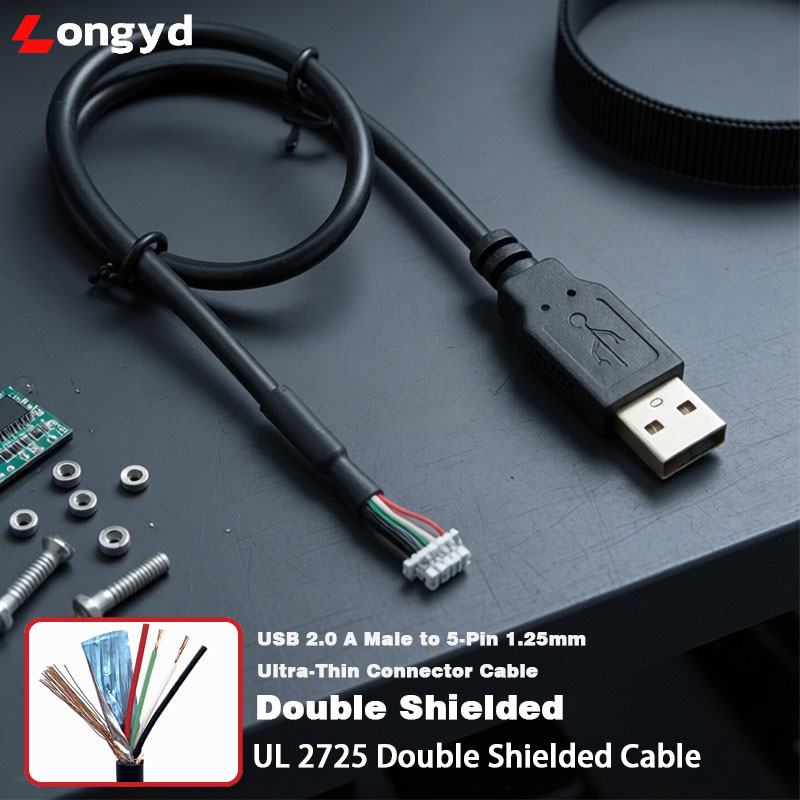

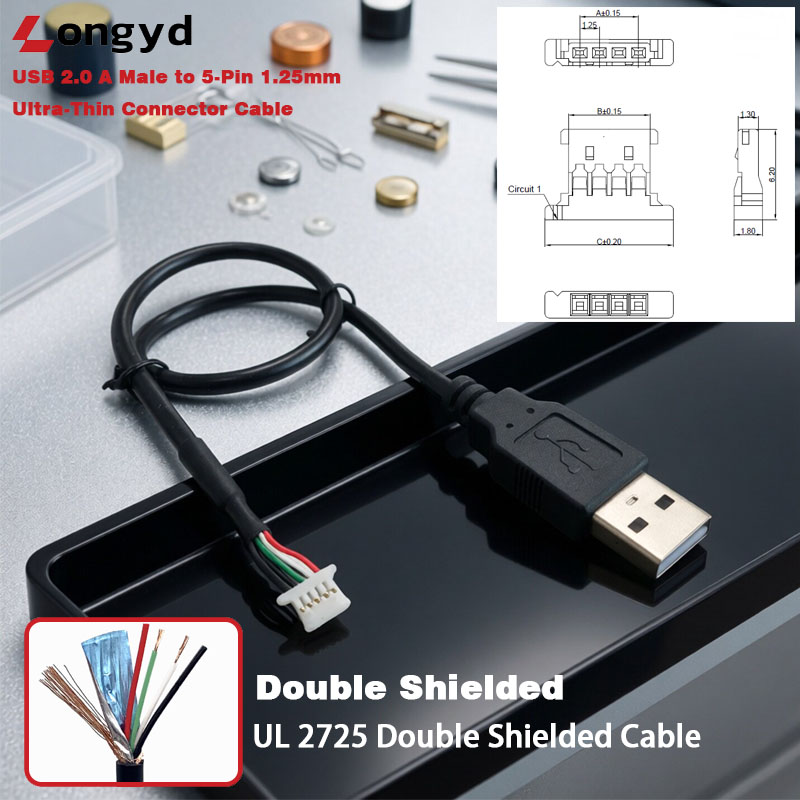

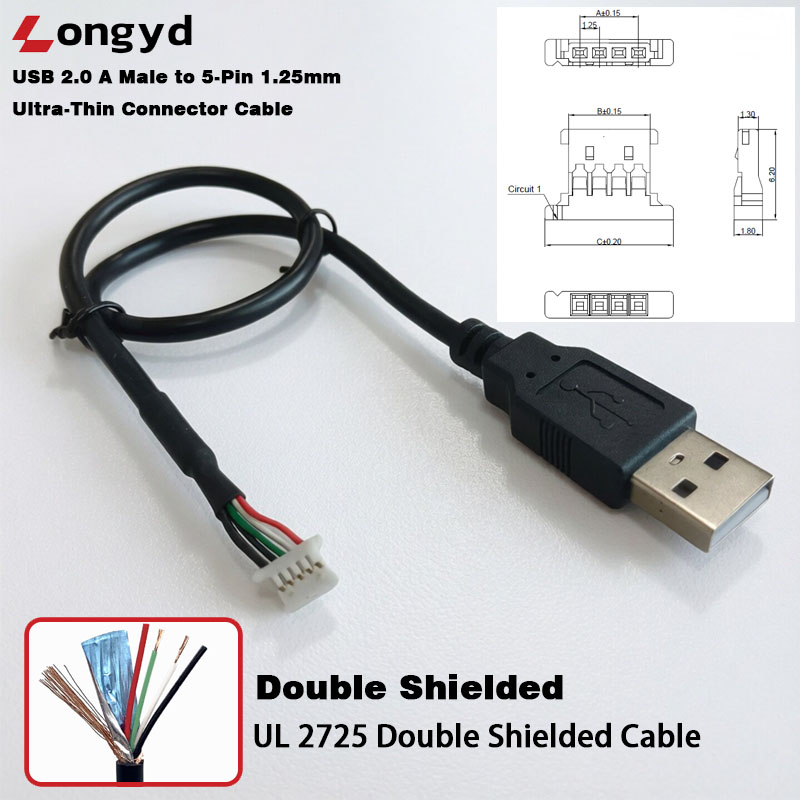

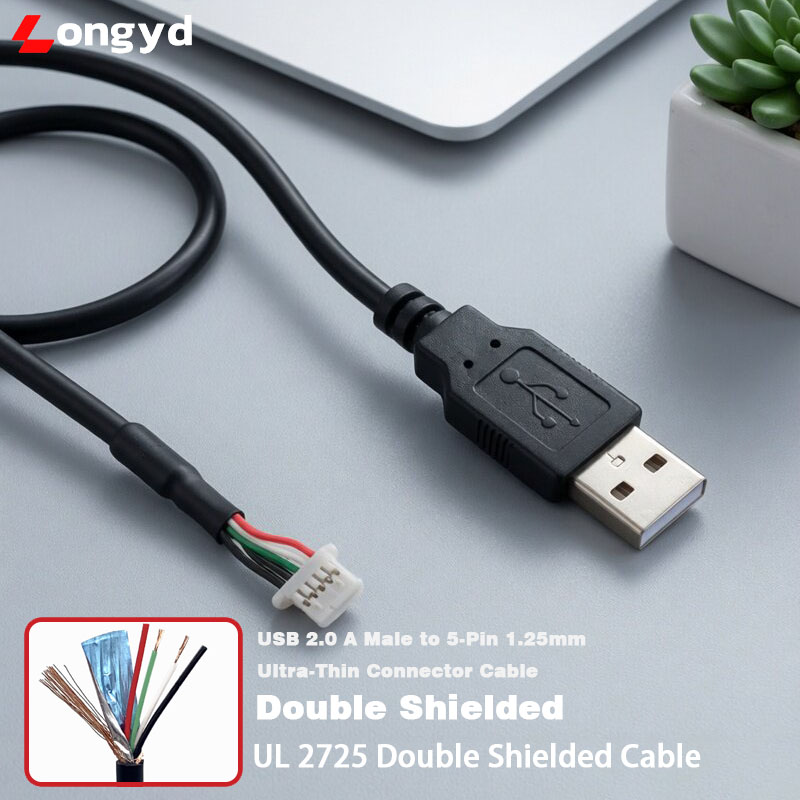

UL2725 Double Shielded USB 2.0 A to 5-Pin 1.25mm Pitch Cable, 5-Wire High-Speed Data Harness
• UL2725 Standard Compliance: Constructed with UL2725 certified wire, ensuring safety, reliability, and meeting North American import requirements.
• Superior Dual-Layer Protection: Features an Aluminum Foil + Tinned Copper Braid shield to block EMI/RFI, maintaining signal purity for 480Mbps data speeds.
• 5-Core Precision Engineering: 5-wire configuration (including drain/ground) designed for professional PCB internal connections and sensitive electronic modules.
• Industrial Durability: VW-1 Flame Retardant rating and high heat resistance (usually up to 30V/80°C), making it suitable for demanding environments.
| Feature | Specification |
| Wire Standard | UL2725 (E-File Number available upon request) |
| Number of Cores | 5 Wires (Full Copper Conductors) |
| Shielding | Double Shielded (Al-Foil + Tinned Copper Braid) |
| Flammability Rating | UL VW-1 / CSA FT1 |
| Connector A | USB 2.0 Type A Male (Nickel/Gold Plated) |

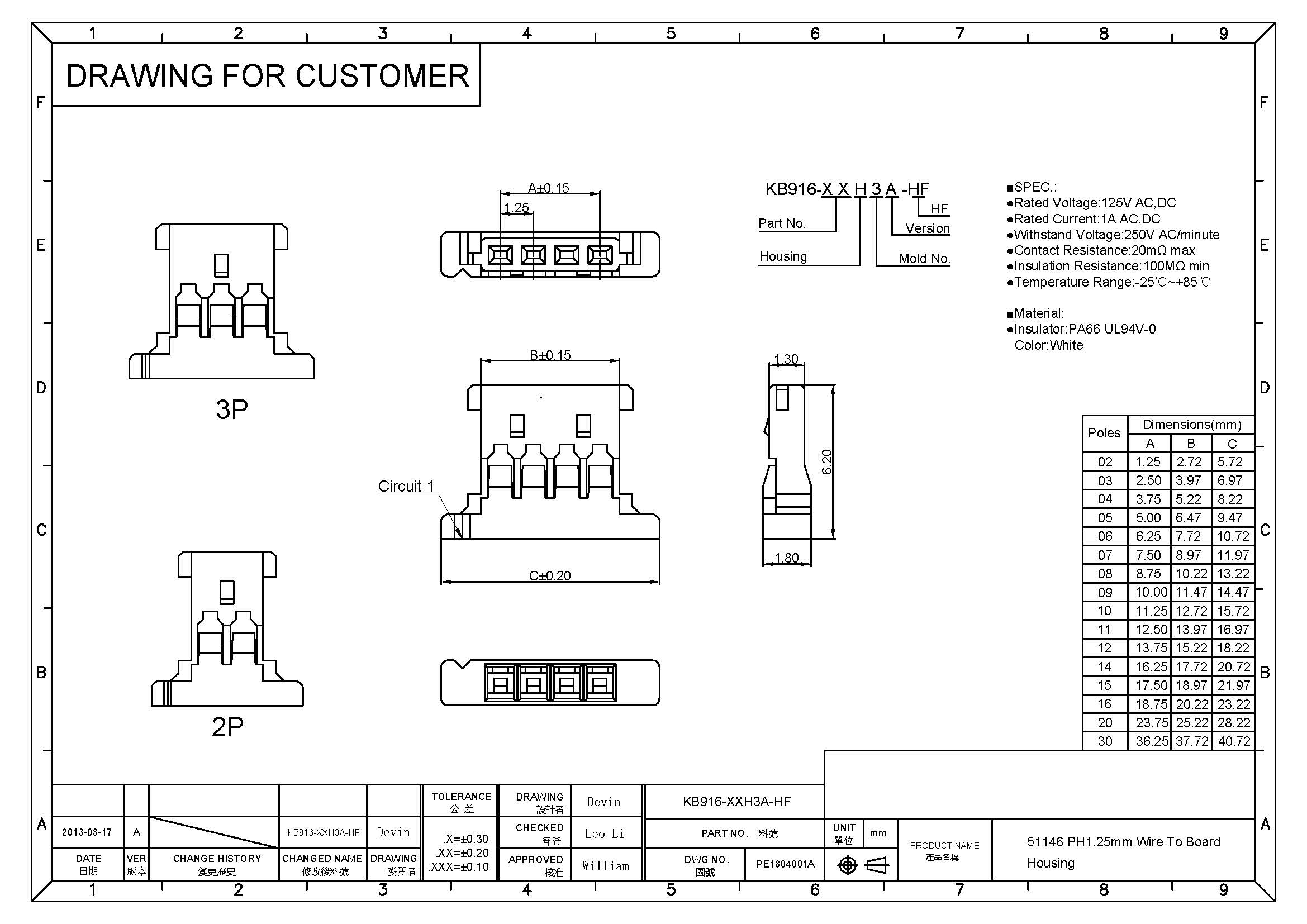

| Connector B | 1.25mm Pitch Ultra-Thin 5-Pin Housing |
| Voltage/Temp Rating | 30V / 80°C |
| Wiring Definition | Red(VCC), White(D-), Green(D+), Black(GND), +Drain/Shield |
| Compliance | UL, RoHS, REACH |
Customization Available:
For custom lengths or bulk pricing, please email us:
mailto:nick.xu@lyd123.com
