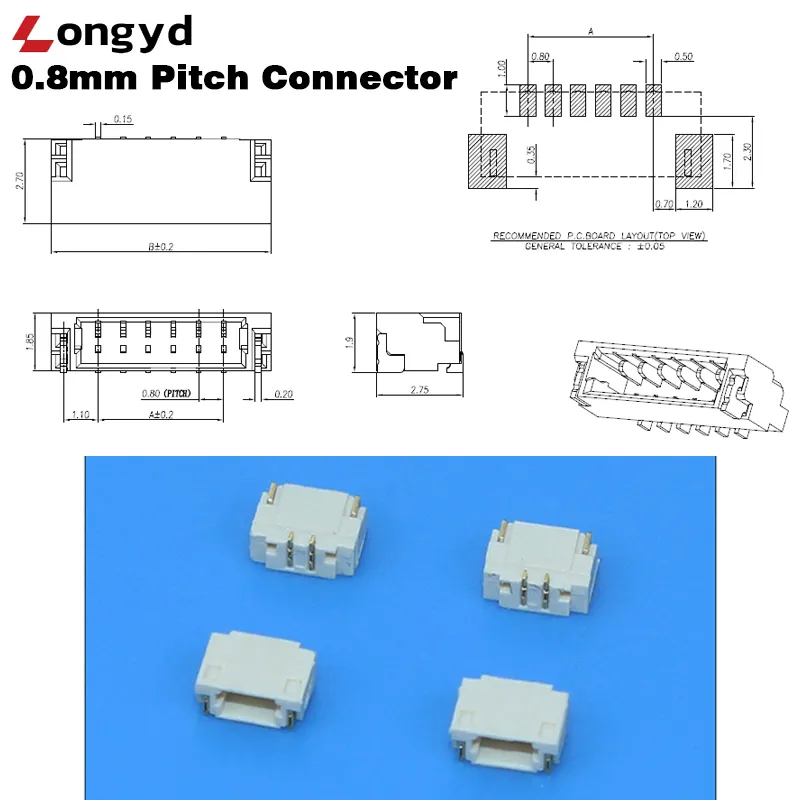

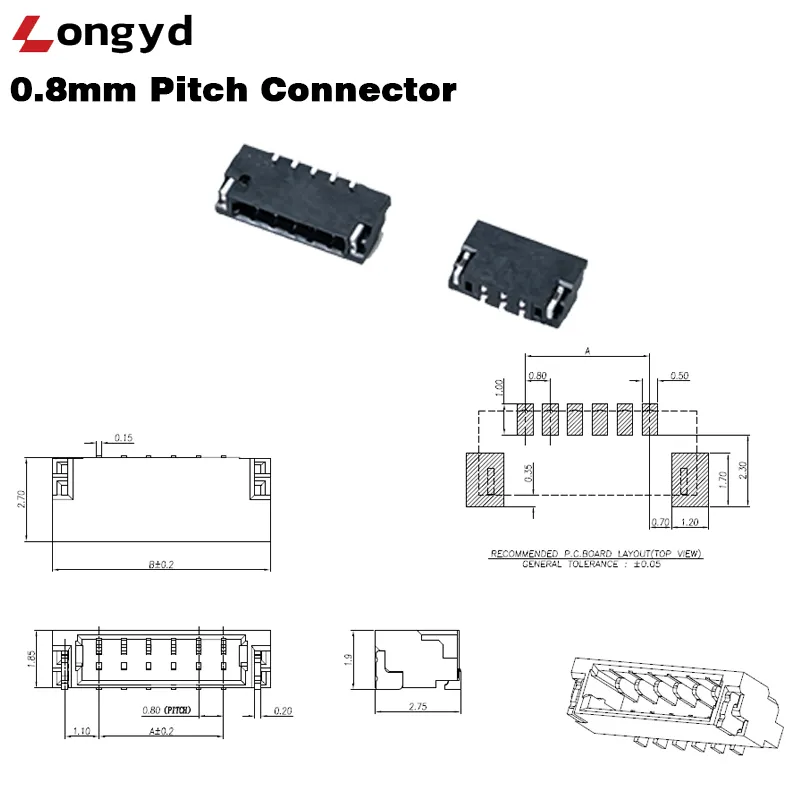

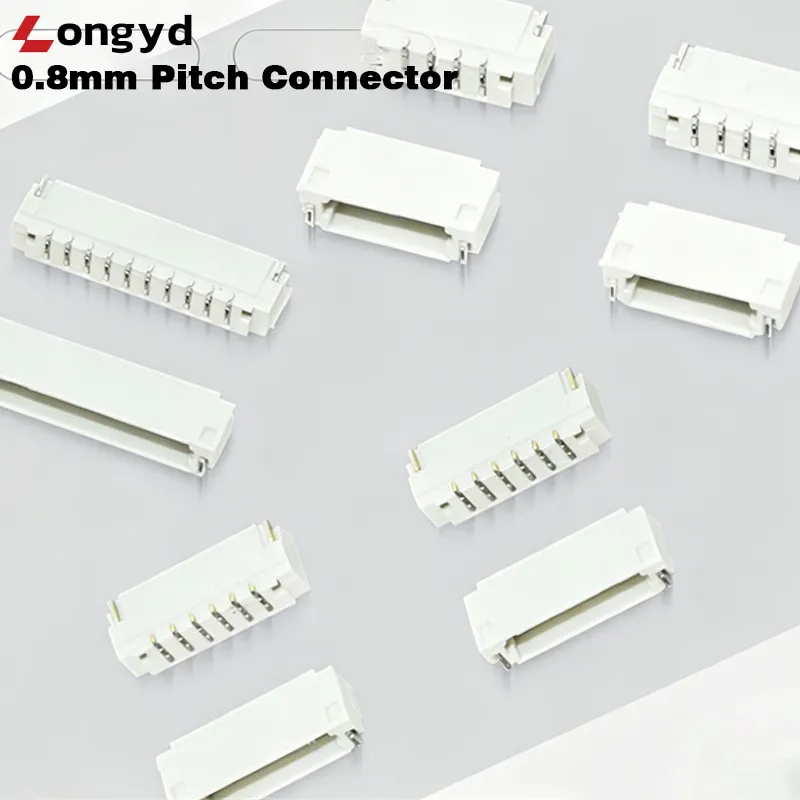

0.8mm Pitch SMT Wafer Connector
Our 0.8mm Pitch SMT PCB Headers are designed to meet the rigorous demands of modern, compact electronic devices. Whether you are designing for a sleek consumer gadget or a complex industrial module, these connectors provide a stable and high-performance interface for your wire-to-board connections.
Dual Orientation for Maximum Design Flexibility
To accommodate different PCB layouts, we offer two standard mounting styles:
Vertical SMT Type (Top Entry): Ideal for vertical stacking and saving horizontal board space.
Right-Angle SMT Type (Side Entry/Horizontal): Perfect for low-profile designs where height is strictly limited.
Technical Specifications
| Feature | Specification |
| Pitch | 0.8mm |
| Number of Circuits | 2P – 20P |
| Mounting Type | Surface Mount (SMT) |
| Current Rating | 0.5A – 1.0A AC/DC |
| Voltage Rating | 30V – 50V AC/DC |
| Insulation Material | LCP (UL94V-0), Halogen-free |
| Contact Material | Phosphor Bronze |
| Soldering Process | Reflow Soldering Compatible (Peak 260°C) |
Key Product Highlights
Reflow Optimized: Built with high-temperature LCP housing, our connectors withstand the heat of lead-free reflow soldering processes without deformation.
Ultra-Low Profile: The 0.8mm pitch significantly reduces the PCB footprint, enabling higher component density.
Secure Retention: Features precision-engineered solder tabs (nails) for enhanced mechanical strength and PCB retention after soldering.
Automated Assembly: Compatible with standard pick-and-place machines; supplied in Tape and Reel packaging to ensure efficient mass production.
Ideal Applications
Medical Devices: Handheld diagnostic tools and wearable health monitors.
Smart Home: Micro sensors, smart doorbells, and IoT modules.
Industrial Tech: High-speed camera modules, micro-controllers, and drone PCBs.
Displays: LED backlight units and OLED driver boards.
Why Partner With Us?
As a specialist in high-end customized interconnect solutions, we offer:
Technical Support: 2D/3D CAD files available upon request for your PCB design phase.
Quality Assurance: 100% inspection to ensure coplanarity and soldering reliability.
Fast Delivery: Optimized supply chain for both samples and high-volume OEM orders.
Customization Available:
For custom lengths or bulk pricing, please email us:
nick.xu@lyd123.com
